1999 Yamaha XVS1100(L) Dragstar Service & Repair Manual PDF (P/N 5EL1-AE1)

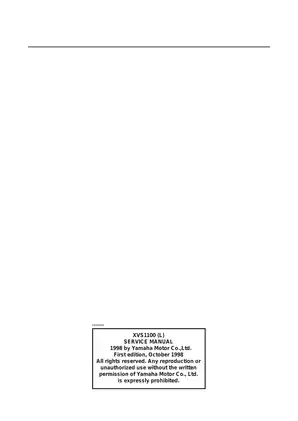

Yamaha's 1999 XVS1100(L) Dragstar service manual, first edition October 1998, carries manual code 5EL1-AE1. It covers 5EL1 (Europe), 5EL2 (Germany, Austria and Finland), and 5EL3 (Australia) configurations.

Text search and diagram navigation: The main chapters and wiring legends have searchable text, with bookmarks for all eight chapters and both regional wiring diagrams. Cover text and lettering drawn into diagrams are not searchable. Small wiring labels are readable when enlarged.

• Engine repair: Engine removal, cylinder-head and valve work, camshaft timing, piston inspection, crankshaft repair, and oil-pump checks.

• Clutch and transmission: Wet-clutch inspection and reassembly, starter-clutch testing and replacement, and checks for transmission gears, shift forks, and the shift drum.

• Carburetion and AIS: Dual Mikuni carburetor overhaul and synchronization, fuel-level adjustment, Throttle Position Sensor (TPS) testing, and Air Induction System inspection.

• Shaft drive: Middle gear alignment, universal-joint service, final-drive overhaul, and ring gear backlash adjustment.

• Brakes and chassis: Hydraulic brake bleeding, master-cylinder and caliper repair, telescopic front fork overhaul, steering-head bearings, and swingarm service.

• Electrical diagnosis: Digital T.C.I. ignition, A.C. magneto charging, starting interlocks, fuel pump and carburetor heater tests, plus TPS and speed-sensor self-diagnosis.

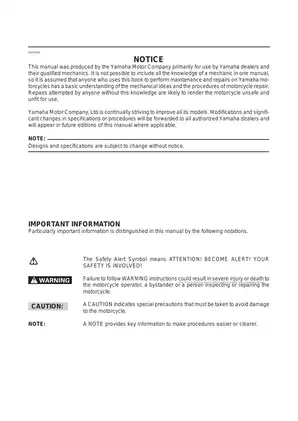

Written primarily for Yamaha dealers and their qualified mechanics, this manual assumes familiarity with motorcycle mechanics and repair procedures.

Engine Overhaul and Assembly Data

The air-cooled SOHC V-twin sections cover valve-guide replacement, valve-seat work, connecting-rod bearing selection, and crankcase assembly. Front and rear cylinder timing references are distinguished, alongside intake and exhaust valve-clearance data.

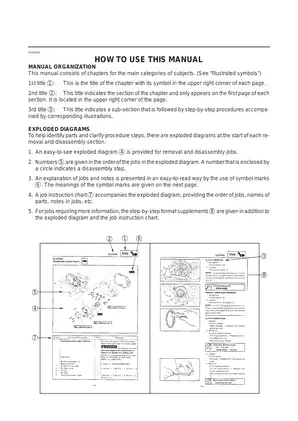

For the five-speed transmission, inspection includes shaft runout, gear dogs, and shift-fork movement. Exploded views and job instruction charts identify parts and assembly order.

The crankshaft section warns that mixing up connecting-rod bearings changes oil clearances and can damage the engine. Component torque tables, fluid capacities, wear limits, lubrication diagrams, and metric-to-imperial conversion tables support the overhaul sections.

Mikuni Carburetors and Air Induction

The Mikuni BSR37 material separates jet, needle-valve, diaphragm, and coasting-enricher inspection. Fuel-level measurements and TPS resistance checks support carburetor setup, while AIS diagrams show air cut-off valve operation and reed-valve connections.

Yamaha's special-tool list identifies the vacuum gauge (90890-03094) for synchronization and fuel level gauge (90890-01312) for float-chamber checks.

Middle Gear and Final Drive

Middle-drive and final-drive sections give shim-selection calculations and bearing service procedures. The shaft-drive troubleshooting chart links rumble, whine, and clunk symptoms to the assemblies that need inspection.

The universal-joint instructions warn that hammering the drive yoke can distort the collapsible collar and alter shaft turning resistance.

Brakes, Front Forks and Rear Suspension

Brake coverage includes piston and seal inspection, disc runout checks, and hose-routing references. Front fork exploded views accompany bushing and oil-seal replacement procedures, with fork-oil quantity and level specifications.

The rear suspension material covers shock removal, inspection, and replacement, plus swingarm bearings and linkage. It does not describe rebuilding the pressurized shock internally.

Working safely with the correct lifting equipment and protective gear is essential when servicing heavy components and pressurized brake or suspension systems.

Electrical Fault Tracing

The electrical chapter provides separate Ignition System, Electric Starting System, Fuel Pump System, and Carburetor Heater System circuit diagrams. Charging-system tests cover the stator coil and rectifier/regulator, with connector views and electrical test specifications.

The starting-circuit explanation and relay, diode, neutral, clutch, and sidestand-switch tests help trace a no-crank fault to an interlock, wiring problem, or starter component before choosing a repair.

Self-diagnosis covers engine-warning-light fault codes for the TPS and speed sensor. Europe and Australia wiring diagrams distinguish their lighting and switch arrangements, including the European auxiliary light and optional alarm circuit.

Separate cable-routing drawings show harness and hose placement around the frame and engine.

Printable PDF and Included Diagram Pages

One printable, English-language 355-page PDF: 352 pages of manual content, including the front cover, introductory pages, contents pages, and chapter dividers; two regional wiring diagram pages; and one additional Cable Routing page. All of these pages are included in the stated total.
