2002–2005 Honda VTX1800C Factory Service Manual PDF

Honda factory service documentation for the 2002–2005 VTX1800C, with a March 2001 issue date.

Bookmarks and Wiring Diagram Detail

Section access and small labels: Embedded bookmarks navigate all 22 chapters. PDF text search is not available. Small wiring labels require zooming, and the pin numbering in the ECU test-harness views is faint.

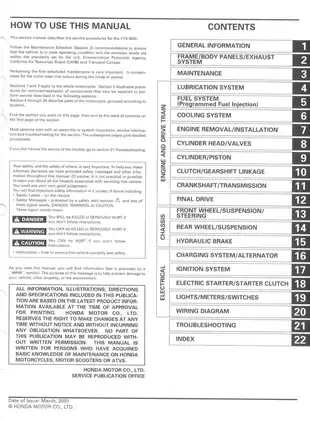

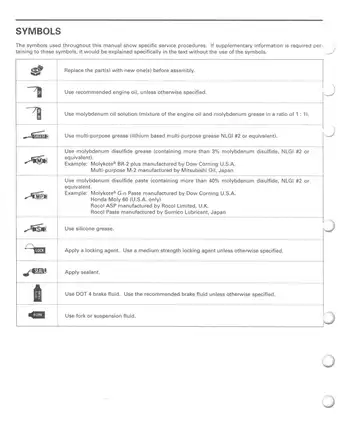

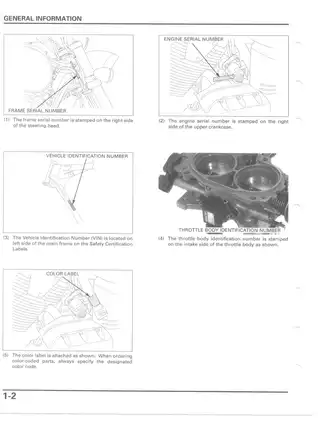

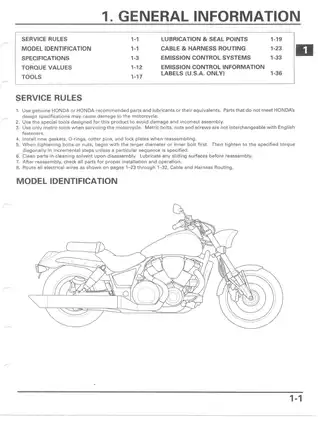

One printable, English-language PDF contains 466 pages, including three front-matter pages: the cover, manual-use guide with contents, and symbol key.

PGM-FI Diagnosis and Drivetrain Repair

These selected service topics provide a preview of the contents. Other examples include headlight aim adjustment and fuel-reserve sensor testing.

• Engine repair: Engine removal and installation, valve-clearance adjustment, cylinder-head disassembly, valve-guide replacement, and cylinder/piston inspection.

• PGM-FI diagnosis: Self-diagnosis, MIL failure-code charts, fuel-pressure and flow tests, injector service, throttle-body removal, and air-screw synchronization.

• Clutch and final drive: Hydraulic-clutch bleeding, master/slave-cylinder service, clutch inspection, gearshift-linkage repair, and final-drive gear adjustment.

• Suspension and steering: Separate left/right fork procedures, wheel-bearing replacement, steering-head bearing service, shock-absorber inspection, and swingarm service.

• Linked Brake System: Brake-fluid replacement and bleeding, caliper and master-cylinder overhaul, disc inspection, and PCV (Proportional Control Valve) service.

• Electrical troubleshooting: Alternator, charging-system, ignition, electric-starter and starter-clutch diagnosis, supported by wiring diagrams and circuit tests.

• Cooling and lubrication: Radiator pressure testing, thermostat inspection, coolant replacement, water-pump replacement, oil-pressure checks, and oil-pump inspection.

Written for readers with basic Honda maintenance knowledge; the diagnostic and overhaul sections also call for measuring equipment and model-specific service tools.

Engine Access and Internal Inspection

The component specifications, torque values and troubleshooting charts provide baseline data for shop diagnostics and teardowns. The engine-access guide distinguishes work possible in the frame from repairs requiring engine removal, helping you plan lifting equipment and disassembly.

Frame/body-panel and exhaust-system removal procedures support access to the assemblies being serviced.

Cylinder-head, cylinder/piston and internal transmission work extends to camshaft positioning, valve-seat inspection/refacing, crankshaft and connecting-rod checks, and bearing selection. Gear-ratio tables accompany the transmission specifications. Transmission service includes shift-fork and shift-drum inspection; the crankcase must be separated for these internal repairs.

Exploded assembly views support reassembly. The crankshaft section warns that incorrectly located connecting-rod bearings can block oil holes and lead to engine seizure.

Fuel Injection and Regional Emissions Equipment

PGM-FI troubleshooting connects MIL blink codes with sensor, injector and wiring checks. Peak-voltage inspection procedures and test-harness terminal layouts support electrical fault isolation; the specified ECU test harness is 07YMZ-0010100, with two required.

Fuel-pressure and flow tests cover the pump, filter, return line and pressure regulator. The throttle-body section explains why disturbing factory-painted screws can cause throttle and idle synchronization failure.

California-specific coverage includes EVAP canister inspection, purge-control valve testing, and oxygen-sensor/heater diagnosis. Vacuum-hose routing diagrams identify the emissions connections, while cable and harness routing drawings show their placement around the engine and chassis.

Forks, Brakes and Shaft Drive

Step-by-step procedures cover fork overhaul and Linked Brake System bleeding. The fork sections distinguish the two leg assemblies and their fluid specifications; brake coverage separates the front circuit from the rear linked circuit.

Final-drive repair includes backlash measurement, gear-contact checks and shim selection. Rear suspension coverage includes shock removal, inspection and assembly replacement, together with swingarm pivot-bearing service.

Charging, Ignition and Cooling Tests

Electrical chapters cover charging voltage, current leakage, regulator/rectifier circuits, ignition timing, starter-relay operation and starter-motor inspection. The full wiring diagram complements system-specific circuit drawings.

Cooling-system procedures include radiator-cap testing, thermostat checks and air bleeding. Water-pump seal leakage is addressed by replacing the pump assembly.

Fuel-system and brake work requires the precautions, tools and full procedures specified in the manual.

Preview of Valve, Oil and Ignition Service Data

Valve-clearance specifications are 0.13 ± 0.02 mm intake and 0.32 ± 0.02 mm exhaust, with the engine cold, below 35°C (95°F).

Engine-oil capacity is listed as 3.5 liters after draining and 3.7 liters after draining and filter replacement.

The maintenance section specifies an idle speed of 800 ± 100 rpm with the engine warmed up. The ignition specifications list a spark plug gap of 1.0–1.1 mm.
