Honda VTX1800C / VTX1800R 2002–2004 Parts & Service Manual Set (P/N 14MCH2E1)

The catalog supports replacement-part identification, while the service manual supplies workshop procedures. Their model scopes differ: the repair instructions describe VTX1800R service, and the VTX1800C publication is a parts catalog.

PDF Search, Bookmarks, and Diagram Detail

Search and navigation: Neither PDF supports text search. The parts catalog has descriptive section bookmarks; the service manual mainly uses page-image filenames and includes several unusable bookmark entries. Small labels in the full wiring diagram remain soft and partly difficult to read when enlarged.

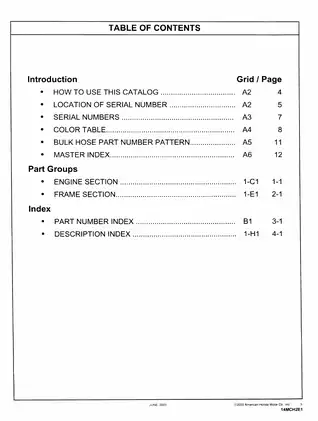

The ZIP download contains two printable English PDFs totaling 627 pages. That total already includes six cover, introductory, safety, symbol, and supplemental pages in the service file, plus the catalog's 11 opening cover and reference pages.

Engine Overhaul, PGM-FI Diagnosis, and Parts Lookup

The following selected coverage highlights outline the main workshop and parts-reference material. Other included topics cover exhaust-system removal and fuel-reserve sensor testing.

• Engine repair: Engine removal and installation, cylinder-head and camshaft service, valve repair, piston inspection, crankcase separation, crankshaft inspection, transmission repair, and output-gear setup.

• PGM-FI diagnosis: MIL failure-code charts, troubleshooting flowcharts, injector and sensor tests, fuel-pump service, and air-screw synchronization.

• Clutch and final drive: Hydraulic bleeding, clutch master/slave-cylinder repair, clutch inspection, final-drive bearing replacement, gear-contact checks, and backlash adjustment.

• Cooling system: Radiator-cap and system pressure tests, coolant replacement and bleeding, thermostat inspection, radiator/fan service, and water-pump replacement.

• Chassis and brakes: Fork, steering-stem, wheel-bearing, shock-absorber, and swingarm service, plus brake bleeding and caliper/master-cylinder overhaul.

• Electrical troubleshooting: Charging and ignition tests, starter-motor and starter-clutch repair, lights/meters/switches diagnosis, cable-and-harness routing views, and a full wiring diagram.

• Parts identification: 62 illustrated parts groups—22 engine and 40 frame/body/electrical groups—with application data, quantities, Honda part numbers, descriptions, and Honda Code references.

Honda identifies the service and repair information as intended for qualified professional technicians; the procedures assume basic Honda motorcycle maintenance knowledge, appropriate shop tools, and dedicated test equipment.

Engine Disassembly and Internal Repair

The service manual moves from scheduled maintenance to bench-level repair, with step-by-step procedures for cylinder-head disassembly, valve-guide replacement, valve-seat refacing, piston-ring installation, and crankcase reassembly. Connecting-rod bearing selection uses factory code tables and clearance checks.

It distinguishes work requiring engine removal from throttle-body, water-pump, clutch/gearshift-linkage, alternator, starter-clutch, and starter-motor service that can be performed with the engine in the frame. This distinction helps plan disassembly before work begins.

Incorrectly positioned connecting-rod bearing inserts can block oil holes, causing insufficient lubrication and eventual engine seizure.

Fuel Injection and Electrical Test Information

PGM-FI diagnosis includes BARO/MAP, IAT, ECT, TP, bank-angle, and cam-pulse sensor checks, together with ECM connector testing. PAIR controls are covered; O2-sensor and EVAP-purge procedures are identified for California-type models.

The PGM-FI system diagram and test-harness terminal layout support the diagnostic flowcharts. Other reference graphics include the lubrication-system oil-flow schematic, cooling-system layout, cable-and-harness routing views, hydraulic-brake assembly views, and the full electrical wiring diagram.

Factory tool callouts include fuel-pressure gauge 07406-004000A, vacuum-gauge set 07LMJ-001000A, and ECU test harness 07YMZ-0010100, with two harnesses required for the illustrated connection.

The throttle-body cautions explain how carburetor cleaner can damage the molybdenum coating and how disturbing white-painted factory bolts or screws can cause throttle-valve synchronization failure.

Final Drive, Suspension, and Hydraulic Brakes

Final-drive procedures cover pinion and ring-gear inspection, shim selection, bearing preload, and gear-contact assessment after component replacement. The output-gear section separately addresses its contact pattern and backlash.

Fork instructions distinguish right- and left-leg fluid specifications and identify fork-seal driver 07KMD-KZ30100. Brake material includes linked-circuit bleeding and proportional control valve removal and installation.

Fuel-pressure, hydraulic-brake, engine-removal, and lifted-motorcycle work require the training and safety equipment specified by Honda.

VTX1800C Replacement-Part Selection

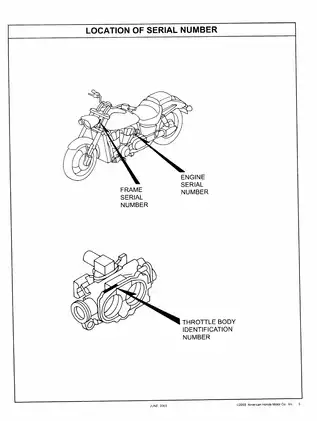

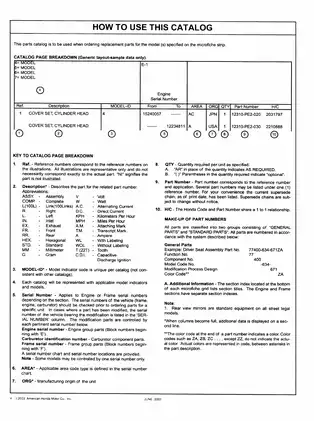

The catalog's application columns distinguish model year, area code, and engine/frame serial applicability before a part number is selected. All six applications in its serial chart list throttle-body identification GQ42A A.

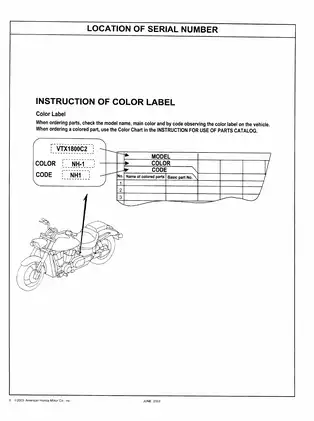

Year-specific color tables cross-reference original color codes and part-number suffixes for fuel tanks, fenders, side and top covers, stripes, and marks. The bulk-hose numbering guide, part-number index, and description index support lookup across the illustrated assemblies.

The service manual also supplies component torque tables, fluid capacities, pressure-test data, inspection limits, final-drive measurements, and electrical test specifications alongside its repair procedures.

Examples of Fuel-System and Thermostat Test Data

For VTX1800R PGM-FI diagnosis, the service data specifies fuel pressure of 343 kPa (50 psi) at idle and fuel-injector resistance of 13.4–14.2 ohms at 20°C (68°F).

The cooling-system inspection section specifies that the thermostat begins opening at 80–84°C (176–183°F). These examples show the operating conditions and component-specific reference values supplied with the test procedures.
