2002–2004 Honda VTX1800C Service & Repair Manual PDF (P/N 61300-MCV-000)

The 2002–2004 Honda VTX1800C service manual covers the liquid-cooled 1,795 cc V-twin engine and PGM-FI system. The publication carries a March 2001 issue date and distinguishes U.S. 49-state, California, and Canadian specifications.

This 466-page English PDF reproduces scanned manual pages and has no searchable text layer.

• PGM-FI diagnosis: MIL code troubleshooting, fuel pressure and delivery tests, injector checks, and throttle-body service with air-screw synchronization.

• Internal engine repair: Engine removal and installation, valve-train inspection, cylinder and piston service, crankshaft work, and transmission disassembly.

• Clutch and shaft drive: Hydraulic clutch service, output-gear adjustment, final-drive overhaul, and gear backlash and tooth-contact checks.

• Chassis and linked brakes: Separate fork-leg procedures, steering and swingarm bearing service, brake bleeding, and master-cylinder and caliper overhaul.

• Cooling and lubrication: Cooling-system pressure testing, thermostat inspection, water-pump replacement, oil-pressure testing, and oil-pump inspection.

• Electrical troubleshooting: Charging and ignition tests, starter-motor repair, interlock diagnosis, and model-specific wiring diagrams.

Honda wrote this manual for readers with basic knowledge of maintaining Honda motorcycles; advanced repair sections call for the specified tools and measuring equipment.

PGM-FI Diagnostics and Emissions Variants

The fuel-system chapter pairs MIL troubleshooting charts with a System Diagram and Test Harness Terminal Layout. These references help distinguish sensor faults from connector or wiring problems before an ECM replacement is considered.

Electrical checks include engine coolant temperature sensor resistance tests and injector circuit diagnosis. California-specific sections address the heated oxygen sensor and evaporative-emission controls. The ECM procedures specify two test harnesses, P/N 07YMZ-0010100.

Engine Repair and Service Specifications

Maintenance schedules, engine-oil capacity charts, fluid specifications, and cable routing sit alongside component-specific torque tables and wear limits. Engine inspection data cover crankshaft main-bearing oil clearance and cylinder head warpage, with assembly torque references for cylinder head nuts and the rear axle nut.

Repair coverage extends to cam timing, valve-guide replacement, valve-seat refacing, and piston-ring inspection. Cooling and lubrication sections distinguish radiator/engine and reserve-tank capacities, document dry-sump oil-pump inspection, and specify water-pump assembly replacement.

The cooling chapter warns that silicate-based coolant can wear water-pump seals or block radiator passages.

Hydraulic Clutch and Shaft Drive

Clutch coverage includes master- and slave-cylinder service, friction-disc inspection, and plate replacement. The manual distinguishes in-frame clutch work from transmission repairs that require crankcase separation.

Output-gear adjustments cover backlash and shim selection; final-drive overhaul adds bearing preload and gear-tooth contact-pattern checks. Drive-shaft and universal-joint removal and inspection are also covered.

Forks, Chassis and Linked Brakes

Separate Right Fork Assembly and Left Fork Assembly views reflect the different internal components of the two fork legs. Steering-bearing preload checks and swingarm-bearing replacement are covered; rear-shock service addresses removal, inspection, and replacement of the shock assembly.

The Brake Fluid Line diagram identifies the linked hydraulic circuits. Brake procedures distinguish the front-lever circuit from the rear-pedal circuit, which operates front and rear brakes, and cover the proportional control valve.

Observe standard shop safety protocols and wear appropriate personal protective equipment when lifting the motorcycle and working on its fuel or brake systems.

Charging, Ignition and Starter Circuits

Charging-system troubleshooting separates alternator, regulator/rectifier, and battery checks. Ignition coverage includes peak-voltage testing and pulse-generator diagnosis, while starter service covers the motor and starter clutch. The full Wiring Diagram supplements the component-level circuit drawings.

ECM handling cautions explain how disconnecting powered connectors can create voltage spikes and damage the module.

PDF Navigation and Page Breakdown

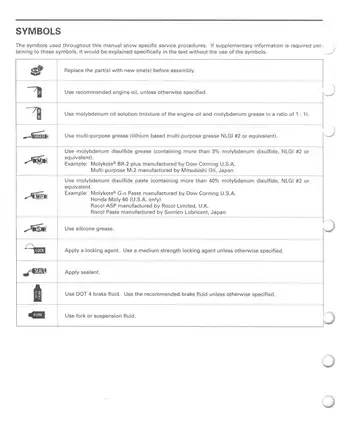

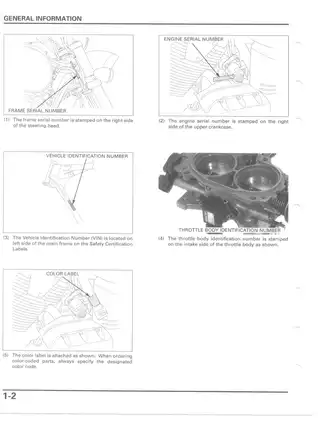

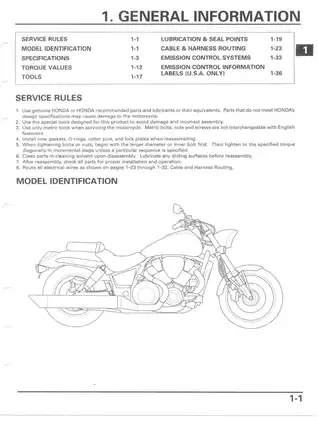

The 466-page total includes one cover page, two introductory pages covering manual use and symbols, and 463 section, wiring-diagram, and index pages. Embedded bookmarks lead to all 22 numbered sections. Small wire codes and connector labels in the main wiring diagram require zooming for comfortable reading.
