1990–1996 Honda VFR750F Service & Repair Manual (P/N 61MT406)

The Honda VFR750F service manual, P/N 61MT406, covers the 1990–1996 models, with U.S. 49-state, California and Canadian specifications. The February 1994 introduction is supplemented by revised pages dated January 1996.

• Engine repair: Engine removal, cylinder-head disassembly, valve-clearance adjustment, shim selection, camshaft installation, crankcase separation and crankshaft bearing selection.

• Fuel system: Carburetor removal, separation, assembly and pilot-screw adjustment, with model-specific synchronization data and emissions-system hose routing.

• Clutch and transmission: Mechanical clutch assembly, hydraulic clutch master and slave cylinder rebuilding, gearshift linkage service, and mainshaft and countershaft disassembly.

• Cooling and lubrication: Oil-pump disassembly, oil-cooler removal, coolant draining, thermostat and radiator removal, and water-pump assembly replacement.

• Chassis and brakes: Front fork seal replacement, steering-stem service, rear hub and swingarm bearing replacement, suspension linkage service, and brake caliper rebuilding.

• Electrical diagnosis: Charging-system and stator tests, ignition troubleshooting, starter motor and starter clutch service, instrument checks, wiring diagrams and electrical troubleshooting charts.

Honda wrote this manual for readers who already have basic knowledge of maintaining Honda motorcycles.

Model-Specific Procedures and Bodywork

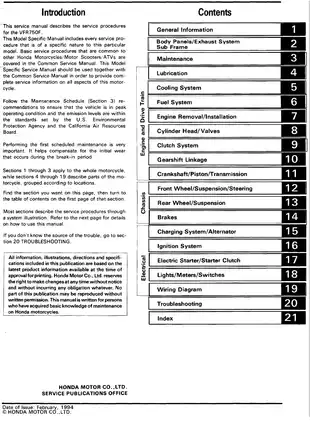

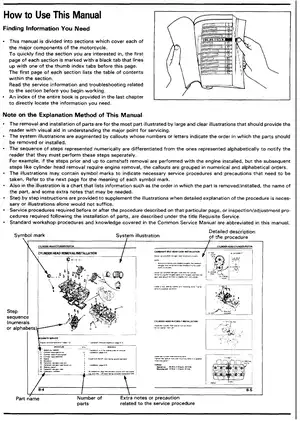

This manual is intended to be used with Honda's separate Common Service Manual, which is not included. Basic workshop procedures and several general inspection methods are abbreviated or referred to that publication.

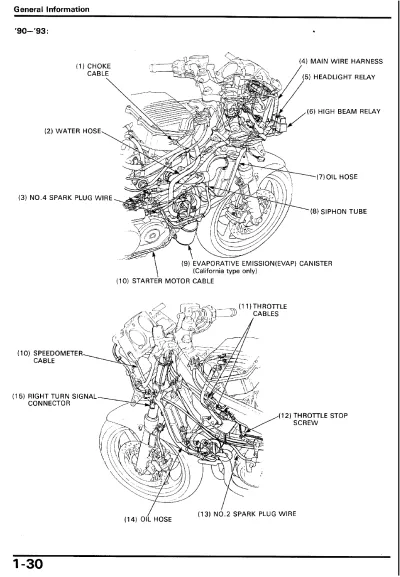

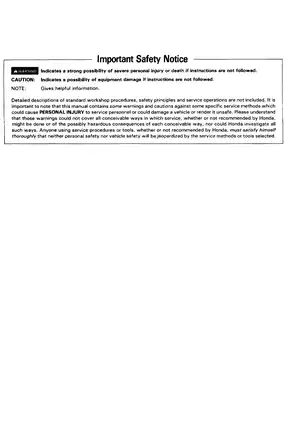

General Information covers VIN identification, emissions labels and Cable & Harness Routing. Bodywork procedures cover the upper, middle and lower fairings, exhaust system, sub-frame and fuel tank. Follow the manual's safety precautions for fuel handling and supporting the motorcycle during disassembly.

Engine, Valve Train and Bearing Selection

The cylinder-head chapter distinguishes front-head removal with the engine in the frame from rear-head removal requiring engine removal. Gear-driven DOHC camshaft timing drawings identify front and rear intake and exhaust positions.

Main-journal and connecting-rod bearing tables match case, crankshaft and rod codes to replacement bearing colors, helping identify the correct inserts before ordering. The crankshaft section warns that incorrectly positioned inserts can block oil holes and cause engine seizure.

Carburetors and Emissions Equipment

Separate carburetor assembly and pilot-screw procedures address early and later configurations. California EVAP equipment and U.S. PAIR components have dedicated routing information, including the Vacuum Hose Routing Diagram.

The synchronization page identifies reference carburetors, vacuum ports, adjusting screws and settings; the detailed synchronization procedure is in the Common Service Manual. Carburetor service cautions explain how compressed air can damage diaphragms left in place during passage cleaning.

Oil and Coolant Circuits

The Lubrication System Diagram and cooling System Flow Pattern show the oil and coolant circuits. Water-pump mechanical-seal damage calls for replacement of the pump assembly. Coolant refilling and oil-pressure testing are referred to the Common Service Manual.

Rear Hub, Suspension and Brake Hydraulics

Rear suspension coverage extends to the driven flange, axle bearing holder and swingarm pivots. Swingarm procedures identify pivot lock nut wrench 07908-4690002, while fork assembly illustrations show seal and bushing placement.

Shock disassembly covers the 1990–1993 units. Later shocks are covered for removal and installation and carry a no-disassembly instruction.

Brake and clutch hydraulic sections show piston, cup and seal arrangements. Their fluid replacement and bleeding procedures are supplied by the separate Common Service Manual.

Ignition, Charging and Starting Faults

Ignition charts distinguish no spark at all plugs, at one ignition group or at a single plug. Charging checks cover current leakage and regulator/rectifier connections; the ignition chapter also documents inspection of the nonadjustable timing system.

The two wiring diagrams distinguish early and later wiring, with connector markings, wire-color codes and switch-continuity charts. Instrument diagnosis includes the later electronic speedometer, fuel gauge, coolant temperature gauge and fan motor switch.

A Sample of Compression, Coolant and Ignition Data

These examples represent a small selection of the manual's service data. The cylinder-head table lists standard compression as 1,373 kPa (199 psi) at 400 rpm.

Cooling capacity is specified separately: 2.3 liters for the radiator and engine, plus 0.3 liter for the reserve tank. The ignition pulse generator inspection specifies 200–400 ohms at 20°C (68°F), measured at its disconnected 4P connector.

PDF Navigation and Page Breakdown

Search, bookmarks and diagram detail: The service pages do not support text search; only the added introductory page has searchable text. Embedded bookmarks link to the contents and all numbered sections, including the index. Small wire-color and connector labels in the two wiring diagrams require zooming.

Supplied as one printable, English-language 306-page PDF. This total already includes the original front and back covers, one added introductory page and 17 blank pages; revised service pages are integrated into the manual.
