Chevrolet Aveo 2004 Service & Owner Manual Set (P/N 04AVEO A)

Use the system-specific service sections for diagnosis and repair, and the owner manuals for controls, routine checks, fluids, and maintenance schedules. Match each section’s printed year, engine, transmission, and equipment to the vehicle.

Transmission overhaul coverage is for D16 and Aisin 81-40LE. Y4M appears only in engine and clutch cross-references. The 2006 automatic-transaxle file is labeled Introduction (2 of 2); its DTC section is an index rather than complete code-specific diagnostic charts.

PDF Search, Bookmarks, and Page Breakdown

Search and circuit detail: Text search is available in both owner manuals, the 2006 automatic-transaxle file, and the 2005 instrument-panel and interior-trim files. The other 45 PDFs have no text search. Embedded bookmarks are present only in the owner manuals. Zoom is needed for small labels in the denser wiring diagrams.

The ZIP contains 50 printable English-language PDFs totaling 5,174 pages, including 208 pages from duplicate copies of the engine-electrical section and code lists. All front matter, indexes, notes, and the four pages of supplementary timing-belt reading are included in that total.

Engine, Driveline, and Vehicle-System Repair

These are selected repair and diagnostic topics. Further material includes rear-window defogger-grid repair and steering-column ignition-lock replacement.

• Engine repair: Symptom-based diagnosis, compression and oil-pressure testing, timing-belt service, cylinder-head reconditioning, and crankshaft, piston, connecting-rod, ring, and bearing inspection.

• Transmission and clutch: D16 manual and Aisin 81-40LE automatic-transaxle repair, hydraulic diagrams, pressure testing, and cable-operated and hydraulic clutch procedures.

• Cooling and exhaust: Cooling-system checks, pressure-cap testing, fan and radiator replacement, restricted-exhaust diagnosis, and exhaust-component replacement.

• Brakes and restraints: ABS fault charts, SIR system checks, disc and drum service, hydraulic bleeding, parking-brake adjustment, and restraint-component replacement.

• Steering and running gear: Rack-and-pinion testing, steering-pump service, strut and control-arm work, wheel-bearing replacement, and drive-axle joint and seal repair.

• Electrical diagnosis: Color system wiring diagrams, connector end views, component locators, starting and charging tests, and lighting-system troubleshooting.

• Body and climate control: Door locks, window regulators, stationary glass, interior trim, instrument-panel components, and manual HVAC diagnosis and repair.

The repair sections suit technicians familiar with powertrain diagnosis, scan tools, and workshop lifting equipment; the owner manuals also support routine owner checks.

Engine Symptoms and Internal Repair

The symptom tables distinguish external oil leaks, cold knock, load-related knock, brief startup noise, hot-idle knock, main- and rod-bearing noise, and base-engine misfire with abnormal valve-train noise. They direct the technician toward relevant inspections before major teardown.

Step-by-step procedures cover intake and exhaust manifolds, timing and rocker-arm covers, oil pans and pumps, engine mounts, and engine removal and installation. Internal inspection addresses bearing clearance and end play, piston-pin and cylinder fit, connecting-rod bend and twist, cap orientation, and camshaft and rocker-gear condition.

Cylinder-head work includes disassembly, cleaning, crack and flatness checks, valve and seat evaluation, guide sizing, spring inspection, valve-stem seals, camshaft installation, and rocker-shaft assembly. Specification tables cover journal dimensions, oil-pump rotors, component clearances, wear limits, and fastener tightening; engine-component descriptions and cleanliness guidance accompany the repair material.

The 1.2L section contains 238 numbered figures. Examples show J21867 at the oil-pressure sensor, valve-clearance measurement, Plastigage checks, valve-seat contact width, EN-46573 guide installation, and the exhaust-manifold bolt-and-nut installation sequence.

1.2L Tools and Assembly Cautions

The tool index lists the 09915-64510 compression-pressure gage, J 21867 (09915-77310) oil-pressure gage, and EN-46569/EN-45718 valve-spring compressor setup. Guide work lists EN-46570 and EN-46597 reamers, the EN-46573 installer, and the EN-48571 remover.

The procedures identify the compressor attachment as EN 47518 (09916-48210) and the guide remover as EN 46571 (09916-44910), differing from the index’s EN numbers.

Engine-handling equipment includes the OTC 1726 (KM-412) overhaul stand, J 28467-B/DW 117 (DW 110-060) support fixture, and J 39580 (DW 010-010) power-pack engine and transaxle support remover/installer.

Reusing the 1.2L crankshaft bearing-cap bolts can cause bolt breakage, bearing failure, and extensive engine damage. The head instructions distinguish intake and exhaust rocker-shaft installation directions and warn that striking the valve-stem-seal tool can damage the seal.

Engine removal and support, compressed valve springs, a hot cooling system, and running-engine oil-pressure testing require proper lifting and support equipment and appropriate shop experience.

Gearboxes, Brakes, and Chassis Variants

Transmission internals: D16 coverage includes input-shaft, mainshaft, case, and differential disassembly and assembly. The Aisin material adds valve-body, oil-pump, and clutch-pack overhaul, speed-sensor and solenoid inspection, and TFT-sensor/harness replacement; the separate troubleshooting file includes line-pressure tests and a hydraulic-failure matrix.

ABS and hydraulics: ABS coverage includes Delphi and Mando procedures plus DBC7/Mando schematics. Brake material includes master-cylinder and booster diagnosis, manual and pressure bleeding, rotor and drum inspection, and caliper, pad, and shoe replacement.

Steering and axles: Steering material includes rack bench testing, bearing-preload adjustment, and system bleeding. Drive-axle procedures distinguish manual and automatic applications, while rear-axle work separates ABS and non-ABS versions.

Electrical Fault Tracing, Bodywork, and HVAC

Circuit diagnosis: Battery parasitic-load tests, charging checks, schematics, and connector views support fault tracing from the wiring diagram to the component under test. Keyless-entry programming covers Tech 2 and Scan 100; instrument-panel removal distinguishes North American and European/non-European arrangements.

HVAC and body service: The HVAC files cover leak and performance testing, compressor shaft-seal and clutch work, evaporator and heater-core replacement, and control-cable adjustment. Body information adds door-window mechanisms, stationary-glass replacement, trim removal, and frame/underbody dimension references.

Code references: Generic and GM trouble-code lists provide definitions, with GM definitions varying by model and year; they are not substitutes for system-specific diagnostic procedures.

Owner Operation and Maintenance

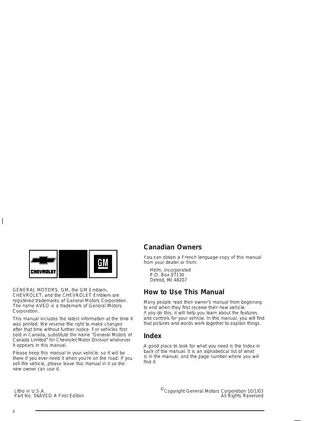

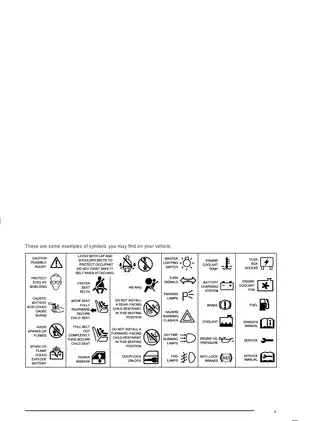

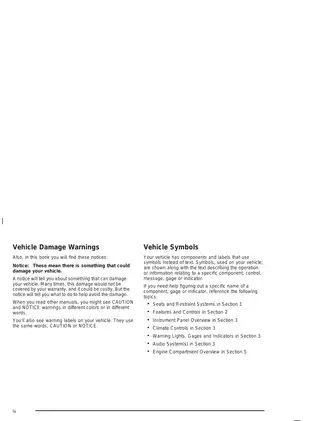

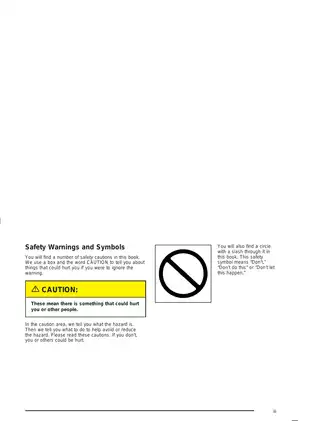

The owner manuals cover restraints and child seats, instruments and controls, driving and towing, underhood checks, recommended fluids, maintenance schedules, and customer-assistance information.

1.2L Cold Valve-Clearance Preview

For the 1.2L engine, cold valve clearance is 0.15 ± 0.02 mm intake and 0.20 ± 0.02 mm exhaust. The specifications also include separate hot-engine clearances and a table identifying which valves are checked at each crankshaft position.
