Honda TRX70 Fourtrax 1986–1987 Official Factory Service Manual

• Coverage: Covers the 1986–1987 Honda TRX70 FourTrax in a 158-page PDF organized into 17 sections, with separate “’86” and “After ’86” callouts for model identification, control and harness routing, rear-brake hardware, ignition equipment, wiring, maintenance data, and carburetor settings.
• Fuel and maintenance systems: Details PB86A carburetor removal, disassembly, inspection, installation, pilot-screw adjustment, and high-altitude setup, along with fuel-tank, air-cleaner, oil-filter rotor, lubrication, drive-chain, brake, clutch, steering, and spark-arrester service.
• Cylinder head and top-end repair: Documents camshaft and cam-chain timing work, cylinder-head disassembly, valve and guide inspection, valve-guide replacement, valve-seat inspection and refacing, cylinder and piston measurement, ring service, and final assembly checks.
• Clutch, oil pump, and transmission repair: Covers centrifugal clutch teardown and inspection, oil-pump clearance checks, gearshift-linkage service, recoil starter and alternator work, crankcase separation, crankshaft inspection, and four-speed transmission disassembly and reassembly.
• Chassis and final drive: Includes tire removal and repair, front and rear drum-brake service, wheel and hub bearings, steering shaft, kingpins, tie rods, rear axle, driven sprocket and dampers, chain cover, and drive-mechanism assembly.
• Electrical diagnosis: Provides separate 1986 and after-1986 wiring diagrams, CDI ignition-system tests, coil and pulse-generator checks, ignition-timing inspection, switch continuity tests, and fault-isolation charts for starting, power, running, and handling complaints.

Model-Year Coverage and Workshop Scope

This Honda service manual is suited to technicians and experienced owners who are comfortable working from metric measurements, factory inspection limits, timing marks, and special-tool callouts. It spans routine maintenance through crankcase-level repair; the presentation assumes practical mechanical knowledge rather than teaching basic tool use.

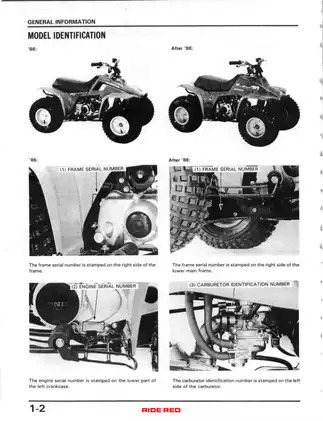

The year split matters. Honda marks differences as “’86” and “After ’86” throughout the manual, including changes to the frame serial-number location, rear-brake pedal and guard arrangement, ignition switch, cable and wire-harness routing, wiring diagram, maintenance schedule, and initial PB86A pilot-screw data. Those callouts help prevent a 1986 procedure or component layout from being applied blindly to a 1987 machine.

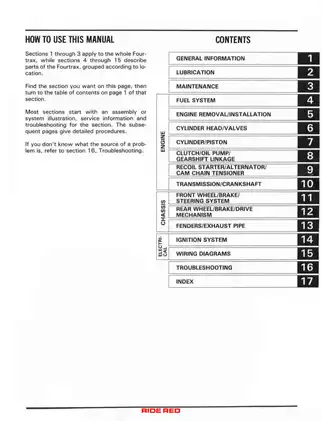

Sections 1 through 3 establish service rules, model identification, torque references, tool requirements, lubrication, and scheduled maintenance. Routine coverage connects fuel and air service with valve, ignition, chain, brake, clutch, steering, and fastener checks. The manual refers pre-ride inspection back to the owner’s manual, so this PDF should not be treated as a replacement for the operator information.

Engine and Drivetrain Repair Depth

The cylinder-head chapter covers the work needed for a real top-end repair: camshaft inspection, valve and guide measurement, guide replacement, seat-contact inspection and refacing, spring checks, assembly, valve timing, and adjustment. Cylinder and piston service can be performed with the engine still in the frame. By contrast, Honda states that transmission and crankshaft service requires engine removal and crankcase separation. The gearbox chapter then follows the mainshaft, countershaft, shift forks, drum, gears, dogs, bushings, seals, and crankshaft through inspection and reassembly.

The clutch section identifies wear checks for discs, plates, springs, center guide, and drive gear, then covers the oil pump and shift mechanism in the same repair sequence. Recoil-starter teardown, flywheel and stator removal, cam-chain tensioner service, and alternator installation are handled in a separate chapter.

Tools, Diagrams, and Diagnostic Data

The factory tool chart gives names, Honda tool numbers, alternatives, and reference pages. Examples include the valve-spring-compressor attachment 07959-KM30100, flywheel puller 07733-0010000, universal bead breaker GN-AH-958-BB1, and digital multitester 07411-0020000. Some ignition adapters are identified as unavailable in the U.S., and the CDI performance test is marked “Except U.S.A.,” an important equipment limitation before electrical repair begins.

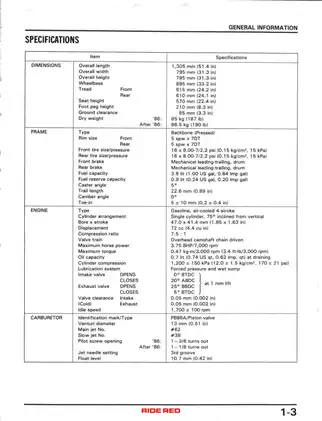

Useful visual references include the engine lubrication-system illustration, cable and harness routing layouts, clutch assembly view, cam-sprocket timing-mark views, and the separate 1986 and after-1986 wiring diagrams. The specification material supplies component torque tables, fluid and lubrication data, standard dimensions, wear and service limits, compression and clearance checks, carburetor adjustment data, and ignition-system test values. Section 16 adds structured troubleshooting charts for hard starting, loss of power, poor idle or low-speed operation, high-speed performance, and poor handling.

Repair Cautions and Safety

The carburetor chapter warns that forcing the pilot screw against its seat will damage the seat. It also identifies the carburetor top as an integral part of the throttle-cable assembly; attempting to separate the two damages the cable. The cylinder section calls out the oil passages feeding the camshaft and rocker arms because blockage can starve and damage those valve-train parts.

For chassis work, the manual treats brake dust as an asbestos hazard and specifies controlled collection instead of compressed-air cleaning. Fuel-system procedures also carry gasoline fire and ventilation warnings.
