Honda Models Covered & Key Technical Specifications

Models & Model Codes: Fit (GE8, VIN positions 4–6, applies to the additional 2009–10 service manual)

Sub-models / Variants: Sport, DX; additional GE8 variants: Fit, Fit Sport, Sport Navi (U.S.); DX, DX-A, LX, Sport (Canada)

Model Year: 2007

GE8 engine: L15A7

GE8 transmissions: SP4M — 5-speed manual; SP5A — 5-speed automatic; MP5A — 5-speed automatic, 2010 Saitama-built models


  • Electrical system voltage: 12 V

  • Battery capacity: 32 Ah/5 HR, 34 Ah/5 HR, or 40 Ah/20 HR (2007 Fit)

  • Wheel alignment (toe-in): Front 0 mm; rear 2.5 mm (2007 Fit)

Honda Manual Features & Selected Content Preview

Publication Pages
2007 Fit Owner's Manual — P/N 31SAA6020 262
2007–08 Fit repair and specification chapters — 77 PDFs, including six duplicate files 2,588
2008 Fit Advanced Diagnostics 563
2008 Fit Electrical Component Locations 108
2008 Fit System Wiring Diagrams 116
2009–10 Fit Service Manual — First Edition 08/2009; U.S. and Canadian specifications 2,209
2009 Fit Owner's Manual — Publication Form No. 31TK6600 352
2009 Fit Navigation System Owner's Manual — P/N 00X31-TK6-8000 149
Trouble Shooting: Basic Procedures — general reference 61
Service Reminder Indicators: Honda — multi-model reference 16

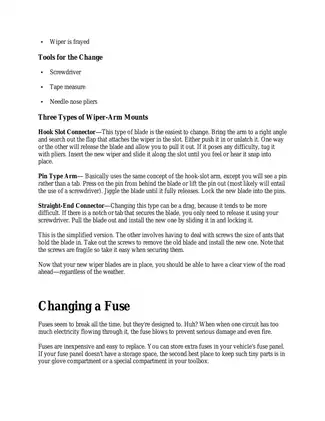

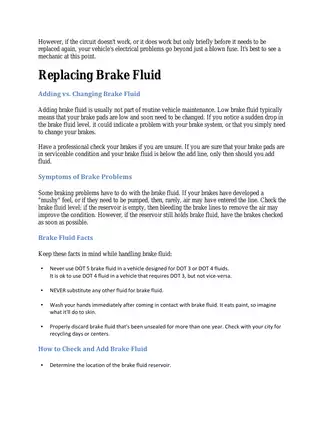

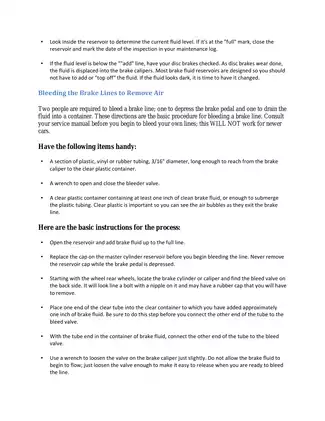

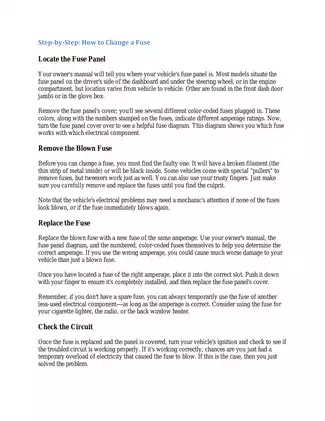

Basic Car Repairs — general supplementary guide 27
Generic OBD-II Trouble Codes 33
Honda OBD-II/MIL code reference 13

The owner's manuals explain normal operation, maintenance, and roadside responses. The service publications add workshop diagnosis and component repair, so an indicator's normal behavior can be checked alongside the relevant fault-finding procedure.

Coverage varies by publication. Match the year, market, transmission, and equipment to the document listed above. The GE8 service manual and the separately labeled 2008 references have their own coverage; the general supplements do not extend model coverage.

Text Search, Section Bookmarks, and File Contents

Finding procedures and diagram details: The 2009–10 service PDF has an OCR text layer and 29 section bookmarks, although some diagram labels are not searchable. The wiring PDF supports caption searches, but its circuit labels are outside the text layer. The generic trouble-code PDF has no text search; the other PDFs have searchable text. Only the 2009–10 service PDF has embedded bookmarks. Small wiring labels require zooming.

ZIP download containing 89 printable PDFs and 6,497 pages, including 98 pages in six duplicate files. All covers, blank pages, notices, and license pages are already included: one cover and two blank index pages in the 2007 owner's manual; one online contents page and one blank page in the 2009 owner's manual; two license pages in the navigation manual; one additional notice page in the wiring PDF; and one final license notice in the service PDF. The service PDF also includes eight dedicated SRS precaution pages.


Engine, Drivetrain, and Electrical Diagnosis

This selected content overview highlights the main workshop and operating sections. Other topics include vehicle storage and navigation voice-command reference.

  • Engine repair: Step-by-step instructions for engine removal, cam-chain installation, cylinder-head service, valve adjustment, piston inspection, crankshaft work, and oil-pump service.

  • Manual and automatic transmissions: Removal, internal disassembly, shaft and clutch inspection, valve-body repair, differential work, hydraulic pressure tests, and shift-control diagnosis.

  • Fuel and emissions: PGM-FI fault tracing, electronic throttle control, VTEC, EGR, EVAP leak checks, fuel-supply testing, and ECM/PCM service procedures.

  • Brakes, steering, and suspension: Brake bleeding, ABS diagnosis, EPS troubleshooting, hub and wheel-bearing replacement, plus TPMS learning and VSA calibration in the later service manual.

  • Body electrical and HVAC: Starting and charging tests, immobilizer and door-lock diagnosis, power-window checks, air-conditioning service, and heater-control troubleshooting.

  • Circuit references: System wiring diagrams, connector and harness indexes, electrical component locations, diagnostic charts, and exploded assembly views.

  • Owner operation and safety: Maintenance Minder guidance, SRS and warning-indicator explanations, child-restraint installation, fluid checks, roadside procedures, and navigation operation.

The workshop sections suit technicians and experienced owners familiar with diagnostic testing and equipped for the documented work; the owner's manuals provide the operating and routine-maintenance reference for drivers.

Internal Repair and Post-Repair Checks

Engine specifications distinguish standard dimensions from service limits, with bearing-selection information, piston and cylinder inspection, and valve-seat work. Exploded views connect assembly details with fastener specifications and special-tool requirements.

The automatic-transmission chapters connect symptoms and DTCs with line-pressure, clutch-pressure, and solenoid tests before internal repair. They also identify an ATF-pump seizure risk from misalignment at the torque-converter housing, rather than treating every shifting complaint as an electrical fault.

For later chassis work, the GE8 manual includes tire-pressure sensor ID memorization using HDS and an ATEQ VT55 trigger tool, plus VSA sensor neutral-position memorization after specified repairs.

HDS Fault Tracing and Circuit Documentation

The fuel-system sections use HDS data-list checks, freeze-data review, circuit tests, and post-repair verification. The 2008 Advanced Diagnostics publication explains monitor enable conditions, malfunction thresholds, and MIL behavior, supporting the distinction between a stored code and a confirmed component fault.

Wiring examples include the Computer Data Lines Circuit, 1.5L Engine Performance Circuit, Electronic Power Steering Circuit, Ground Distribution Circuit, Starting Circuit, and Supplemental Restraints Circuit. Connector views and component-location references support tracing a fault from the diagram to the relevant harness or unit.

Body chapters extend to glass, door alignment, trim, seats, and wiper mechanisms. HVAC procedures cover refrigerant recovery, evacuation, leak testing, and component replacement.

Controls, Restraints, and Roadside Use

The 2007 owner's manual distinguishes Sport fog lights, security equipment, remote transmitter, wheels and tires, and automatic-transmission paddle shifters. Cruise control applies to Sport and Canadian LX models; Canadian DX lock and mirror differences, daytime running lights, and washer-level indication are identified separately.

Interior coverage includes folding rear seats, tailgate and locks, steering-column controls, instrument brightness, rear defogger, windows, mirrors, heating, and both audio layouts. Sport audio adds MP3/WMA and equalizer functions; auxiliary input applies to U.S. Sport and all Canadian models. Radio security-code recovery after battery power loss is also explained.

SRS coverage explains dual-stage, dual-threshold front airbags, side and curtain airbags, OPDS, passenger weight sensors, the driver seat-position sensor, and automatic belt tensioners. LATCH, tether anchors, and lockable belt retractors are illustrated. Cargo forcing the passenger seat rearward or an unsecured floor mat can interfere with the weight-sensing system.

Maintenance includes main and sub codes, display reset, oil and filter replacement, coolant, transmission, brake and clutch fluid checks, bulbs, wipers, tires, and battery inspection. Roadside sections separate no-start checks by starter behavior and cover flat tires, jump starting, overheating, fuses, warning lights, emergency towing, and recovery when stuck.

Honda directs SRS service to an authorized dealer because improper work can cause unintended deployment or leave the restraints inoperative. The owner's manual also warns that DOT 5 brake fluid is incompatible with the braking system and can cause extensive damage.

The navigation manual covers destination entry, route guidance, address-book settings, voice commands, system limitations, and error messages.

Valve-Clearance and Oil-Pressure Examples

For the 2007–08 cylinder-head procedures, intake valve clearance is 0.15–0.19 mm and exhaust clearance is 0.26–0.30 mm, with cylinder-head temperature below 100°F (38°C).

The corresponding lubrication chapter lists minimum oil pressure of 70 kPa (10 psi) at idle and 340 kPa (50 psi) at 3,000 rpm, measured with engine oil at 176°F (80°C).
