Epson WorkForce 1100 / Stylus Office T1110, B1100, T1100 / ME Office 1100 Service Manual (P/N SEIJ09-003)
162 Pages • 1 Printable PDF (English) • Download
Epson Models Covered & Key Technical Specifications
Models: WorkForce 1100, Stylus Office T1110, Stylus Office B1100, Stylus Office T1100, ME Office 1100
-
Print technology: On-demand ink jet
-
Maximum resolution: 5760 (H) x 1440 (V) dpi
-
Connectivity: USB 2.0 (480 Mbps)
-
Printhead: F3-3 Mach Turbo II
-
Nozzle configuration: Black 180 nozzles x 2, Color 59 nozzles x 3
-
Power requirements: 100–120 VAC or 220–240 VAC, 50/60 Hz
-
Weight: 12 kg (excluding ink cartridges)
-
Dimensions: 616 mm (W) x 322 mm (D) x 214 mm (H)
Epson Manual Features & Selected Content Preview

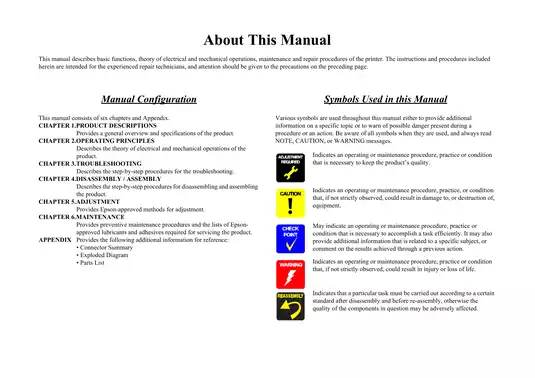

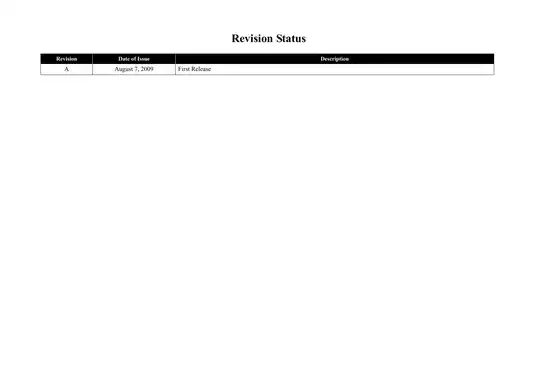

This Epson service manual (P/N SEIJ09-003, Rev. A, first release) covers the WorkForce 1100, Stylus Office T1110, B1100 and T1100, and ME Office 1100 color inkjet printers.
Searchable PDF with Chapter Bookmarks
Text search and diagrams — The body text is searchable, and embedded bookmarks open chapters and subsections. Some connector labels are drawn into the diagrams and require visual lookup. The smallest labels are easier to read when zoomed in.
The download is one printable English PDF with 162 pages, including six preliminary pages and seven chapter and appendix dividers.
Printhead, Paper Feed, and Fault Diagnosis
This selection from the service manual focuses on bench repairs. The manual also explains how to secure the carriage for transport and how media type affects the platen gap.
-
Fault diagnosis — Use LED patterns and Status Monitor 3 (STM3) messages to investigate communication errors, paper jams, multiple-sheet feeds, cartridge recognition faults, print defects, and abnormal noise.
-
Circuit boards and connections — Remove and reinstall the Main Board and Power Supply Board, identify their connections, and check motors and sensor signals.
-
Printhead and ink system — Follow illustrated step-by-step instructions for printhead and cartridge chip reader (CSIC Assy) replacement, Ink System Unit removal, and waste-ink pad service.
-
Carriage and paper feed — Service the carriage shaft, automatic platen-gap assembly (APG Assy), automatic sheet feeder (ASF Assy), feed rollers, carriage motor, encoders, and paper sensors.
-
Post-repair adjustments — Copy EEPROM data, enter the Head ID, adjust the platen gap and paper-feed belt, and use print patterns to check bidirectional alignment and head angle.
-
Maintenance and final checks — Follow head-cleaning and lubrication instructions, reset the applicable protection counter after waste-ink service, and use the Work Completion Checklist before returning the printer.
Epson wrote this manual for experienced repair technicians and specifies that repairs should be performed by Epson-certified technicians.
Error Tables and Connector References
Thirteen troubleshooting tables link the timing and symptoms of a fault to the assembly to check and the suggested remedy. The print-quality checks cover missing dots, mixed colors, banding, ink stains, graininess, and borderless-printing faults.
The operating-principles chapter explains the F3-3 Mach Turbo II printhead and power-on sequence. The Carriage Movement drawing, Motors and Sensors Layout, nozzle-check patterns, and temperature and humidity chart support diagnosis.
The Main Board connector layout and the Connection of the Major Components diagram identify connections for the CA58 MAIN board, C698 PSB/PSE power supply, and relay boards. The electrical references include motor winding resistance and sensor signal states. Epson directs readers to its separate Service Parts Information (SPI) for exploded parts diagrams and the parts list.
Disassembly and Calibration

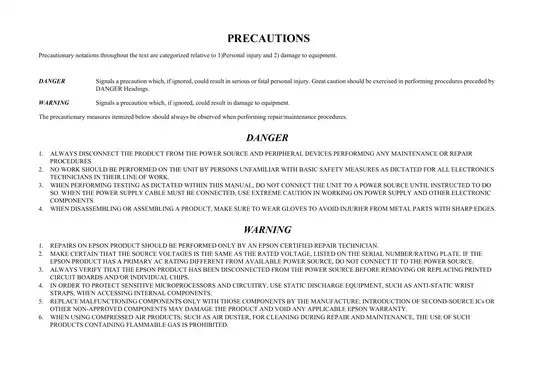

The Disassembly Flowchart shows which assemblies must come off first. Reassembly notes cover chassis screw torque, cable routing, and APG phase alignment. The handling illustrations show where to lift the printer mechanism to avoid bending its frame. Epson also specifies disconnecting power before service and using antistatic protection when handling circuitry.
The Required Adjustment List identifies what to recalibrate after removing or replacing an assembly. For a Main Board replacement, the procedure depends on whether the old EEPROM data can be copied. If the copy fails, Epson also requires replacement of the Waste Ink Tray Assy.
USB ID setup, paper-width and first-dot positioning, BAND printing, paper-feed corrections, and carriage and paper-feed motor heat protection are documented. Software-based routines require Epson’s separate Adjustment Program.
The mechanical procedures specify PG Adjustment Gauge 1276333 and PF Tension Measuring Tool 1294120. The paper-feed roller shaft center support adjustment uses Jig 1304993 with Level Block 1304994.
Waste-Ink Pads and Lubrication
Protection Counter A tracks the Waste Ink Tray Assy, and Counter B tracks the Front Paper Guide Pad Tray. The service procedure pairs replacement of the affected pads with a reset of the corresponding counter.
Illustrated lubrication instructions specify where and how much G-26, G-45, G-71, G-74, and G-75 to apply to the carriage shaft, sheet feeder, and other mechanisms. The Work Completion Checklist covers nozzle output, carriage travel, paper feeding, completed adjustments, and lubrication.
Examples of Motor and Belt-Tension Specifications
At 25°C, the ASF motor winding resistance is 7.0 Ω ± 10% per phase, and the pump motor winding resistance is 10.3 Ω ± 10% per phase.
The paper-feed drive belt has a standard tension of 10.5 ± 2 N. The measurement procedure explains how to verify the setting and avoid overloading the paper-feed motor.
