Kawasaki ZG 1200 Voyager XII 1986–2003 Service Manual (P/N 99924-1064-01, 99924-1089-56)

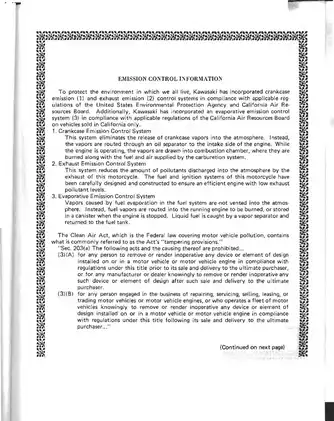

This 492-page PDF combines four Kawasaki factory publications for the Voyager XII ZG1200 platform and its 1,196 cc liquid-cooled DOHC four-cylinder engine. It pairs the 1986 ZG1200-A1 base service manual with the 1987-1998 ZG1200-B1 through B12 supplement, then adds the ZG1200 Audio Systems Operator's Manual and a MICRO-K parts catalog for 1987-1991 B models. Kawasaki states that the service material is designed primarily for trained mechanics in a properly equipped shop; owners with solid mechanical knowledge can also use it for basic maintenance and repair, while overhaul and electrical work assume the specified tools, gauges, and test equipment.

• 492 PDF pages total - ZG1200-A Service Manual, P/N 99924-1064-01: 276 pages; ZG1200-B Service Manual Supplement, P/N 99924-1089-56: 71 pages; Audio Systems Operator's Manual, P/N 99920-1398-12: 26 pages; MICRO-K Parts Catalog for 1987-1991 ZG1200-B1/B2/B3/B4/B5: 119 pages.
• Engine and fuel-system repair covers Keihin CVK30 carburetor synchronization, fuel-level setting, rack disassembly, high-altitude jetting, hydraulic lash-adjuster bleeding and leak-down testing, camshaft timing, compression checks, valve-seat work, and cylinder/piston inspection.
• Bottom-end, transmission, and shaft-drive service includes engine removal, crankcase splitting, crankshaft and connecting-rod inspection, balancer installation, starter-clutch repair, transmission-shaft and shift-fork work, final-drive disassembly, and front bevel-gear adjustment.
• Chassis and hydraulic procedures address clutch master/slave cylinders and bleeding, brake master cylinders and calipers, wheel and bearing service, fork-leg disassembly, rear-shock oil filling, swingarm bearings, steering-stem bearings, and fairing, trunk, and saddlebag removal.
• Electrical diagnosis includes alternator operational tests, IC-igniter troubleshooting, starter and lighting circuits, instrument and sensor checks, plus B-model cruise-control fault isolation, actuator testing, cancel-switch adjustment, and control-unit checks.
• Diagram coverage includes the ZG1200-A1 Main Wiring Diagram, ZG1200-B Main Wiring Diagram, ZG1200-B Audio System Wiring Diagram, Coolant Flow Chart, Engine Oil Flow Chart, and Cruise Control Circuit, backed by exploded views and system-specific test charts.

Model Coverage and Factory Editions

The base manual's model-application page identifies the 1986 ZG1200-A1 and gives both applicable beginning-frame-number sequences. Its title page is marked First Edition (9), June 25, 1997. The supplement covers 1987 ZG1200-B1 through 1998 ZG1200-B12, with a year-by-year beginning frame number for every model code, and is marked Sixth Edition (1), March 24, 1998.

The B publication is explicitly a supplement, not a stand-alone repair manual. It documents B-model differences and sends the reader back to the A manual for unchanged procedures; both publications are included here. Variant-specific material includes the revised B-model throttle and cruise-control cable arrangement, the B2-and-later fuel-pump circuit, B5-and-later clutch spring-plate measurement and selective steel-plate replacement, and the B6-and-later diaphragm-plate configuration.

Repair Data, Tools, and Troubleshooting

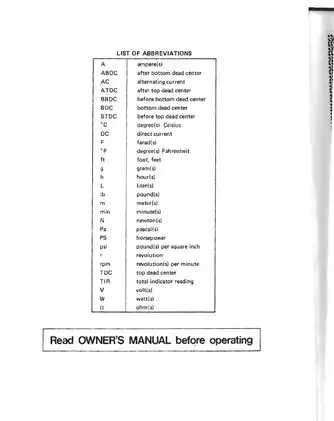

The chapters place adjustment, removal, disassembly, inspection, assembly, and service-limit data together by system. Factory reference material includes tightening sequences and torque tables, fluid and lubricant specifications, wear limits, running clearances, electrical resistance and output tests, gear-backlash and tooth-contact checks, plus cable, hose, and wire-routing views. The clutch and brake chapters specify DOT 4 fluid and include the related bleeding procedures. The appendix adds symptom-based troubleshooting for hard starting, poor running, overheating, clutch and shifting faults, drivetrain noise, braking, suspension, and electrical problems.

Special-tool callouts are tied to the procedures. Examples include the Vacuum Gauge 57001-1198, Fuel Level Gauge 57001-1017, Tappet Bleeder 57001-1200, Pinion Gear Holder 57001-1165, and Fork Oil Seal Driver 57001-1219.

Two factory cautions show the level of repair detail. The carburetor section warns that compressed air applied to an assembled rack can crush the floats and damage the vacuum-piston diaphragms. During cruise-control actuator testing, the supplement warns that leaving the actuator connected to the control unit can damage the control unit.

Added Audio and Parts References

The audio manual explains operation and maintenance of the AM/FM radio, cassette player, optional CB radio, and intercom; it is an operator reference rather than an audio-component repair guide. The included parts catalog supplies exploded engine and chassis illustrations, reference numbers, part numbers, and model/color application grids, but its stated coverage stops at the 1987-1991 ZG1200-B1 through B5. Brake, clutch, wheel, and electrical repairs affect safe operation, so the factory warnings and specified measuring equipment should be followed rather than substitute methods.
