1995–1999 Yamaha YP250 Majesty Factory Service & Repair Manual

The 1995–1999 Yamaha YP250 Majesty service manual, 4UC-AE1, is Yamaha's first edition from January 1996. It covers 4UC 1 (except CH, A) and 4UD1 (for CH, A) configurations.

• Engine repair: Engine removal and reinstallation, cylinder-head overhaul, camshaft and rocker-arm inspection, valve clearance adjustment, and crankcase and crankshaft repair.

• V-belt and transmission: V-belt replacement, primary and secondary sheave disassembly, centrifugal clutch inspection, and reduction-gear removal.

• Carburetion: Carburetor disassembly and assembly, float-height and fuel-level adjustment, auto-choke inspection, and vacuum fuel-pump checks.

• Cooling system: Radiator removal, cap pressure testing, thermostat inspection, water-pump repair, and coolant replacement procedures.

• Brakes and chassis: Front brake hydraulic bleeding, rear drum-brake service, telescopic front-fork rebuilding, steering-head adjustment, and wheel inspection.

• Electrical diagnostics: Ignition, charging and starter-circuit troubleshooting, starter-motor overhaul, switch connection charts, and wiring diagrams.

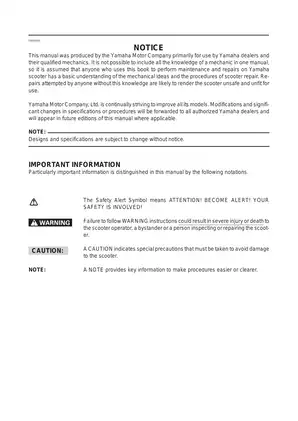

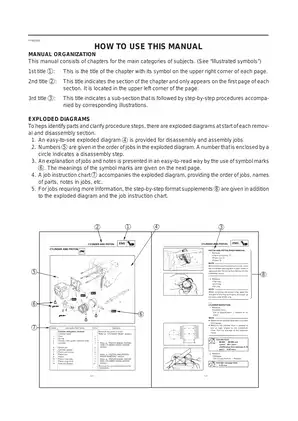

Written primarily for Yamaha dealers and qualified mechanics, this manual assumes an understanding of scooter repair and workshop procedures.

Engine Repair and V-Belt Drive

The liquid-cooled, four-stroke single-cylinder engine section covers piston-to-cylinder fit, piston rings, valve seats and guides, and cam timing. Inspection limits and installation diagrams support the overhaul procedures.

It features detailed parameters for the dry centrifugal automatic clutch, helical primary reduction, and secondary gear reduction assemblies. The sheave sections cover roller weights, sliders, torque-cam grooves and guide pins.

The special-tool list identifies clutch spring compressor 90890-01337, holder arm 90890-01464, and oil-seal guide 90890-01384, helping a shop plan the equipment needed for clutch and secondary-sheave work.

The document also organizes routine maintenance intervals, detailing filter servicing, brake fluid replacement, lubrication and transmission oil changes. Torque specifications for major assemblies are documented in tables alongside fluid capacities, wear limits and adjustment data.

Carburetor and Auto-Choke Diagnosis

Carburetor repair covers the diaphragm piston valve, coasting enricher and accelerator pump. The auto-choke sections explain its temperature-dependent operation and provide both functional checks and electrical troubleshooting.

The general specifications list the TEIKEI carburetor as Y28V-1A/1, while the maintenance table uses Y28V-1B-1, with identification marks 4UC 00 and 4UD 00 (CH, A). Check the carburetor's identification mark when matching the service data.

Radiator and Water-Pump Service

Cooling-system coverage includes thermostat opening checks and radiator-cap pressure testing, with the corresponding specifications. Water-pump instructions address mechanical-seal installation and the risk of damaging the oil-seal lip or dislodging its spring during impeller-shaft installation.

Brake, Fork and Steering Work

Front disc-brake coverage extends to master-cylinder and caliper disassembly and seal replacement. The rear drum-brake section addresses shoe and drum inspection, camshaft alignment and cable adjustment.

Telescopic front-fork repair includes damper-rod removal, seal installation and oil-level setting. Rear shock absorber and swingarm removal procedures are included. Steering procedures cover bearing replacement and warn that a misaligned bearing race can damage the head pipe.

Working on brake hydraulics and the spring-loaded clutch requires strict adherence to factory safety protocols to prevent personal injury.

Electrical Fault Finding and Reference Diagrams

The T.C.I. ignition and starting-system checks cover the sidestand switch, brake switches, starting circuit cut-off relay, pickup coil and ignitor unit. These checks help distinguish an interlock or wiring fault from a starter-motor failure before component replacement.

Reference material includes the Ignition System, Charging System and Auto Choke System circuit diagrams, the Switch Position and Terminal Connection chart, V-belt/sheave exploded views, and the YP250 Wiring Diagram. Lighting, turn signals, the fuel gauge, cooling fan and temperature indication have separate fault-finding sections with electrical test values.

PDF Search, Navigation and Page Count

The service text is searchable; the cover has no text layer. Chapter and wiring-diagram bookmarks work, while two legacy Return links point to catalog files outside this download; small wiring labels require zooming. This printable English 267-page PDF includes one cover, five introductory pages, ten chapter contents pages, fifteen blank or separator pages, and one landscape wiring-diagram sheet; no separate supplements are included.
