Evinrude E-TEC 75/90 HP Outboard Service Manual 2007 (P/N 5007211)

This Evinrude E-TEC service manual, P/N 5007211, covers maintenance, diagnosis and repair of the 2007 75 HP and 90 HP outboards identified in the model box.

PDF Search, Bookmarks and Wiring Detail

Text navigation and diagram detail: The body text is searchable, and embedded bookmarks provide access to service chapters, the index and diagrams. Cover artwork is outside the text search. Small pin and connector numbers in the full engine wiring diagram require zooming to read comfortably.

One printable English PDF contains 344 pages, including two original cover pages and one nearly blank safety divider. The safety section, index, troubleshooting charts and diagram appendices are included in that total.

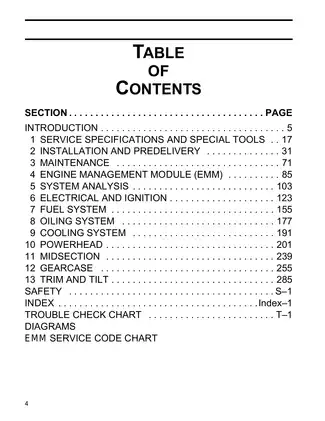

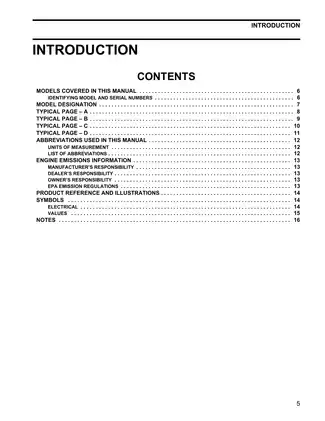

E-TEC Diagnostics and Mechanical Service

These selected service highlights outline part of the manual’s coverage. Other topics include anticorrosion checks and procedures for submerged engines.

• Maintenance and rigging: Inspection schedules, self-winterization, preseason service, outboard mounting, control-cable adjustment, fuel and oil priming, and predelivery checks.

• EMM and electrical diagnosis: Service-code interpretation, static and dynamic tests, sensor checks, ignition and charging tests, TPS calibration, timing verification, and starter servicing.

• Fuel and oil systems: Fuel-pressure and vacuum tests, injector replacement, vapor-separator servicing, oil-flow checks, oil-injection programming, and LOW OIL/NO OIL warning tests.

• Cooling system: Operating-temperature diagnosis, thermostat and pressure-relief-valve servicing, water-flow routing, and water-pump disassembly, inspection and assembly.

• Powerhead repair: Step-by-step removal, disassembly, internal inspection, crankshaft and piston assembly, cylinder-head installation, and checks before returning the engine to service.

• Gearcase overhaul: Pressure and vacuum leak tests, internal disassembly, bearing and seal replacement, driveshaft shimming, shift-rod adjustment, and reassembly.

• Midsection and trim/tilt: Tilt-tube, exhaust-housing and stern-bracket service, plus trim/tilt troubleshooting, electrical tests, unit removal, and motor and manual-release-valve servicing.

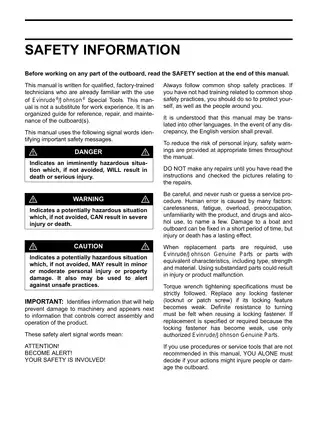

Written for qualified, factory-trained technicians familiar with Evinrude/Johnson Special Tools, this manual assumes prior workshop experience.

EMM Diagnostics and Fault Isolation

Factory resistance references and circuit checks support workshop maintenance and fault diagnosis by connecting measured results with the applicable specifications. Dynamic cylinder-drop tests help compare cylinder performance while accounting for the EMM’s idle-speed compensation.

The Trouble Check Chart organizes symptoms such as no-start, stalling and rough running. The Evinrude EMM Service Code Chart links faults with affected circuits, warning indications and test information; connector pin assignments support tracing faults through the wiring.

The software sections explain stored, hard and persistent faults, engine-history reports, SystemCheck operation, S.A.F.E. and shutdown modes. They also cover TPS calibration, crankshaft-to-EMM timing synchronization and EMM transfer. These tasks use Evinrude Diagnostics Software and a diagnostic interface cable.

Fuel Delivery, Oiling and Cooling

Fuel diagnosis distinguishes supply restrictions, lift-pump faults, circulation-pump problems and injector leakage. The vapor separator is serviced as an assembly that includes the circulation pump; intake-manifold coverage extends to reed-plate inspection and throttle-body installation.

Replacement injectors require matching coefficient data and correct cylinder assignment; incorrect installation can cause powerhead failure. The fuel-system instructions also address Oetiker stepless clamps and warn against reuse because leakage can cause a fire.

Oil-system coverage includes priming, distribution-hose servicing and the oil-to-fuel check valve. The Oiling System Electrical Diagram, Oil Supply and Distribution Diagram, and Hose Routing and Water Flow Diagram show the relationships between lubrication, the powerhead, EMM and vapor separator.

Cooling diagnosis separates low-speed thermostat control from higher-speed pressure-relief-valve operation and includes temperature checks using diagnostic software or a pyrometer.

Powerhead and Gearcase Repair Detail

Internal powerhead inspection covers cylinder-bore taper and out-of-round, piston rings, crankshaft journals and bearings. Assembly instructions identify piston and connecting-rod orientation and the required Rod Cap Alignment Fixture, P/N 396749.

Separate service charts identify the “S” and “O” gearcases. Their housings, shafts, gears and bearings differ, and the repair instructions identify corresponding tooling and assembly details. Driveshaft shimming uses Tool P/N 393185.

A gearcase assembly warning explains that an O-ring in the driveshaft bearing housing’s lower groove can block an oil passage and damage the lower unit.

Midsection and Trim/Tilt Service

Midsection procedures address mounts, steering-shaft bushings and seals, and exhaust-housing inspection. Trim/tilt diagnosis combines relay and sender tests with motor-current and operating-speed checks; servicing includes manual-release-valve seals, motor installation, fluid filling and air purging.

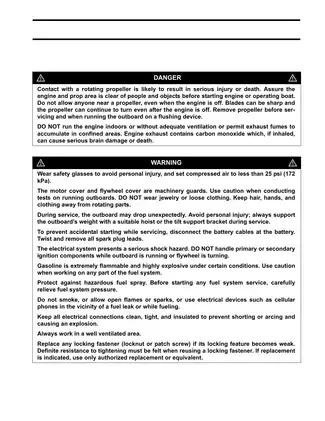

Before initiating any marine repair or maintenance procedure, consult the manual’s safety precautions for fuel spray, rotating components and electrical shock.

Selected Cooling and Powerhead Specifications

The cooling data lists a minimum water pressure of 16 psi at 5000 RPM for the covered outboards.

For powerhead inspection, the top and center crankshaft journals are specified at 2.1870–2.1875 in. Piston-ring end gap is 0.011–0.023 in. for standard or oversize rings in the corresponding cylinder bore.
