Honda XR650L 1993 Factory Service & Repair Manual (P/N 61MY600)

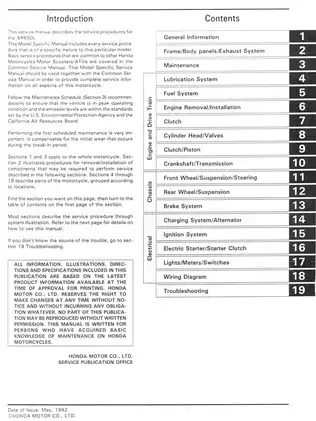

Honda’s model-specific factory Service Manual for the 1993 XR650L, P/N 61MY600, issued May 1992, covers service and repair across nineteen chapters. Honda specifies using it with the separate Common Service Manual for shared workshop procedures; that companion manual is not included.

Chapter Bookmarks and Wiring-Diagram Detail

Search, navigation and diagram detail: Text search is unavailable. Embedded PDF bookmarks provide access to the chapters, introduction and index. Small labels on the main wiring diagram require zooming, and some of the smallest wire-color codes remain soft when enlarged.

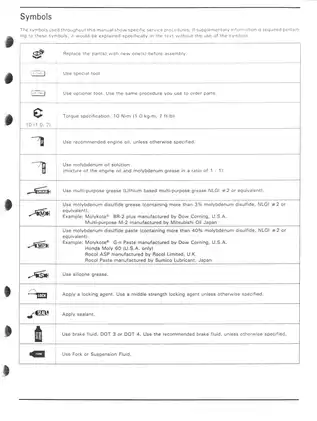

One printable English PDF contains 210 pages, including two cover pages, four introductory pages, two index pages, eleven memo pages, one blank page and an additional version of the oil-pump removal/installation page.

Engine, Chassis and Electrical Service

The following selected topics show the manual’s coverage without reproducing its full contents. Other subjects include body-panel and exhaust-system removal, plus spark-arrester maintenance.

• Engine and lubrication: Engine removal/installation, camshaft and valvetrain work, cylinder/piston service, and oil-pump removal and assembly.

• Fuel and emissions: Carburetor disassembly, pilot-screw idle-drop adjustment, U.S. high-altitude settings, and market-specific hose routing.

• Clutch and transmission: Cable-operated wet multi-plate clutch service, primary-drive and gearshift-cam work, crankcase separation, and mainshaft/countershaft disassembly.

• Wheels and suspension: Front/rear wheel service, fork disassembly/assembly, steering-stem work, rear-shock spring service, and linkage/swingarm bearing replacement.

• Brake repair: Pad replacement and front/rear master-cylinder and caliper disassembly/assembly, supported by component-specific inspection specifications.

• Electrical diagnosis: Charging and ignition tests, starter-motor and one-way starter-clutch service, lighting/meter/switch information, and symptom-based troubleshooting charts.

Written for readers with prior knowledge of Honda motorcycle maintenance, this manual assumes access to the workshop tools and test equipment needed for the work described.

Carburetor Variants and Serial-Specific Settings

The fuel-system data distinguishes the standard VE85A carburetor from the California VE86A. For 49-State frames PM-000001–PM-000958, the main jet is #155, or #152 for high-altitude use; after PM-000958, the specifications change to #152 and #150 respectively.

California frames PM-000001–PM-000078 follow the same early jet specifications, with the change occurring after PM-000078. Canada is listed separately at #152, or #150 for high-altitude use. Pilot-screw initial settings also vary by market and serial break.

These distinctions help match carburetor service data to the machine before settings or replacement jets are selected. Carburetor Tube Routing illustrations distinguish market layouts, including U.S. air suction valve (ASV) and air injection control valve (AICV) connections and California charcoal-canister/purge control valve (PCV) plumbing.

Engine Access and Internal Assembly

The manual identifies work that can be performed with the engine in the frame, including oil-pump, clutch, camshaft, cylinder-head and cylinder/piston service. Transmission, shift-fork, shift-drum, crankshaft and balancer work requires engine removal and crankcase separation.

Illustrated sequences and step-by-step instructions cover model-specific removal and assembly, including camshaft timing and balancer alignment. Inspection tables supply connecting-rod small-end dimensions, gear and bushing measurements, valve clearances, oil capacities and component-specific torque data.

Assembly notes distinguish the different-thickness oil-pump A and B rotors and specify transmission thrust-washer and snap-ring orientation; mixing these parts or assembling them incorrectly can compromise lubrication or component retention. Engine-installation notes also warn against trapping and damaging the wire harness between the engine and frame.

Suspension and Brake Repair Scope

Fork procedures address damper-rod, bushing and seal handling. Rear-shock coverage includes spring removal and upper-mount spherical-bearing replacement, rather than an internal damper rebuild. Separate procedures cover suspension-linkage bearings and swingarm pivot bearings.

The brake chapter details master-cylinder and caliper assembly for both ends of the motorcycle. General brake-fluid draining and bleeding, wheel-bearing replacement methods and valve-guide replacement procedures are referenced to the Common Service Manual.

Support the motorcycle securely and observe the specified cold-engine conditions for valve checks. The rear shock contains pressurized nitrogen, and the fork cap is under spring pressure, so suspension work requires the manual’s precautions and suitable equipment.

Electrical Tests and Fault Isolation

The charging-system flowchart separates battery, wiring, alternator and regulator/rectifier faults through current-leakage, charging-output and resistance checks. Ignition diagnosis includes coil and pulse-generator testing, timing inspection and side-stand inhibitor troubleshooting; CDI ignition timing is not adjustable.

Starter troubleshooting distinguishes a motor that will not turn, slow cranking and a motor that turns without driving the engine. Lighting, meter and switch sections include component removal information, with switch-continuity charts on the Wiring Diagram.

Useful references include the Lubrication System Diagram and Cable & Harness Routing views. The Charging System/Alternator, Ignition System and Electric Starter/Starter Clutch System Location pages pair component locations with circuit information, alongside the dedicated Wiring Diagram.

Special Tools for Repair Planning

Honda’s tool tables identify equipment needed beyond ordinary hand tools. Examples include float level gauge 07401-0010000, cam-chain tensioner holder 07973-MG30003 and crankcase assembly tool 07931-KF00000.

Rotor puller 07733-0020001 and digital multimeter 07741-0020000 are also listed. These references help establish the equipment required before engine disassembly or electrical diagnosis begins.

Examples of Oil-Pump Clearances and Gear Inspection Data

Oil-pump inspection: Standard body clearance is 0.15–0.21 mm, while standard end clearance is 0.02–0.08 mm. The lubrication specifications list separate service limits for evaluating wear.

Transmission inspection: Standard M4 gear inside diameter is 28.020–28.041 mm, compared with 28.000–28.021 mm for M5. The table identifies each gear separately and provides its corresponding service limit.
