John Deere 120C Excavator Repair Manual, 2002–2005 (P/N TM1935)
490 Pages • 1 Printable PDF (English) • Download
John Deere Models Covered & Key Technical Specifications
Models: 120C
Sub-models / Variants: 120C (Standard Arm and Long Arm, as listed for arm removal)
Model Years: 2002–2005 (2002, 2003, 2004, 2005)
Serial numbers (dampener drive / flex coupling): up to S/N 034261; S/N 034262 and up
-
Engine: Diesel engine (internal engine repair covered separately in CTM104)
-
Cooling system capacity: 26.5 L
-
Component weight (track roller): 21 kg
-
Component weight (sprocket): 37 kg
-
Component weight (front idler): 82 kg
-
Main hydraulic pump weight: approx. 95 kg (engine removal section); approx. 118 kg (hydraulic pump repair section)
-
Track roller oil capacity: 200 ml
-
Track carrier roller oil capacity: 48 ml
-
Track roller-to-frame cap screw torque: 300 Nm (225 lb-ft)
-
Track carrier roller-to-frame cap screw torque: 98 Nm (72 lb-ft)
-
Sprocket-to-propel gearbox cap screw torque: 265 Nm (195 lb-ft)
-
Track shoe-to-link cap screw torque: 163 Nm (120 lb-ft) plus 1/2 (180°) turn
-
Track roller oil cavity air test pressure: 110 ± 18 kPa (1.1 ± 0.3 bar)
John Deere Manual Features & Selected Content Preview
The John Deere 120C Excavator Repair Technical Manual (P/N TM1935), dated April 9, 2009, covers workshop repairs for the 2002–2005 John Deere 120C excavator.
English PDF and Navigation

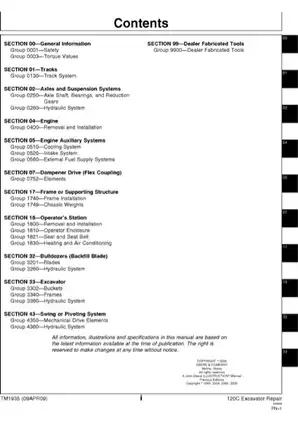

Finding procedures and illustrations: The contents page groups repairs by system. Use it for navigation, as the PDF has no text search or embedded bookmarks.

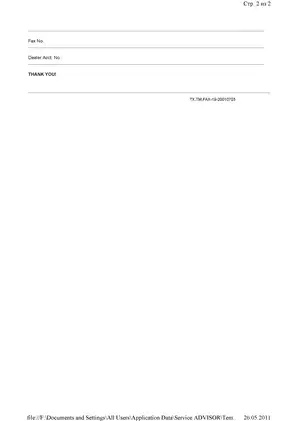

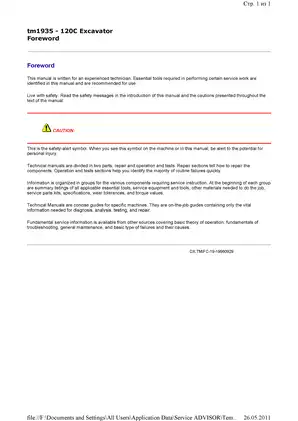

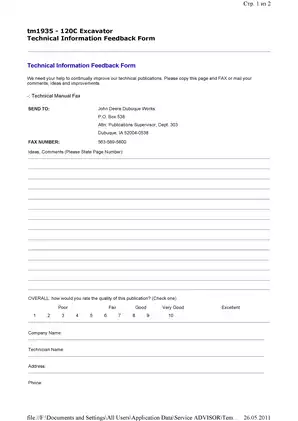

One printable English PDF contains 490 pages. The total includes five front-matter pages, 461 pages of service material, and 24 pages covering dealer-fabricated tools. The front matter includes the original cover, contents, foreword, and a two-page feedback form.
Track, Hydraulic, and Swing Drive Repairs
This selection of repair topics shows the scope of the manual. Other procedures include radiator removal and repair of the backfill blade pump, control valve, and cylinder.
- Undercarriage: Step-by-step track roller and track chain repairs, plus procedures for the front idler, sprocket, track adjuster, and recoil spring.
- Travel drive: Propel gearbox and motor disassembly and assembly, rotary manifold repair, and a dedicated propel motor start-up procedure.
- Engine and coupling: Engine removal and installation, starter replacement, air intake leak testing, and flex-coupling procedures organized by serial number.
- Excavator hydraulics: Main pump, regulator, pilot pump, and control valve repair, plus boom, arm, and bucket cylinder service.
- Boom, arm, and bucket: Pin, bushing, and boss inspection, bucket pivot end-play adjustment, and boom and arm removal.
- Swing system: Swing gearbox, bearing, motor, and park brake repair, with start-up procedures for the gearbox and motor.
- Operator’s station: Cab and window work, seat belt service, and R134a recovery, evacuation, and charging procedures.
The manual is written for experienced technicians familiar with heavy-equipment service.
Engine Removal and Flex-Coupling Fit
The flex-coupling chapter separates the removal and installation procedure through S/N 034261 from the repair procedure starting at S/N 034262. Checking the serial break before removing the pump helps identify the correct coupling arrangement.
Internal engine repair is covered in the separate CTM104 manual. Fuel injection pump replacement is referred to CTM331. For machine-level diagnostics, including the referenced electrical and hydraulic schematics, use the separate 120C Operation and Tests manual, TM1934.
Hydraulic Repairs and Return to Service
The main pump chapter includes a start-up procedure after pump work. The cylinder chapter gives a separate bleeding procedure and explains how trapped air can damage seals during initial operation. A portable filter caddy procedure covers hydraulic oil cleanup after a failure that produces debris.
Lifting and Fabricated Tools
The arm removal procedure lists separate lifting weights for the standard and long arms. The tool section includes drawings for the DFT1119 pump support used during engine removal and the DFT1237 swing gearbox nut spanner wrench, so technicians can prepare the required tooling before disassembly.
Sample Bucket Joint Limits and Hydraulic Tank Capacity
For the bucket-to-arm joint, the inspection table gives a limit of use of 64.0 mm for the pin outside diameter and 66.5 mm for the bushing inside diameter.
The pump removal procedure gives an approximate hydraulic oil tank capacity of 76 L (20 gal) for planning the drain.
