2003–2008 KTM 950/990 Adventure, 990 Super Duke/R, 950 Supermoto/R, 990 Supermoto, 950 Super Enduro LC8 Repair Manual (P/N 3.206.056-E)

This KTM factory repair manual, P/N 3.206.056-E, edition 07/2008, covers the 2003–2008 LC8 range: 950/990 Adventure, 990 Super Duke/R, 950 Supermoto/R, 990 Supermoto, and 950 Super Enduro. Separate chassis specifications identify the Adventure S variants.

Searchable Workshop Text and Wiring Detail

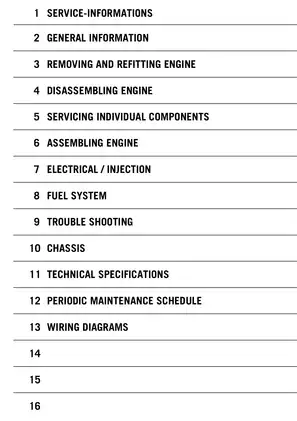

Search, bookmarks, and diagram detail: Service text is searchable, and embedded bookmarks cover the main chapters and many individual procedures; some entries open chapter indexes. Small connector numbers, pin labels, and wire codes in the dense wiring diagrams require zooming.

One printable English PDF contains 447 pages, including seven cover/front-matter pages and 23 blank pages.

LC8 Engine Rebuilds, Fuel Systems, and Electrical Diagnosis

These are selected workshop topics, rather than a complete contents list. Further examples include carburetor-heater testing and adaptation of the optional Super Duke alarm transmitters.

• Engine repair: Model-specific engine removal and refitting, crankcase separation, cylinder-head inspection, piston checks, and camshaft installation.
• Clutch and transmission: Clutch wear checks, pressure-booster inspection, mainshaft and countershaft service, and shift-mechanism assembly.
• Fuel systems: Keihin CVRD 43 carburetor overhaul and synchronization, plus electronic-injection fuel-pump, filter, and pressure testing.
• Electrical diagnosis: Ignition and starting-system troubleshooting, charging tests, sensor checks, fault-code tables, and model-specific wiring diagrams.
• Cooling and lubrication: Water-pump overhaul, oil-pump inspection, oil-pressure testing, cooling-system checks, and coolant replacement procedures.
• Brakes and chassis: Brake-pad replacement, wheel and steering-head bearings, swingarm bearings, chain riveting, and ABS-unit and sensor replacement.
• Service references: Periodic maintenance schedules, engine and chassis torque tables, wear limits, and special-tool lists with part numbers.

KTM wrote this manual for qualified, professionally trained mechanics and assumes familiarity with general workshop practices.

Engine Specifications and Assembly Data

This factory reference is built for the bench, giving technicians the specifications needed for servicing the LC8 powerplants. Technicians can reference component-specific tightening data and connector pin assignments during a teardown, with exploded views supporting reassembly.

Step-by-step procedures cover bearing-shell replacement, water-pump overhaul, and cylinder-head assembly. Crankshaft measurements, color-coded bearing selection, and Plastigauge checks distinguish the bearing-replacement work from a routine service overview.

The balancer shaft, starter freewheel, and torque limiter receive component-specific inspection or assembly coverage. Engine and chassis tool lists identify equipment such as the engine holder 600.29.002.000 and spreader-drive pretensioning tools 600.29.050.000 and 600.29.051.000.

For engines from 2005 onward, the balancer-shaft warning explains how overtightening can damage the prestressed spreader drive. The bearing-shell instructions identify a generator-side mismatch that can interrupt piston-cooling oil supply and cause engine damage.

Carburetors, Injection, and KTM Diagnostic Equipment

Carburetor coverage includes the ACV air-cut system, diaphragm and jet inspection, float-level setting, throttle-position-sensor adjustment, and choke-cable checks. The synchronization procedure includes checks of the vacuum-gauge tool itself.

Fuel-injected models have separate component tests, emergency-operation information, and diagnostic limit-value tables. Control-unit reset, throttle-cable adjustment, ECU software updates, and mapping procedures require the KTM diagnostics tool; the mapping instructions also require the appropriate software and dealer-sourced files.

Secondary-air-valve actuation and wiring tests sit alongside ignition-coil, relay, and sensor checks. The injection section covers throttle-body removal and installation but explicitly rules out internal work or adjustment of the throttle body.

Chassis Service and ABS Scope

Steering-head and swingarm bearing procedures extend to removal, replacement, and adjustment. WP suspension coverage includes fork-leg and shock-absorber replacement and setup specifications; internal servicing is referred to separate WP documentation.

For the ABS-equipped 990 Adventure, coverage includes fault-memory access, wheel-speed sensor checks, and unit replacement. The 990 Adventure S uses the non-ABS configuration. ABS-specific brake-fluid replacement and bleeding are referred to separate KTM Technical Information, which is not included in this PDF.

Working on high-performance V-twins involves significant mechanical risks; follow the manual's support requirements and brake-system checks.

Wiring Diagrams and System Layouts

The Oil System and Cooling System diagrams trace fluid paths and hose connections alongside the component procedures. The injection/ignition block diagram relates the ECU to its sensors and actuators.

Model-specific electrical sheets include Start/Charging System and EFI diagrams, supported by connector-face views and connector-location photographs. These references let a technician match a circuit pin to its physical connector during fault tracing.

A Preview of Bearing Assembly and Fuel-Pressure Data

The conrod-bearing section specifies a clearance of 0.030–0.060 mm and a wear limit of 0.080 mm. It also documents the complete three-stage bolt-tightening specification: 25 Nm, 30 Nm, and an additional 60°.

For Keihin EFI fuel-pressure testing, the specified pressure is approximately 3.5 bar with the engine running, including checks under full engine load.
