Detailed Workshop Manual for KTM LC8 Adventure & Duke Motorcycles (2003-2006) – 394 Pages | OEM Specs

KTM LC8 SERIES REPAIR PROTOCOLS (2003-2006)

Maintaining the high-performance KTM LC8 V-twin engine requires precise adherence to factory tolerances and advanced system diagnostics to preserve its legendary power-to-weight ratio. Engineering excellence in these machines is only maintained through professional-grade technical oversight and the use of verified component benchmarks. Accessing these specialized overhaul procedures ensures that every maintenance interval—from valve clearance adjustments to fuel injection mapping—meets the stringent quality standards of the 950 and 990 platforms.

Documentation Logistics & Technical Metadata

• Total Volume: 394 High-Density Technical Pages
• Official Form Number: Art.-No. 3.206.035-E
• Publication Revision: Edition 01/2006
• Digital Architecture: Structured PDF with Navigation Index

Precision Reliability & Investment Protection

• Eliminate Component Failure: Prevent catastrophic engine damage by using exact torque-to-yield values for conrod bolts and cylinder head nuts.
• System Integrity: Avoid "trial-and-error" electrical repairs by utilizing comprehensive wiring schematics and connector pin-out logic.
• Optimization of Output: Ensure peak performance through synchronized throttle body calibration and precise fuel-air oxidation via the Secondary Air System (SLS).
• Longevity Assurance: Protect internal friction surfaces by following specific dry-sump lubrication paths and oil pressure benchmarks.

Model Compatibility & Comprehensive Fleet Coverage

• KTM 950 Adventure / S (2003–2006): Complete coverage for carbureted LC8 942cc variants.
• KTM 990 Adventure / S / ABS (2006): Full technical data for EFI-equipped models, including specific ABS safety system logic.
• KTM 990 Super Duke (2005–2006): Specialized chassis and mapping data for the 999cc naked platform.
• KTM 950 Supermoto (2005–2006): Dedicated suspension and drive core specs for the SM variant.
• KTM 950 Super Enduro R (2006): Heavy-duty chassis and engine cooling data for the SE-R edition.

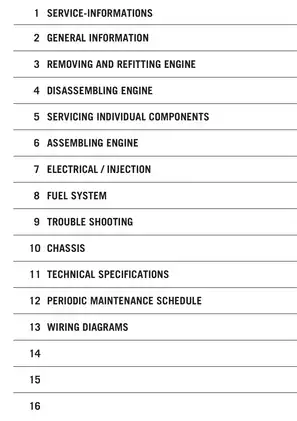

Master Technician's Table of Contents

• Chapter 1-2: System Operations (Oil, Cooling, SLS, ABS Safety Logic)
• Chapter 3-4: Major Service (Engine Extraction and Complete Disassembly)
• Chapter 5-6: Component Overhaul (Bearing Pressing, Crankshaft Measurement, Engine Reassembly)
• Chapter 7-8: Management Systems (EFI Diagnostics, Ignition Timing, Carburetor Calibration)
• Chapter 9-10: Chassis Dynamics (Suspension Servicing, Braking Systems, Wheel Bearings)
• Chapter 11-13: Reference Data (Tightening Torques, Tolerances, and Full-System Wiring Diagrams)

Advanced Diagnostics & System Logic

• Electronic Fuel Injection (EFI): Detailed "Reference Reset" procedures for the ECU after internal engine repairs to ensure stable idle behavior.
• ABS Troubleshooting: Integrated safety diagnostics for the 990 Adventure, including sensor pulse monitoring and warning lamp fault-code interpretation.
• Carburetor Synchronization: Step-by-step vacuum-pull calibration for the Keihin constant-pressure units used in 950 models.
• Stepper Motor Calibration: Specific logic for adjusting throttle cable clearance on fuel-injected models by retracting the idle control motor via the KTM diagnostic tool.

Engine Architecture & Tolerance Benchmarks

Visual Schematics & Path Routing

• Electrical Mapping: High-definition, color-coded wiring diagrams for every model variant (Adventure, Super Duke, Supermoto, Enduro).
• Lubrication Circuits: Detailed flowcharts of the dry-sump system, including pressure pump delivery to the annular groove and suction pump return paths.
• Intake & SLS Routing: Visual guides for vacuum line orientation and the secondary air system reed valve placement.
• Connector Locator: Visual identification of 20-pole, 12-pole, and 6-pole connectors (AA to CQ) across the frame and headlight mask.

FAQ

What is the required fuel system pressure for the 990 Series EFI to maintain airworthiness? For the fuel-injected 990 Adventure and Super Duke models, the vane-type pump must maintain a constant system pressure of 343 kPa (3.5 bar). To verify this benchmark, technicians should connect the EFI pressure gauge (special tool 610.29.094.000) to the fuel pump outlet. If the measured value falls below this threshold during a trial run, it indicates a restricted fuel filter or a defective pressure regulator, which will lead to lean-running conditions and potential engine damage.

Which engine serial prefixes and model ranges are addressed in these repair protocols? This technical documentation provides comprehensive coverage for the KTM LC8 Series manufactured between 2003 and 2006. This includes all 942cc and 999cc variants with engine numbers beginning with the first digits "4" (2004), "5" (2005), and "6" (2006). Explicit repair procedures are detailed for the 950/990 Adventure, 990 Super Duke, 950 Supermoto, and 950 Super Enduro, ensuring precision maintenance for the entire early-generation V-twin fleet.

What are the critical valve clearance tolerances for the 75° V-twin drive core? When performing top-end calibration at a standard workshop temperature of 20°C (68°F), the intake valves must be set to a clearance of 0.10–0.15 mm, while the exhaust valves require a gap of 0.25–0.30 mm. Maintaining these exact tolerances is essential for engine longevity; insufficient clearance prevents proper valve seating, leading to compression loss and burnt valves, while excessive play causes accelerated mechanical wear on the camshaft lobes.

How does the roll angle sensor logic enhance field safety during a crash situation? The roll angle sensor, integrated behind the headlight mask, utilizes an internal pendulum to monitor vehicle orientation. If the machine exceeds a tilt of 65° (+/- 10°) from the vertical, the ECU immediately terminates the ignition and injection cycles. This system logic prevents the high-performance engine from running without oil pressure while horizontal, protecting the crankshaft and main bearings from catastrophic starvation during a tip-over.

What is the specified tightening torque for the balancer shaft nut to avoid spreader drive damage? During the assembly of the timing and balancing system on 2005 and newer models, the nut securing the balancer shaft (A/F 30 mm) must be tightened to exactly 120 Nm. It is a critical workshop requirement not to exceed this value, as the gear wheel and balancer shaft are pre-stressed in later iterations; over-torquing will lead to permanent damage of the specialized spreader drive components.

What is the bench-testing benchmark for the pulse generator signal? To troubleshoot ignition failures, the pulse generator (inductive sensor) must be tested at the AT connector. When the starter motor is engaged with a fully charged battery, the digital multimeter should show a peak voltage reading of 4.0 volts (+/- 0.5 volts). If the signal deviates from this benchmark while the internal resistance is within the 190–300 Ω range, the gap between the pulse generator and the trigger wheel must be recalibrated to ensure consistent ignition timing.
