Honda Foreman 500 TRX500 2005–2011 ATV Service Manual
550 Pages • Printable PDF • 49.10 MB • Download
Honda Models Covered & Key Technical Specifications
Models & Model Codes: Foreman 500 (TRX500TM, TRX500FM, TRX500FE, TRX500FPM, TRX500FPE)
Sub-models / Variants: TM: 2WD, left foot operated gearshift; FM: 4WD, left foot operated gearshift; FE: 4WD, Electric Shift Program (ESP); FPM: 4WD, Electric Power Steering (EPS), left foot operated gearshift; FPE: 4WD, Electric Power Steering (EPS), Electric Shift Program (ESP)
Destination codes: A (U.S.A.), CM (Canada), U (Australia/New Zealand)
Model Years: 2005–2011 (2005, 2006, 2007, 2008, 2009, 2010, 2011)
-
Engine displacement: 475.3 cc
-
Engine type: Single cylinder, longitudinally installed, OHV
-
Bore and stroke: 92.0 mm x 71.5 mm
-
Compression ratio: 8.3:1
-
Cooling system: Air cooled with cooling fan and oil cooler
-
Transmission: Constant mesh, 5-speeds with reverse
-
Final drive: Hypoid gear oil SAE #80
-
Ground clearance: 190 mm (7.5 in)
-
Fuel tank capacity: TRX500TM: 15.8 liters (4.17 US gal); TRX500FM/FE/FPM/FPE: 15.8 liters (4.17 US gal) for '05–'07, 15.0 liters (3.96 US gal) after '07
Honda Manual Features & Selected Content Preview
Honda service manual for the 2005–2011 Foreman 500, covering TRX500TM, TRX500FM, TRX500FE, TRX500FPM, and TRX500FPE models. Procedures distinguish 2WD and 4WD versions, foot-operated shifting, Electric Shift Program (ESP), and Electric Power Steering (EPS) where fitted.
Printable PDF with Chapter Bookmarks
Search, navigation, and diagram detail: The service-page text is not searchable. Embedded bookmarks provide access to the numbered sections and individual wiring diagrams. Small wire-color codes and connector labels on the wiring sheets require zooming.
One printable 550-page PDF in English, including one additional cover page, 13 memo pages, and one blank page. These pages are already included in the total.
Engine Overhaul, Final Drives, and Electronic Controls
The following selected coverage highlights outline the main workshop areas rather than reproduce the full table of contents. Other topics include exhaust-system service and emission-control layouts.
-
Engine repair: Engine removal and installation, cylinder-head disassembly, valve-guide replacement, valve-seat refacing, camshaft service, and cylinder/piston inspection.
-
Clutch and transmission: Centrifugal and multi-plate wet clutch service, gearshift-linkage repair, crankcase separation, transmission inspection, and crankshaft/balancer assembly.
-
Fuel and lubrication: VE-type constant-vacuum carburetor rebuilding, pilot-screw and altitude adjustments, oil-pump inspection, oil-cooler service, and cooling-fan repair.
-
Brakes and chassis: Hydraulic front-brake bleeding, master-cylinder and caliper overhaul, rear drum/shoe service, suspension-arm inspection, and steering and wheel-bearing replacement.
-
Final-drive overhaul: Front differential and rear final-drive disassembly, bearing replacement, backlash measurement, gear-tooth contact checks, and shim selection.
-
Electrical troubleshooting: Charging-system tests, ignition and CKP-sensor diagnosis, starter-circuit checks, starter-motor overhaul, and ECM circuit inspection.
-
ESP and EPS: Shift-system problem-code diagnosis, control-motor and reduction-gear service, EPS trouble-code testing, and torque-sensor initialization.
This manual is written for qualified professional technicians with the training, tools, and equipment needed for the described work.
Engine Access and Internal Repair
Repair planning: Cylinder-head, valve, camshaft, and cylinder/piston procedures can be performed with the engine installed. Transmission and crankshaft service require engine removal and crankcase separation, helping distinguish external service work from a larger teardown.

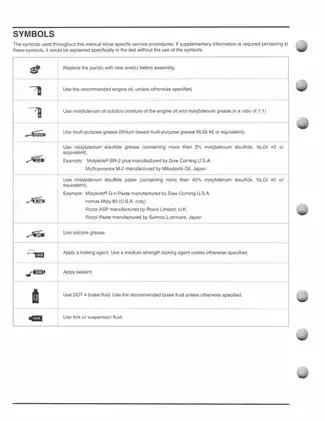

Internal inspection sections provide component wear limits and assembly checks. The reassembly information includes cam timing, balancer alignment, lubrication points, and component-specific fastener specifications, including cylinder-head cap-nut torques.
Oil-filter installation: The maintenance section identifies the filter’s correct orientation and warns that reverse installation can cause severe engine damage.
Carburetor, Brakes, and Driveline Setup
Carburetor service: Step-by-step procedures cover disassembly, cleaning, inspection, and reassembly of the VE6DA carburetor. Float-level inspection is included, but the float is not adjustable; the manual specifies replacement when its level is outside specification.
Chassis work: Front double-wishbone suspension procedures are separate from rear shock and swingarm service. Brake coverage distinguishes the hydraulic front discs from the mechanically operated rear drum.
Gear setup: Front differential and rear hypoid final-drive procedures explain contact-pattern evaluation and backlash correction after gear or bearing replacement. The front driving mechanism and Selectable 4WD sections apply to the 4WD models.
ECM, ESP, and EPS Fault Diagnosis
The integrated ECM combines ignition and cooling-fan control with ESP and selectable-drive control where applicable. System diagrams and connector views support checks of the shared wiring before a control module is replaced.
EPS diagnosis: Instructions cover DTC retrieval and erasure using the HDS Pocket Tester or the DLC with SCS connector 070PZ-ZY30100. Indicator blink codes identify main codes; subcodes require the diagnostic tester.
The torque-sensor initialization chart identifies the steering, handlebar-harness, and EPS work that requires initialization. Separate procedures explain initialization with HDS and through the DLC.
Diagrams and Reassembly References

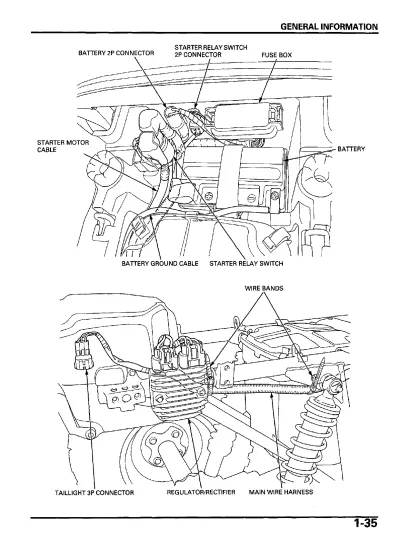

Illustrations include lubrication-flow diagrams, ESP system diagrams, EPS ECU block diagrams, motor-drive circuits, and exploded assemblies. Cable and harness routing drawings show connector and clamp positions, helping prevent pinched wires during reassembly.
Model-specific wiring sheets distinguish TM, FM/FE, and EPS configurations, with separate regional and production-version diagrams.

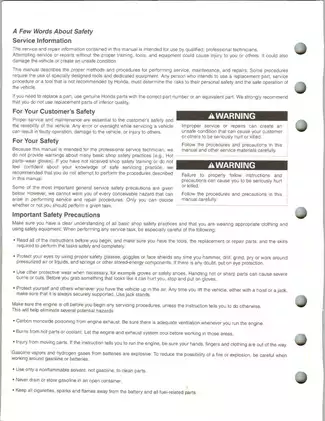

Working on ATVs involves heavy components and pressurized fluids. Follow the manual’s precautions for vehicle support, fuel handling, and electrical isolation.
Selected Valve, Brake, and Lubrication Specifications
Valve checks: Intake and exhaust clearance is specified at 0.15 ± 0.02 mm with the engine cold, below 35°C/95°F.
Brake inspection: Front-disc thickness is listed at 3.8–4.2 mm as standard, with a separate 3.0 mm service limit.
Lubrication references: Engine-oil capacity after draining is 2.4 liters (2.5 US qt). Rear final-drive oil capacity after draining is 75 cm³; the manual lists separate capacities for disassembly and other service conditions.
