Honda TRX250EX Sportrax ATV Service Manual, 2001–2005 (P/N 61HN604)

This Honda service manual covers maintenance, troubleshooting, and repair for the 2001–2005 TRX250EX Sportrax ATV, with procedures for the engine, drivetrain, chassis, and electrical systems.

Printable PDF, Bookmarks and Wiring Detail

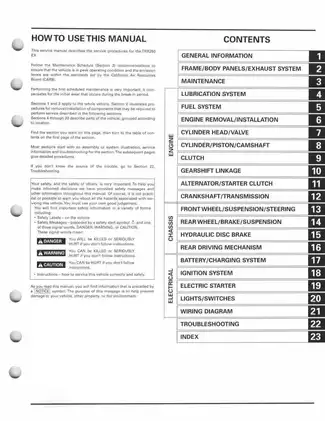

Search and diagram access: Embedded bookmarks provide access to the contents, numbered sections, and index. The service text is not searchable. Small wiring labels require zooming, and some component labels at the Canada diagram’s page join are cropped.

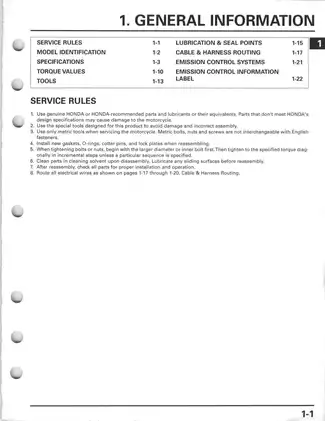

One printable English PDF contains 306 pages, including one added cover and eight memo pages.

Engine, Shaft Drive and Electrical Service

The following selected highlights outline the repair coverage rather than the full contents. Other topics include body-panel and exhaust removal, fuel-strainer cleaning, and spark-arrester maintenance.

• Engine repair: Engine removal and installation, cylinder-head and valve service, piston inspection, camshaft replacement, and cam-chain timing procedures.

• Fuel system: Carburetor teardown and reassembly, pilot-screw idle-drop adjustment, jet-needle inspection, and high-altitude jetting.

• Clutch and transmission: Centrifugal and wet multi-plate clutch service, gearshift linkage repair, crankcase separation, and internal transmission inspection.

• Rear drive: Axle-shaft inspection, final-drive disassembly, ring-and-pinion contact checks, backlash measurement, and bearing replacement.

• Brakes and chassis: Hydraulic front-brake bleeding and overhaul, rear drum-brake service, wheel bearings, suspension arms, and steering repairs.

• Electrical diagnosis: AC-CDI ignition tests, charging-system checks, starter-motor overhaul, relay and diode testing, and wiring diagrams.

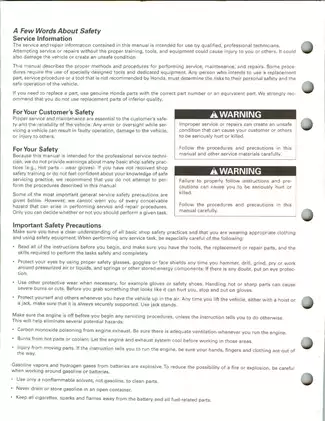

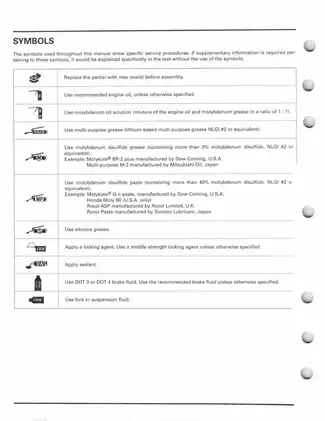

Written for qualified professional technicians, this manual assumes service training and access to the specified tools and test equipment.

Maintenance and Engine Work

The maintenance schedule covers routine inspections, valve-clearance checks, oil-strainer and centrifugal-filter cleaning, clutch adjustment, reverse-lock checks, and final-drive oil service.

Repair planning: The manual distinguishes work possible with the engine in the frame from jobs requiring engine removal and crankcase separation. That distinction helps plan access and equipment before transmission, crankshaft, or oil-strainer work.

Top-end detail: Step-by-step instructions cover valve-guide replacement and valve-seat refacing, with rocker-arm, cam-follower, and pushrod checks. Component wear limits, engine and chassis torque tables, and special-tool references support inspection and reassembly.

Lubrication coverage includes oil-pump rotor inspection and oil-cooler service. The lubrication-system diagram shows the oil path through the pump, cooler, and engine.

Carburetor Inspection and Adjustment

The PDC1D carburetor section includes float-valve and jet inspection, plus the factory procedure for setting the pilot screw after replacement. The float level is checked against specification; the float itself is not adjustable.

Carburetor cautions address pilot-screw seat damage from overtightening and engine overheating or damage from using high-altitude settings at lower elevations. Fuel-system work requires the manual’s ventilation and ignition-source precautions.

Final Drive, Brakes and Suspension

Gear setup: Final-drive coverage extends beyond oil changes to shim selection and gear setup. Contact-pattern illustrations distinguish normal contact from patterns that sit too high or too low on the gear teeth.

Exploded clutch and final-drive assembly views show component arrangement. The rear-drive instructions also distinguish actual fastener torque from the torque-wrench reading when the specified extension tool is used.

Chassis detail: Brake chapters cover master-cylinder and caliper teardown. Suspension procedures extend to ball-joint replacement, swingarm pivot bearings, and toe-in adjustment.

Circuit Tests and Wiring References

Charging-system troubleshooting separates battery condition, current leakage, alternator output, and regulator/rectifier faults. Ignition diagnosis includes peak-voltage checks with the specified adapter; the ICM-controlled ignition timing is factory preset and is not adjustable.

Electrical references include battery/charging and ignition circuit schematics, an electric-starter circuit diagram, and U.S. and Canada wiring diagrams. The Canada diagram identifies Quebec brake-light equipment.

Cable & Harness Routing drawings and switch connection tables support reassembly. The rear-fender installation section warns that confusing the starter relay cables can cause the starter motor to run unexpectedly.

System-specific troubleshooting charts connect test results with likely faults, helping a technician distinguish wiring problems from component failures before choosing replacement parts.

A Preview of Valve, Jetting and Drive-Oil Data

Valve setting: Intake and exhaust clearance is listed at 0.13 mm (0.005 in), checked with the engine cold, below 35°C (95°F).

Carburetor specification: The standard main jet is #95 below 5,000 ft (1,500 m); the high-altitude table lists #92 for 3,000–8,000 ft (1,000–2,500 m).

Final-drive oil: The rear gearcase oil-change specification is 75 cm³ (2.5 US oz) at draining, separate from the engine-oil capacity.
