2000–2001 Kawasaki Ninja ZX-12R Factory Service Manual (P/N 99924-1253-01)

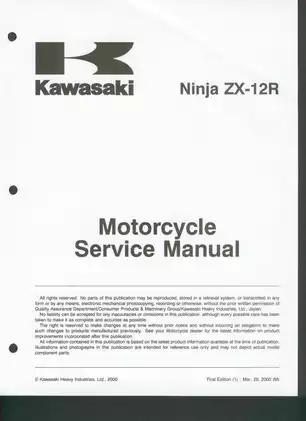

This Kawasaki factory service manual covers the 2000–2001 Ninja ZX-12R (ZX1200-A1), with market-specific emissions and electrical information. Publication 99924-1253-01, First Edition (1), dated March 29, 2000, organizes the material into sixteen chapters.

• Engine repair: Engine removal and installation, cylinder-head and piston service, camshaft timing, valve-clearance adjustment, and internal wear inspection.

• DFI diagnosis: Self-diagnosis, sensor and injector testing, fuel-pressure and flow checks, in-tank pump inspection, and throttle-body synchronization.

• Clutch and transmission: Clutch-stack inspection and adjustment, crankcase separation, bearing selection, transmission disassembly, and shift-drum and fork inspection.

• Cooling and lubrication: Water-pump service, thermostat and radiator-cap testing, cooling-system bleeding, oil-pump inspection, and oil-pressure measurement.

• Wheels, brakes, and drive: Tire and hub-bearing service, caliper and master-cylinder repair, brake bleeding, chain adjustment, and sprocket inspection.

• Suspension and steering: Front-fork disassembly and oil changes, rear-shock adjustments, Uni-Trak linkage service, and steering-stem bearing replacement.

• Electrical troubleshooting: Charging and ignition tests, starter-motor repair, meter and junction-box checks, ECU connector views, and market-specific wiring diagrams.

Written primarily for trained mechanics in a properly equipped shop, the manual also supports owners doing basic maintenance and repair who already understand mechanical work, proper tool use, and workshop procedures.

DFI Diagnosis and Emissions Systems

Fault tracing: The DFI Diagnosis Flow Chart, symptom-based Problem Chart, and ECU terminal-number drawings link sensor checks to harness and power-supply diagnosis. These references help distinguish a sensor fault from wiring or ECU supply problems before replacing parts.

The listed fault codes span 11–54, with checks for crankshaft and cam sensors, the gear-position switch, vehicle-down sensor, injectors, fuel-pump relay, and stick coils. The throttle sensor is factory-set; its section provides electrical inspection rather than an adjustment procedure.

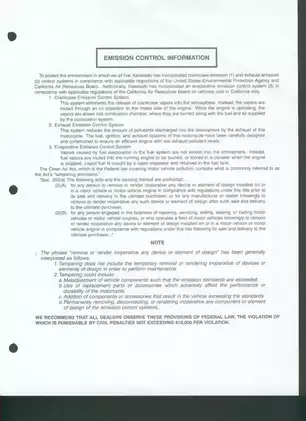

California evaporative-emissions coverage includes the separator, canister, hoses, and separator operation test. The KLEEN overview distinguishes catalyst exhaust arrangements and refers to a separate service manual for expanded theory and handling information.

Routing drawings flag the similar throttle-sensor and inlet-air-pressure-sensor connectors: an incorrect connection can damage the pressure sensor.

Engine Internals, Clutch, and Transmission

Internal repair: Cylinder compression testing, valve-seat repair, shim-selection charts, piston-ring measurements, crankshaft bearing selection, and balancer installation extend the coverage beyond routine maintenance.

The clutch section covers assembled plate-stack height and adjustment. Transmission procedures include shaft disassembly, gear-dog inspection, and shift-fork wear checks, with component-specific tolerances and tightening specifications.

Cam-chain tensioner: The manual warns that mishandling the non-return tensioner can damage the tensioner and chain, while disturbed valve timing can damage the valves.

Cooling and Oil Circulation

The Coolant Flow Chart and Engine Oil Flow Chart show circulation paths. Related procedures cover water-pump mechanical seals, radiator servicing, cooling-system pressure tests, the oil cooler, oil screen, and oil-pressure relief valve.

Front-Wheel Addendum and Chassis Service

Front-wheel update: The included addendum replaces the original front-wheel installation text on printed page 9-4, including axle seating and clearance checks.

Fork service specifies spring compressor set 57001-1452; internal disassembly of the fork cylinder unit is expressly excluded. Rear suspension instructions address damping, preload, swingarm bearings, and linkage sleeves.

High-performance motorcycle repair involves heavy assemblies and pressurized systems. Follow the manual’s lifting, fuel-system, and brake-safety precautions.

Electrical Circuits and Harness Routing

Charging, ignition, starting, lighting, radiator-fan, and meter circuits are documented alongside wiring diagrams for U.S./Canada, Australia, Malaysia, and other markets.

The Cable, Wire, and Hose Routing section shows harness and hose paths around the monocoque frame and frame-integrated Ram Air intake.

A Preview of Valve Clearance and Sensor Test Data

These examples are a small selection of the workshop measurements documented for the engine and DFI system.

For valve-clearance inspection with the engine cold at room temperature, the manual specifies 0.15–0.24 mm for the inlet valves and 0.22–0.31 mm for the exhaust valves.

The throttle-sensor input check specifies 4.75–5.25 V DC with the engine stopped, ignition on, and connectors joined. This is a supply-voltage check, separate from the sensor’s output-voltage inspection.

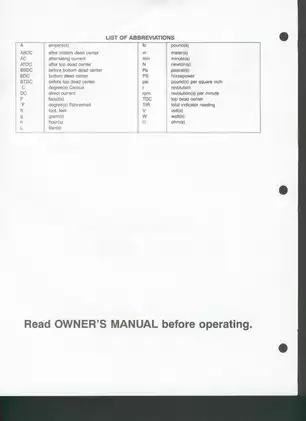

Printable PDF, Page Bookmarks, and Diagram Detail

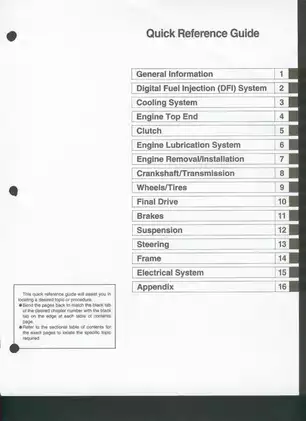

Search and diagram navigation: PDF text search is unavailable. Embedded page bookmarks use image filenames rather than chapter titles; the printed Quick Reference Guide and chapter contents provide additional orientation. Small wire-color codes and connector labels in the checked wiring diagrams are readable when enlarged.

This is a single, printable 434-page English PDF. The total already includes one front-wheel installation addendum page and two repeated service pages.
