1997–2003 Honda GL1500C/CT/CF Valkyrie Service Manual (P/N 61MZ009)

Honda service manual 61MZ009 covers the 1997–2003 GL1500C Valkyrie, GL1500CT Valkyrie Tourer, and GL1500CF Valkyrie Interstate, including 49-state/Canada and California types.

• Engine repair: Engine removal and installation, cylinder-head and valve service, timing belt replacement, and piston, crankshaft, and bearing inspection.

• Fuel and emissions: Carburetor disassembly, synchronization, pilot screw adjustment, pulse secondary air injection, and California evaporative emission control tests.

• Clutch and transmission: Hydraulic clutch bleeding, clutch overhaul, primary gear removal, output shaft service, and transmission disassembly and inspection.

• Final drive: Backlash measurement, gear tooth contact pattern checks, pinion and ring gear shimming, and drive shaft and universal joint service.

• Suspension and brakes: Inverted fork rebuilding, steering stem bearing replacement, swingarm inspection, and hydraulic master cylinder and brake caliper repair.

• Electrical and audio diagnosis: Alternator overhaul, ignition and starter testing, wiring diagrams, and GL1500CF radio, speaker, and headset troubleshooting.

This manual suits mechanics familiar with engine disassembly and electrical testing; several procedures require dedicated holders, pullers, gauges, and other workshop equipment.

Engine, Clutch, and Transmission Repair

Cylinder-head coverage extends to camshaft oil-clearance inspection, valve guide replacement, and valve seat inspection and refacing. Internal engine sections provide piston and cylinder wear limits, crankshaft bearing checks, and bearing-selection tables.

The timing belt cautions explain how crankshaft or camshaft rotation with the belts removed can damage valves and pistons.

Primary gear and output shaft service require engine removal, while internal transmission work requires crankcase separation. Both mainshaft and countershaft lock nuts have left-hand threads; the disassembly instructions also identify the risk of damaging shaft threads during unstaking.

Carburetors and Emission Controls

Carburetor coverage includes starting enrichment valves, air cut-off valves, vacuum pistons, and float inspection using gauge 07401-0010000. The floats are not adjustable; an out-of-specification float requires replacement of the float assembly.

Pilot screw data distinguishes California and non-California configurations. High-altitude adjustment and PAIR check-valve inspection are covered separately.

For California models, the numbered Vacuum Hose Routing Diagram and EVAP purge-valve tests help trace hot-restart complaints through the relevant vacuum circuit. The section also covers the EVAP canister and carburetor air vent control valve.

Cooling and Lubrication Diagnosis

Cooling coverage includes radiator cap and system pressure tests, thermostat inspection, radiator and fan removal, and water pump service. Lubrication procedures cover oil-pressure testing and inspection of both the main and scavenge oil pumps, with rotor-clearance specifications.

Final Drive, Suspension, and Brakes

The final-drive chapter illustrates drive-side and coast-side gear tooth contact patterns and provides shim-selection information for backlash and pinion positioning.

Fork procedures distinguish the right and left assemblies and give model-specific fluid data. Steering stem bearing adjustment, rear wheel service, shock absorber removal, and swingarm pivot bearing replacement are also documented.

Brake sections pair master cylinder and caliper inspection limits with assembly and bleeding procedures. Keep the work area ventilated and the motorcycle securely supported during major service.

Electrical Circuits and Interstate Audio

Charging tests lead into alternator rotor, stator, bearing, and regulator/rectifier service. Ignition diagnosis covers the ignition control module, pulse generator, coils, and engine coolant temperature sensor; starter coverage includes the motor, relay, and starter clutch.

Charging System/Alternator, Ignition System, and Electric Starter/Starter Clutch circuit diagrams support fault tracing. Cable & Harness Routing views show installation paths, while the main wiring section distinguishes GL1500C/CT and GL1500CF circuits.

The Audio System chapter applies specifically to the GL1500CF. Its troubleshooting charts address missing sound, weak or noisy reception, display faults, and speed-related volume control.

A Preview of Valve and Brake Service Data

These examples represent a small selection of the manual’s adjustment and assembly specifications.

Valve clearances are 0.15 mm intake and 0.22 mm exhaust, checked with the engine cold below 35°C (95°F).

The front brake caliper mounting bolt specification is 30 N·m. The torque table identifies these as ALOC bolts, which the manual specifies replacing during reassembly.

Text Search, Wiring Detail, and PDF Contents

Search and diagram access: An existing OCR text layer supports searches across much of the manual, but recognition errors and pages without searchable text limit coverage. The main wiring diagrams are not text-searchable, and there are no embedded PDF bookmarks. Small wiring labels require zooming; some fine GL1500CF lettering remains soft when enlarged.

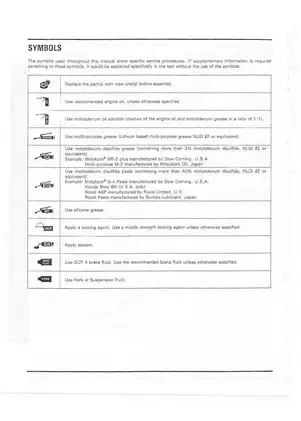

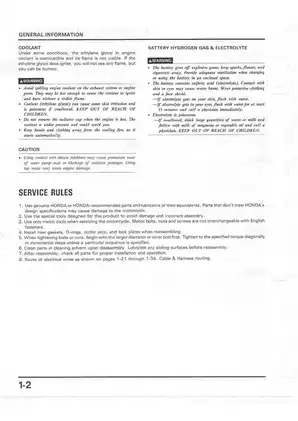

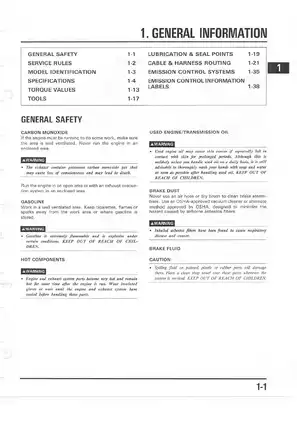

One printable English PDF contains 451 pages total: 440 chapter and index pages, one cover, two introductory and symbol pages, seven memo pages, and one blank page. All of these pages are already included in the total.
