Honda TRX125 Fourtrax Service Manual, 1985–1986 (P/N 61VM601)
250 Pages • 1 Printable PDF (English) • Download
Honda Models Covered & Key Technical Specifications
Model & Model Code: Fourtrax 125 (TRX125)
Sub-models / Variants: 1985–1986 model years, '85 and After '85 variants
Model Years: 1985–1986

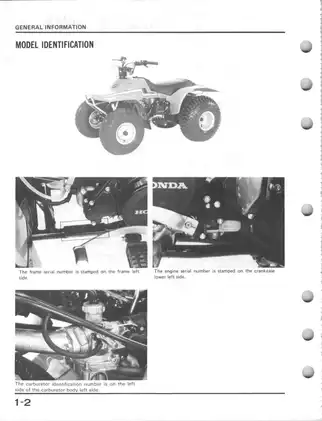

Frame serial break: From F/No. 007407 (TRX125 footpeg torque specification)
-
Engine displacement: 124 cc (7.6 cu in)
-
Engine type: Gasoline, air-cooled 4-stroke single cylinder
-
Horsepower: 8.6 BHP @ 7,500 rpm
-
Torque: 0.89 kg-m (7.0 ft-lb) @ 5,500 rpm
-
Transmission: 4-speed constant-mesh with reverse
-
Clutch: Wet multi-plate automatic
-
Oil capacity: 1.0 L (after draining), 1.2 L (after disassembly)
-
Fuel capacity: 7.3 L ('85), 7.5 L (After '85)
-
Tire pressure (front): 2.9 psi (0.20 kg/cm²)
-
Idle speed: 1,700 ± 100 rpm

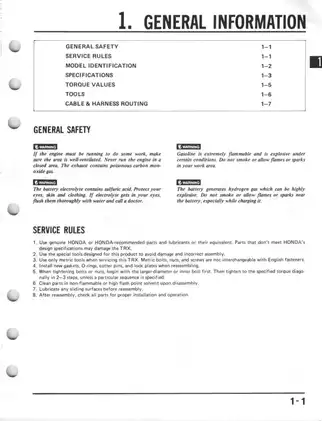

Honda Manual Features & Selected Content Preview
This official Honda shop manual (P/N 61VM601) covers the 1985–1986 Honda TRX125 Fourtrax 125. Honda identifies year-specific hardware and procedures throughout the manual as '85 and After '85.

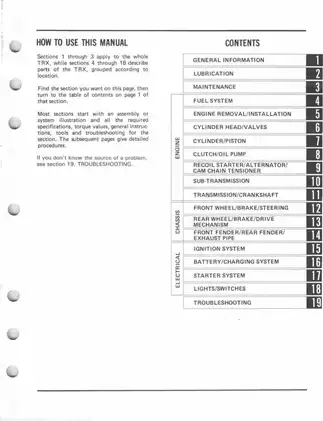

PDF Search, Bookmarks, and Wiring Diagrams
Search and diagram detail: OCR text search covers most pages, and embedded bookmarks link to all 19 chapters and both wiring diagrams. Small labels in the '85 diagram are readable when zoomed in. Some wire-color and connector labels in the After '85 diagram remain faint at higher magnification.
The download contains one printable English PDF with 250 pages, including the front and back covers and 11 memo pages.
Engine Overhaul, Chassis Service, and Electrical Testing
These selected service topics show the range of work covered. The manual also covers spark arrester cleaning and front and rear fender removal.
-
Scheduled maintenance: Separate '85 and After '85 schedules, oil filter screen cleaning, and drive-chain inspection, adjustment, and lubrication.
-
Engine overhaul: Step-by-step procedures for engine removal and installation, camshaft and cylinder-head teardown, valve-guide replacement, valve-seat refacing, and cylinder and piston inspection.
-
Clutch and transmission: Automatic wet-clutch inspection, oil-pump clearance checks, gearshift linkage service, sub-transmission overhaul, and crankshaft and transmission disassembly.
-
Fuel system: Fuel tank and air cleaner service, throttle valve and carburetor overhaul, float and jet inspection, pilot screw adjustment, and high-altitude jetting.
-
Brakes, steering, and final drive: Drum brake and front brake cable service, wheel bearing inspection, steering shaft and tie-rod work, and rear axle and sprocket removal.
-
Electrical diagnosis: Ignition coil, exciter coil, CDI, and pulse generator tests, charging system checks, starter motor and relay testing, and switch continuity checks.
The manual is written for technicians and mechanically experienced owners familiar with standard shop procedures and safety practices. Several jobs call for dedicated pullers, holders, drivers, or measuring tools.
In-Frame Service and Crankcase Work
The clutch, oil pump, gearshift linkage, recoil starter, alternator, cam-chain tensioner, and starter motor can be serviced with the engine installed. Crankshaft and main transmission work requires engine removal and crankcase separation. The sub-transmission chapter covers the reverse and Super Low gears, including shift-fork inspection and bearing replacement.
The cylinder-head chapter covers camshaft and rocker-arm inspection, valve and seat work, and cam timing during reassembly. The cylinder and piston chapter provides wear limits for checking the bore, piston, and rings before reassembly.
Carburetor, Throttle, and Wiring Differences
The '85 model uses the PB01B carburetor, and the After '85 version uses the PB01C. The fuel-system chapter gives each version its own initial pilot screw setting and warns that forcing the screw against its seat can damage it.
For After '85 machines, Honda distinguishes the integral throttle cable, which is replaced with the carburetor top, from the clip-on cable, which can be replaced separately. The manual also identifies the later steering lock and kingpin grease fitting. Separate harness layouts, CDI test tables, wiring diagrams, and switch checks help you match the procedure to the machine's hardware.
Chassis Repairs and Shop References
The chassis chapters cover steering-head inspection, kingpin and knuckle pipe service, rear axle bearing-holder work, tire removal and repair, and final-drive assembly. The drive-chain section warns that steam cleaning, pressure washing, and unsuitable solvents can damage the chain O-rings.
The manual includes lubrication-flow and assembly diagrams, torque tables, wear limits, and troubleshooting flowcharts for hard starting, power loss, poor running at different speeds, and handling faults. Tool references include the clutch outer holder 07923-0340000, flywheel puller 07733-0010000, bearing removers 07936-1660100 and 07936-KC10500, and steering locknut wrench adapter 07916-VM60100. The tire chapter gives separate U.S. and non-U.S. removal procedures and identifies the U.S. Universal Bead Breaker as GN-AH-958-BB1.
Selected Valve, Compression, and Head Torque Specs
The TRX125 intake and exhaust valve clearances are both 0.07 mm (0.003 in) with the engine cold. The cylinder compression procedure specifies a warm engine and an open throttle, with a standard reading of 177.8 ± 21.3 psi and a service limit of 128.0 psi.
For cylinder-head reassembly, the torque table specifies 20–22 N·m for the cylinder head nuts.
