Vespa GTS 250 IE USA 2005–2006 Repair & Parts Manual Set (P/N 633659)

The workshop manual supplies repair procedures and diagnostic checks, while the parts catalog supports replacement-part identification. The separate schematic and exhaust bulletins add circuit detail and campaign-specific service information.

Check the engine identification: The workshop manual lists M451M, while the USA parts catalog lists M452M. Match the relevant publication to your scooter before selecting parts or procedures. The exhaust recall has its own restricted U.S. VIN range.

PDF Search, Bookmarks, and Wiring Detail

Search and diagram detail: Word searches in the workshop and parts PDFs are unreliable because of character encoding. The workshop PDF has chapter and subsection bookmarks; the other four files have none. The separate schematic and both bulletins support text searches. Small labels in the separate schematic require zooming; some workshop wiring labels remain blurry when enlarged.

The ZIP contains five printable PDFs totaling 429 pages, including covers, introductory and index pages, blank pages, and the parts catalog’s closing page. The schematic and both bulletins are included in that total. Content is primarily English, with Italian introductory material and English/Italian schematic labels.

Engine, Injection, Chassis, and Exhaust Service

These selected contents outline the main workshop and reference coverage. Further topics include headlight adjustment and pre-delivery inspections.

• Engine and CVT repair: Step-by-step procedures cover engine removal, cylinder-head and timing work, crankcase separation, variator and clutch service, and final-drive bearings.

• Fuel-injection diagnosis: MIU fault checks, fuel-pump and injector testing, throttle-body removal, TPS reset, and coolant-temperature and lambda-sensor checks.

• Electrical troubleshooting: Immobilizer diagnosis, charging-system tests, starting-circuit checks, fuse assignments, instrument-panel connections, and frame-specific wiring diagrams.

• Steering and suspension: Front-hub overhaul, steering-tube and bearing service, swingarm bushings and silent blocks, rear shocks, and exhaust-support bracket removal.

• Brakes and cooling: Caliper and master-cylinder overhaul, disc inspection, pad replacement, hydraulic bleeding, coolant bleeding, and radiator and fan removal.

• Parts identification: Exploded assembly drawings and reference tables cover engine components, fuel and cooling systems, bodywork, suspension, brakes, and electrical equipment.

• Exhaust service documents: Gasket and clamp requirements accompany the VIN-limited manifold recall, replacement-kit identification, illustrated repair instructions, and dealer claim workflow.

The workshop manual was prepared for Piaggio dealer workshops and assumes basic mechanical and vehicle-repair knowledge, suitable facilities, metric tools, and the specified service equipment.

Parts Selection and Internal Engine Work

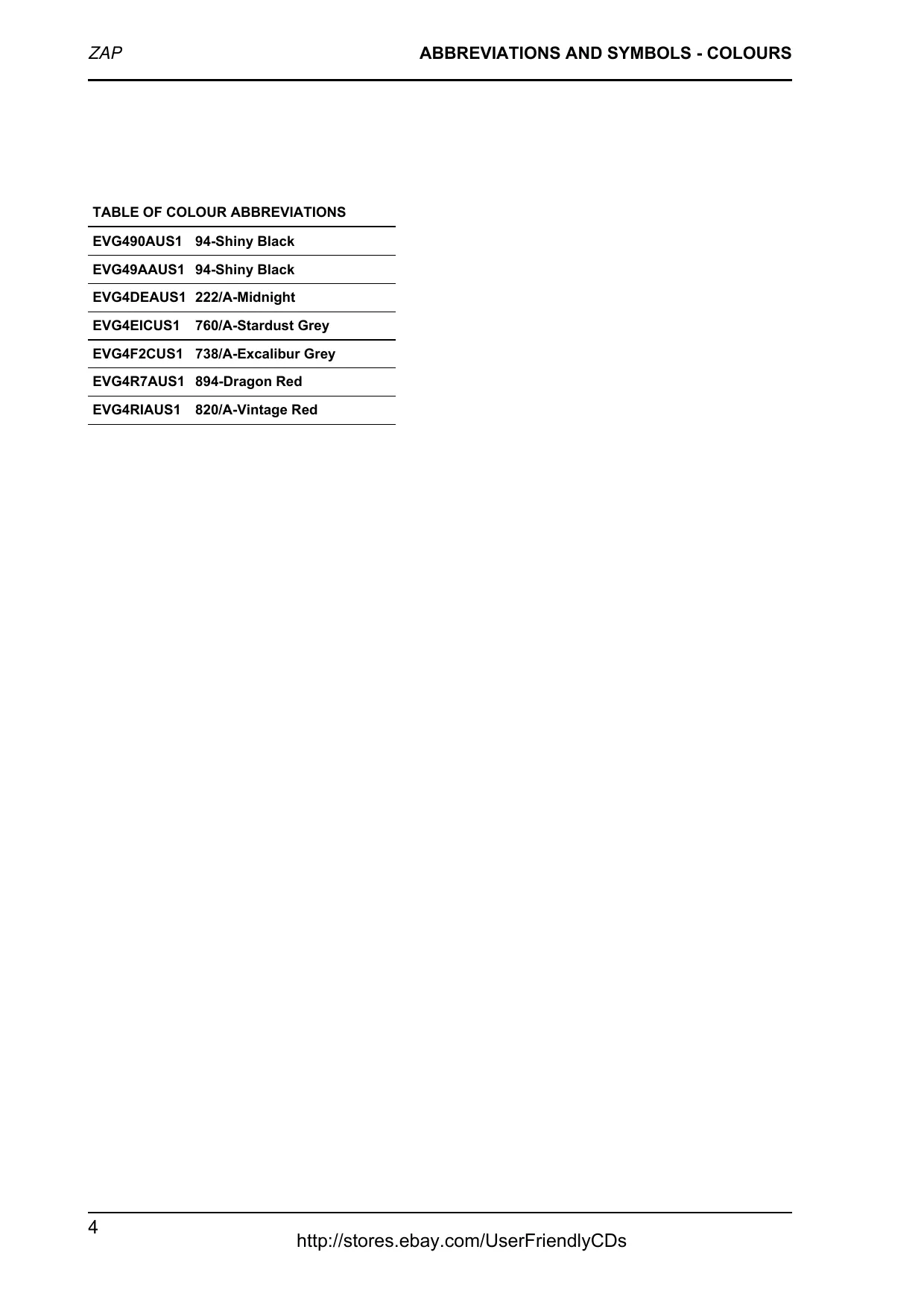

The parts catalog contains 53 illustrated assembly tables with location numbers, descriptions, quantities, vehicle-color applications, drawing numbers, and “up to” entries. These references help distinguish replacement parts before ordering, including color-dependent body panels and alternative component listings.

Examples include the cylinder-piston-wrist pin unit, throttle body-injector-union pipe, fork/steering tube-steering bearing unit, and voltage regulator-ECU-H.T. coil assemblies. Related tables identify the crankshaft, oil pump, flywheel magneto, reduction unit, frame, mudguards, helmet compartment, lamps, switches, and main cable harness.

Internal engine coverage goes beyond removal instructions to dimensional inspection, cylinder-base gasket selection, and crankshaft/crankcase bearing-category matching. Torque tables, lubricant and capacity data, wear limits, and electrical test values accompany the procedures.

The illustrated tool catalog identifies equipment such as the 002095Y engine support, 020262Y crankcase splitting strip, 020193Y oil pressure gauge, and 020021Y front suspension overhaul tool.

Transmission instructions warn against dropping the clutch bell during cover removal and specify the baffle roller’s belt-containment-edge orientation to avoid compromising belt operation.

MIU Diagnosis and Frame-Specific Circuits

Injection fault charts address no-start conditions, unstable idle, deceleration backfire, and poor acceleration. They connect symptoms with fuel delivery, ignition, sensor signals, intake leaks, and mechanical checks, helping mechanics investigate causes before replacing the MIU.

The injection section uses the 020460Y Scooter diagnostics tester for fault checks and TPS reset. Reset instructions distinguish first installation and control-unit replacement from used throttle bodies affected by wear.

Electrical references include Ignition, Lights and Turn Indicators, Battery Charge and Starting, Level Indicators and Enable Signals, and EMS circuit diagrams. Early and later frame-number versions support circuit selection before fault tracing.

The separate bilingual schematic maps ECU and dashboard terminals, immobilizer connections, the lambda sensor, fan relay, starter, fuel pump, regulator, fuse functions, and wire colors.

Exhaust Gasket Maintenance and Recall Limits

Technical Bulletin 18/06 specifies replacement graphite gasket P/N 826388 whenever the silencer is separated from the down pipe. It warns that gasket reuse or incorrect clamp positioning can allow hot exhaust gases to damage nearby components.

Recall campaign 07V-253 covers 2,757 U.S. VINs within ZAPM4510000006276–ZAPM459LX75004164 and identifies update kit P/N 872659. Its illustrated manifold-replacement instructions are followed by dealer warranty-claim screens; these VIN limits apply to the recall work.

Fuel-system diagnosis, starting circuits, brake hydraulics, and engine-running tests require the factory safety precautions and specified workshop equipment.

Selected Fuel, Charging, and Drive-Belt Specifications

Fuel-system test data include a pressure check of 2.5 BAR with battery voltage above 12 V. Charging-system specifications give 14.0–15.0 V at 5,000 rpm with the lights off and the battery in good working order.

CVT inspection data distinguish the drive belt’s standard width of 21.3 ± 0.2 mm from its minimum service width of 19.5 mm.
