Aprilia SportCity 250 i.e. Service Station Manual, 2006– (P/N AP8181026)

This Aprilia Service Station Manual (P/N AP8181026) covers maintenance, troubleshooting, and repair of the SportCity 250 i.e. with the M288M engine.

PDF Search, Wiring Detail, and Page Count

Text search and wiring labels: The PDF’s character encoding prevents ordinary word searches, and the file has no embedded bookmarks. Some pin numbers and wire codes in the general wiring diagrams remain blurred at higher zoom. Labels in the EMS circuit diagram are clearer when enlarged.

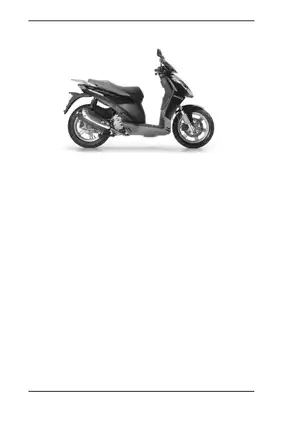

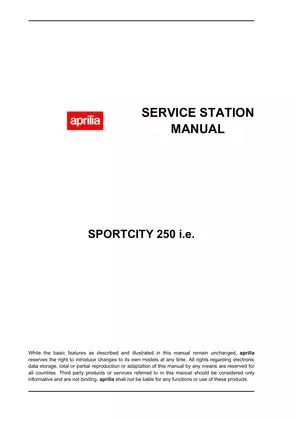

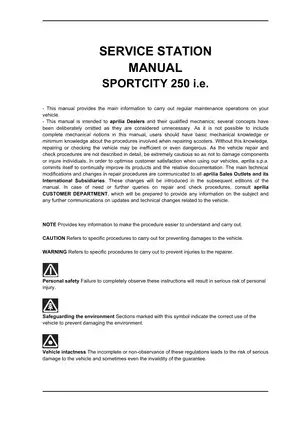

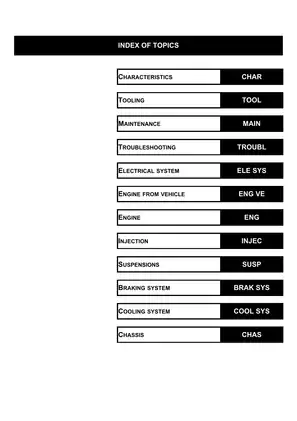

The download is one printable 285-page PDF in English. The total includes six front-matter pages: the cover, two publication and introduction pages, a scooter illustration, the general topic index, and one blank page.

Engine Overhaul, CVT Service, and MIU Diagnostics

This selection of workshop topics also includes examples of the manual’s broader coverage, such as fuel-level sender removal and starter motor removal.

• Engine repair: Step-by-step engine removal, cylinder-head and valve service, piston and cylinder inspection, crankcase separation, and lubrication-system checks.

• CVT and final drive: Variator roller replacement, drive-belt inspection, clutch service, driven-pulley overhaul, and rear-hub gear and bearing procedures.

• MIU fuel injection: Fuel-pump and injector tests, throttle-body service, Axone fault diagnosis, and throttle-position sensor reset procedures.

• Electrical system: Wiring diagrams, connector pinouts, ignition and charging checks, sensor tests, and instrument-panel fault indications.

• Brakes and suspension: Front-fork overhaul, steering and wheel-bearing service, brake-disc and pad replacement, and hydraulic brake bleeding.

• Cooling system: Thermostat and electric-fan tests, coolant replacement and bleeding, and removal of the radiator and expansion tank.

Written for Aprilia dealers and qualified mechanics, the manual assumes familiarity with scooter repair and leaves out some basic mechanical explanations.

Engine Assembly and Routine Maintenance

Internal engine coverage includes camshaft and rocker-arm inspection, valve-guide and seat checks, piston-ring clearances, and cylinder-to-piston matching categories. Cylinder-head assembly is supported by staged torque-and-angle specifications.

Base-gasket selection: The slot packing system uses piston recess measured without a base gasket to select gasket thickness and maintain the specified compression ratio. The lower-end section gives crankshaft and main-bearing matching categories. It identifies the connecting-rod big-end bushings as nonreplaceable and the crankcase bearings as unsuitable for regrinding.

Spark-plug fit: The manual explains how a plug with too short a threaded section can leave carbon deposits in the threads and cause damage when the correct plug is later fitted.

The maintenance chart covers engine and hub oil, oil and air filters, valve-clearance checks, and ignition timing. The lubrication circuit diagram accompanies oil-pressure testing, oil-pump inspection, and bypass-valve checks.

Pulley Wear and Rear-Hub Service

Pulley inspection covers bushings, roller housings, guide shoes, torque-driver pins, and clutch friction material. Rear-hub procedures address the gear shafts, bearings, oil seals, and cover assembly.

Tool references include AP8140535 for front-pulley work and AP8140259 with adapter AP8140665 for clutch service. The illustrated procedures identify where holding, compression, and installation tools are needed.

MIU Fault Tracing and Wiring References

Fault tables address no-start conditions, unstable idle, deceleration backfires, and poor full-throttle performance. Checks of connectors, relays, ignition, and fuel delivery help narrow a symptom to the relevant circuit before a component is replaced.

The injection section explains stepper-controlled idle and lambda feedback and includes Axone parameter readings and actuator tests. Its TPS reset guidance applies to initial installation and control-unit replacement and cautions against resetting with a used throttle body.

Wiring references include the Ignition, Battery recharge and starting, EMS circuit diagram, and Pump supply circuit drawings. The instrument-panel connector pinout, component-location views, and temperature-sensor reference data support electrical fault tracing.

Running Gear, Brakes, and Cooling

Front-fork coverage includes seal replacement, stem-straightness inspection, and oil filling. Wheel and axle checks, rear-shock removal, and body-panel removal procedures cover running-gear service and component access.

The brake chapter covers both front calipers and the rear brake, with disc thickness and runout checks. The manual calls for bleeding after hydraulic brake work and emphasizes fastener checks on the wheels, brakes, and suspension.

The cooling circuit diagram identifies the radiator, expansion tank, and water-pump connections. The safety notes also address hot coolant and pressurized fuel.

Drive-Belt Wear and Stator Test Examples

For the 250 4T drive belt, the manual lists a standard width of 21.3 ± 0.2 mm and a minimum width of 19.5 mm. The generator test reference specifies stator-coil resistance of 0.1–1.0 ohm at 20°C (68°F).
