Aprilia Atlantic 125/200/250/500 Sprint Service Manual, 2001–2003 (P/N 8140866)

Aprilia workshop manual P/N 8140866, UK issue 00/2005-06, covers the Atlantic 125/200 base models with integrated Atlantic 125–250 and Atlantic 500 Sprint updates. The foreword records an original release of December 2002; the cover identifies the June 2005 issue.

PDF Search, Diagram Detail, and Page Coverage

Text search and diagram detail: Body text and diagram legends are searchable; labels within wiring-diagram images are not. There are no embedded PDF bookmarks. Small wiring labels require zooming, and some fine ECU pin and wire-code markings in the 500 Sprint diagram remain soft.

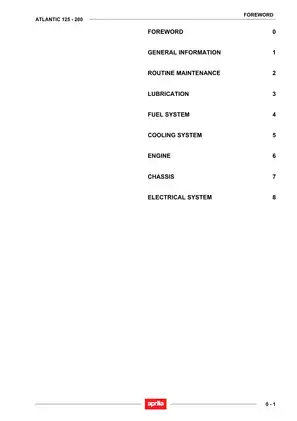

This printable English PDF has 271 pages, including a front cover, 224 pages of base-manual material, 9 pages of 125–250 updates, 36 pages of 500 Sprint updates, and a back cover.

Carburetor, Chassis, and Electrical Service

The following selected coverage highlights outline the main repair areas rather than reproduce the complete contents. Additional topics include decal application and dashboard clock-battery replacement.

• Fuel system: Vacuum-pump supply, fuel-filter and tank removal, level-sensor service, air-box access, carburetor overhaul, automatic-starter testing, and idle-mixture adjustment.

• Cooling system: Coolant replacement, radiator and fan removal, temperature-sensor removal, expansion-tank service, and model-specific cooling-system diagrams.

• Engine and bodywork: Step-by-step engine removal and installation, exhaust removal, panel access, frame removal, and side-stand and center-stand service.

• Brakes: Combined hydraulic-system layout, fluid replacement, circuit bleeding, proportioning/delay-valve removal, pad replacement, and brake-disc inspection and removal.

• Wheels and suspension: Front-hub disassembly, bearing and seal inspection, wheel refitting, headstock repair, fork disassembly and refilling, and rear shock/linkage removal.

• Electrical diagnosis: Ignition and side-stand logic, charging and starter-circuit tests, sensor and fan checks, lighting, signals, fuses, and wiring diagrams.

• Model updates: Revised 125–250 specifications and carburetor data, plus 500 Sprint throttle-body/injector removal, engine installation, bodywork, and EFI wiring references.

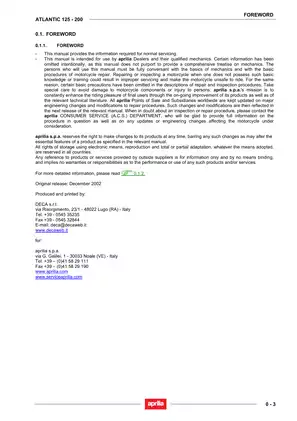

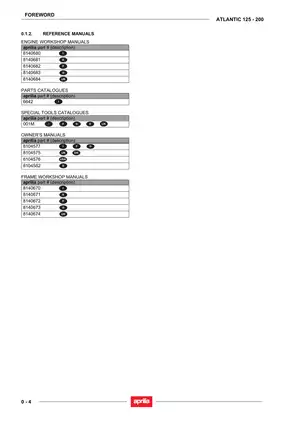

The foreword identifies Aprilia dealers and their qualified mechanics as the intended users and assumes working knowledge of mechanics and motorcycle repair.

Carburetor Repair and the 125–250 Update

The base fuel chapter distinguishes Walbro and Keihin configurations. Carburetor repair reaches into float and metering-rod inspection, pick-up pump components, vacuum-valve and diaphragm checks, and reassembly. Idle-mixture adjustment uses exhaust-gas analysis rather than engine sound alone.

The manual warns that disturbing pressed-in carburetor passages or caulked throttle-shaft screws can damage the carburetor body or shaft.

The 125–250 update identifies M 245 M for the 125 and M 237 M for the 250. It adds lubricant specifications, a maintenance schedule, carburetor calibration tables, and a revised transmission-oil level procedure; it is not a stand-alone 250 workshop manual.

500 Sprint Injection Hardware and Engine Access

For the M 273 M engine, coverage changes to throttle-body and injector hardware. The procedures identify fuel delivery and return connections, the stepper motor, throttle-position sensor, and intake-air sensor, then cover injector removal and separation of the throttle body from the intake manifold.

The update also documents rearward engine removal and reinstallation, battery-cover and helmet-compartment access, tail-guard removal, and shock-absorber removal.

Its dedicated wiring diagram identifies the fuel pump, injector, injection relays, bank-angle sensor, RPM sensor, ECU, and diagnosis socket. This update does not provide a full EFI fault-diagnosis chapter. Shared operations cross-reference the base manual.

Engine Removal and Internal Repair Limits

The engine-in-frame reference lists the automatic converter/variator, clutch assembly, and drive belt among components removable without taking out the engine. Detailed internal engine overhaul and lubrication-system repair are referred to separate engine workshop manuals.

Numbered photo sequences identify panel fasteners, hose and connector locations, and engine-support points. Engine support, fuel handling, brake hydraulics, battery service, and hot cooling-system work require appropriate shop equipment and trained procedures.

Wheel, Fork, and Combined-Brake Work

Front-wheel inspection includes bearing condition, seal wear, spindle runout, and radial/axial rim runout. Fork coverage extends through stanchion-and-slider disassembly, draining, filling, seal replacement, component inspection, and refitting.

Bearing-installation precautions address outer-race loading and the inner spacer relationship; fork instructions address damage to the slider’s internal seating surface.

The Brakes Diagram explains how the rear lever operates the rear caliper and part of the front caliper through the proportioning/delay valve. Operating a brake lever with the wheel or pads removed can eject caliper pistons and release brake fluid.

Other illustrated references include the Fuel Supply Diagram, Cooling System Diagram, Front Fork Diagram, Layout of Electrical Components, and model-specific Wiring Diagrams.

Ignition and Charging Fault Isolation

Base-model electrical coverage provides coil and pick-up tests, CDI pin information, relay and switch continuity checks, alternator tests, coolant-thermistor readings, fuel-level checks, and headlight beam adjustment.

The separate ignition, charging, and starter-circuit tests help distinguish an interlock fault from a power-supply or component fault before parts are selected.

Component-specific torque tables, lubricant charts, maintenance schedules, and inspection limits accompany the repair material. Special-tools references identify catalog 001M for the 125/250 material and manual 001H for the 500 Sprint; these separate tool publications are not included.

Examples of Component Test Values and Runout Limits

For the base 125/200 carburetor, the automatic-starter check specifies approximately 30 ohms at room temperature. The ignition pick-up specification is 105 ohms ±10% at 20°C.

Front-wheel inspection specifies a spindle runout limit of 0.25 mm and a radial/axial rim runout limit of 2 mm.
