2002-2004 Aprilia Atlantic 125/200 Service Manual

Comprehensive service manual for the Aprilia Atlantic 125 & 200 scooters, covering all maintenance and repair procedures. Ref: 8140680

5.0starstarstarstarstar(1)
visibility Preview Available

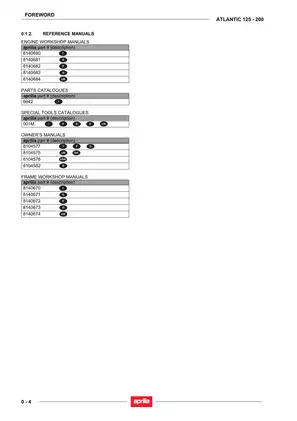

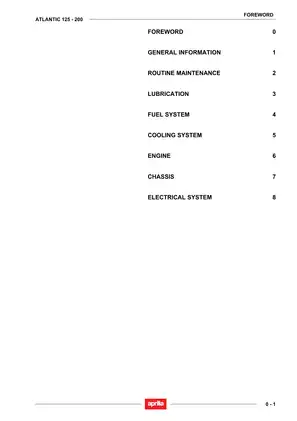

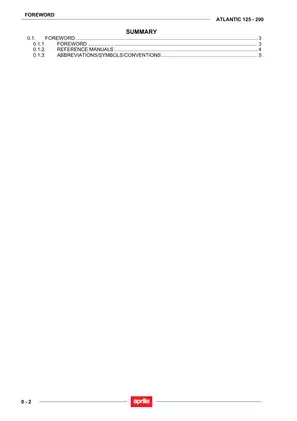

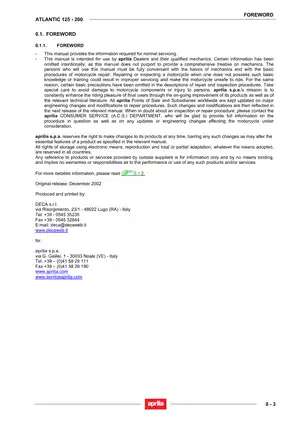

Aprilia 2002-2004 Aprilia Atlantic 125/200 Service Manual manual page preview - page 1 of 220+

Sample pages from the 2002-2004 Aprilia Atlantic 125/200 Service Manual manual

Aprilia 2002-2004 Aprilia Atlantic 125/200 Service Manual manual preview page 1 - thumbnail
Aprilia 2002-2004 Aprilia Atlantic 125/200 Service Manual manual preview page 2 - thumbnail
Aprilia 2002-2004 Aprilia Atlantic 125/200 Service Manual manual preview page 3 - thumbnail
info_outline Click thumbnails to preview different pages
$15.30 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Aprilia Models Covered & Key Technical Specifications

Models: Aprilia Atlantic 125, Aprilia Atlantic 200
Build Years: 2002–2004
Serial Numbers: ZD4MP
Technical Data:

  • Engine: Piaggio Leader 125 4T 4V or 200 4T 4V, water-cooled single-cylinder
  • Engine Displacement: 124 cu. cm (125) / 197.75 cu. cm (200)
  • Compression Ratio: 12.5±0.5:1 (125) / 11.5±0.5:1 (200)
  • Idling Speed: 1750 ± 100 rpm
  • Carburetor (125): WVF 7C* Ø29 Walbro
  • Carburetor (200): CVK 7C 30 Keihin or WVF 7D Ø29 Walbro
  • Front Tire Pressure: 210 kPa (standard) / 220 kPa (with passenger)
  • Coolant Capacity: 1.2 liters
  • Engine Oil Capacity (filter change): 1100 cu. cm
  • Transmission Oil Capacity: 250 cu. cm
  • Wheel Spindle Torque: 40 Nm (front)
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
24422 / Richard Lopez
File Size:
12.15 MB
File Type:
ZIP
Language:
English
Pages:
220+
Printable:
Yes
Category:
Scooter
Last updated / verified
Mar 30, 2025

Aprilia Manual Features & Content Preview

Official Aprilia Workshop Documentation

  • Covers 2002–2004 Aprilia Atlantic 125 and Atlantic 200 models equipped with Piaggio Leader 4T 4V water-cooled engines
  • Official Aprilia publication 8140680, December 2002 release
  • Contains 50+ detailed system-specific photographs, fluid-capacity tables, and torque-specification matrices for routine maintenance
  • Accessible from your device as soon as the order is placed
  • Suitable for printing individual sections for shop-floor use
  • This 220+ page document serves as the primary technical reference for the Atlantic 125/200 series, including specific procedures for carburetor adjustment, cooling system maintenance, and braking system service

Content Scope and Coverage

This factory-authorized manual provides the technical information required for standard maintenance and repair operations on the Aprilia Atlantic 125 and 200 scooters. The document is structured into distinct technical chapters covering general service information, routine maintenance schedules, lubrication charts, fuel system diagnostics, cooling system maintenance, engine specifics, chassis components, and electrical system schematics. It includes clear, illustrated sequences for dismantling and reassembling critical components, ensuring technicians follow correct technical procedures.

Specification and Technical Data Preview

Technical data is provided for critical identification and service. The engine oil capacity is documented at 1100 cu. cm for a full change including filter. Coolant system capacity for the Piaggio Leader-powered units is specified at 1.2 liters. Torque values are meticulously listed for high-safety components; for example, the front wheel shaft is specified at 40 Nm. Intake valve clearance for these engines is listed at 0.10 mm in the engine specification table. The carburetor settings, including idle mixture specifications for both the 125 and 200 variants, are documented alongside standard fuel-delivery flow rates. An official 220-page Aprilia OEM workshop manual covering the 2002–2004 Aprilia Atlantic 125/200, documenting engine, chassis, electrical, and fuel-system specifications for the Piaggio Leader-powered build.

Document Reference: Publication 8140680, December 2002 release

Manual FAQ, Purchase & Download Details

Is there a reference table in the document that lists fluid capacities for the engine and transmission? keyboard_arrow_down

Technical data and product sections include details regarding fluid capacities for the engine oil, cooling system, and transmission.

Can I use the provided service manual to look up tightening torque settings and general technical specifications? keyboard_arrow_down

Document contains sections dedicated to technical data and general tightening torque settings. These chapters provide standardized reference points for the maintenance of the covered vehicle systems.

Does this manual contain individual chapters for the fuel, cooling, and electrical systems? keyboard_arrow_down

Table of contents confirms the document includes dedicated chapters for the fuel system, cooling system, engine, chassis, and electrical system.

Are there electrical reference sections that cover battery specifications, connector positioning, and system components? keyboard_arrow_down

Document includes an electrical system chapter that details component locations, connector orientation, and safety protocols for handling electrical parts. It provides the necessary framework for identifying system-specific wiring and connection points.

Which document-specific technical details are included in the 220-plus pages of this 2002-2004 service manual? keyboard_arrow_down

Publication provides a comprehensive technical overview including engine data, cooling system capacities, and wheel fastening specifications. It also lists abbreviations and conventions used throughout the manual to aid in interpreting technical summaries. The document is provided as a PDF to ensure quick access to these system-specific reference materials.
