Honda ST50 / ST70 / CT70 Factory Shop Manual (1969–1976)

49 Pages • 1 Printable PDF (English) • Download

4.7starstarstarstarstar_half(3)
$15.35 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

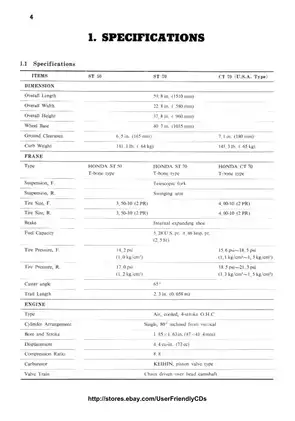

Honda Models Covered & Key Technical Specifications

Models: ST50, ST70, CT70

Sub-models / Variants: U.K. Type (ST50), General Export Type (ST70-I, ST70-II), U.S.A. Type (CT70)

Model Years: 1969–1976 (1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976)


  • Engine type: Air-cooled, 4-stroke O.H.C single-cylinder

  • Displacement: 72 cc (ST70, CT70)

  • Compression ratio: 8.8:1

  • Transmission: 3-speed constant mesh

  • Clutch: Wet, multi-plate, automatic centrifugal type

  • Fuel capacity: 2.5 L (ST50/70), 2.5 L (CT70)

  • Ignition: Flywheel magneto

  • Battery: YUASA B60-6 6V 2AH

Honda Manual Features & Selected Content Preview

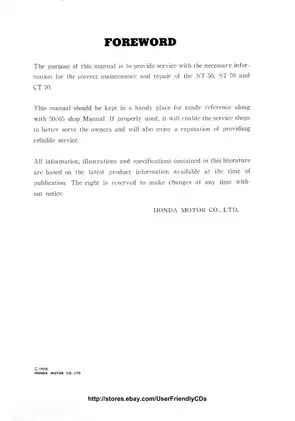

Honda Motor Co., Ltd.’s 1970 factory shop manual covers maintenance and repair for the ST50, ST70, and CT70. The listed model years are 1969–1976.

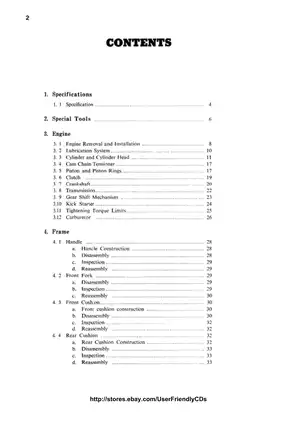

Chapter Bookmarks and Wiring Diagram Readability

Navigation and diagram detail: PDF bookmarks open chapters and subsections. The manual text cannot be searched. Zoom in to read the small wire codes and switch labels.

The download is one printable PDF in English. Its 49 pages include 48 manual pages and one added cover page.


Engine, Chassis, and Electrical Service

Selected workshop topics include the following. The manual also covers rear swingarm inspection and drive-chain alignment.

  • Engine repair: Step-by-step engine removal and installation, cylinder-head disassembly and repair, and inspection of the cylinder, piston, rings, and crankshaft.

  • Lubrication and timing: Trochoid oil-pump disassembly and clearance checks, oil-flow diagrams, valve timing, and cam-chain tensioner inspection.

  • Drivetrain: Centrifugal-clutch adjustment, transmission and shift mechanism inspection, and a kick-starter assembly drawing.

  • Fuel and air intake: Keihin carburetor cross-sections and model-specific specifications, plus service instructions for the oiled foam air-cleaner element.

  • Chassis and brakes: Steering-stem and fork service, front and rear cushion disassembly, wheel and bearing inspection, and drum-brake service.

  • Electrical diagnosis: Ignition-coil and selenium-rectifier tests, generator performance data, and four wiring diagrams with switch-connection tables.

Written for service shops, this manual suits mechanics familiar with engine disassembly, micrometers, dial gauges, and specialist service tools.

Engine Repair and Lubrication

The engine removal procedure identifies the engine and crankcase protectors fitted to the CT70. Cylinder-head work covers cutting and lapping valve seats, replacing and reaming valve guides, and checking valve springs and camshaft lift.

The cylinder inspection shows where to measure the bore at several heights and in two directions. Comparing those readings with Honda’s service limits helps you decide whether a worn cylinder can be reused, rebored, or replaced.

The oil-flow diagrams show how the trochoid pump feeds the connecting-rod bearing through the centrifugal filter and supplies oil to the valve train. The cam-chain tensioner section explains its hydraulic and spring operation and shows how to check for leakage at the check valve.

The engine-fastener torque table covers the crankcases, cylinder head, clutch, flywheel, and other mounting points. The special-tool list includes flywheel puller 07011-09801 and valve-guide reamer 07008-25002.

Clutch, Transmission, and Kick Starter

Power-flow drawings show neutral and each forward gear. The inspection tables give limits for gear backlash and shaft clearance, with separate checks for shift-fork wear and shift-drum diameter.

The clutch section includes separate spring free-length specifications for the ST50 and for the ST70/CT70. The kick-starter drawing shows how the pinion engages the countershaft low gear and identifies the springs and retaining parts.

Keihin Carburetor and Air Cleaner

Carburetor tables distinguish main jets, needle jets, and identifying marks by model and list the fuel-level specification. Honda refers readers to the separate Honda 50/65 Shop Manual for further carburetor service details. That manual is sold separately from this PDF.

The air-cleaner section explains how to clean and re-oil the foam element. When servicing the fuel system, maintain a well-ventilated workspace and follow standard shop safety practices.

Steering, Suspension, Wheels, and Brakes

The chassis section covers the folding handlebar and steering stem. Wheel drawings show how the 63010 bearings sit in the front hub, and the brake procedures cover drum, shoe, and lining wear as well as control adjustment and reassembly.

The front cushions use coil springs, while the rear units have hydraulic dampers. The front-cushion disassembly notes identify two parts that can be damaged by improper clamping or handling: the aluminum upper holder and the rubber-coated piston.

Ignition, Charging, and Wiring

Honda gives separate generator charging data for daytime and nighttime loads. The ignition section explains how resistance readings can point to a short, a ground fault, or an open circuit. The rectifier section distinguishes a basic service-tester check from the electrical tests performed by a specialist.

The diagrams cover ST50 U.K. Type, ST70-I and ST70-II General Export Types, and CT70 U.S.A. Type. Wire-color keys and switch tables help you trace connections for the main switch or, on the CT70, the combination switch.

Oil Pump and Clutch Wear Limit Examples

The oil-pump inspection lists a standard rotor end clearance of 0.02–0.07 mm and a replacement limit above 0.12 mm. The accompanying drawing shows where to measure the clearance with a straightedge and a feeler gauge.

The clutch inspection lists 3.50 mm as the standard friction-disc thickness and calls for replacement below 3.10 mm.
