2000–2003 Kawasaki Ninja ZX-9R (ZX900-F1) Service Manual (P/N 99924-1280-01)

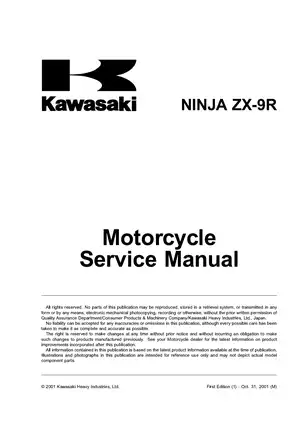

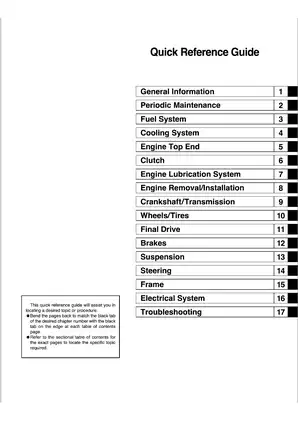

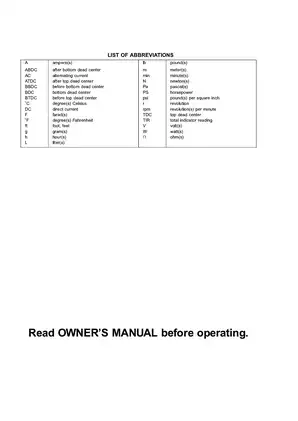

This Kawasaki factory service manual covers the 2000–2003 Ninja ZX-9R (ZX900-F1). Publication P/N 99924-1280-01 is the First Edition, dated October 31, 2001 (M).

• Engine repair: Engine removal and installation, cylinder-head and valve-seat work, piston inspection, camshaft timing, and crankshaft bearing selection.

• Clutch and transmission: Clutch plate inspection and stack-height adjustment, crankcase separation, transmission-shaft disassembly, and shift-drum and shift-fork inspection.

• Fuel and emissions: Keihin carburetor disassembly, fuel-level adjustment, synchronization, fuel-pump testing, fuel-filter inspection, and KLEEN and California evaporative-emission system coverage.

• Cooling and lubrication: Water-pump service, radiator-cap and thermostat testing, oil-pump inspection, oil-cooler removal, and cooling-system and oil-pressure checks.

• Brakes and chassis: Caliper and master-cylinder repair, brake bleeding, fork servicing, steering-bearing replacement, wheel inspection, and drive-chain replacement procedures.

• Electrical diagnosis: Ignition, charging, starter-motor, sensor, and junction-box tests, supported by circuit diagrams and wiring layouts for different markets.

Written primarily for trained mechanics in an equipped workshop, the manual also supports owners undertaking basic maintenance and repairs with suitable mechanical knowledge, tools, and workshop skills.

Scheduled Maintenance, Engine Repair, and Gearbox Service

The Periodic Maintenance Chart links scheduled work to procedures for spark plugs, valve clearance, drive-chain slack, brake fluid, and oil changes. Valve adjustment includes shim-selection charts. Torque tables list fastener settings, while exploded views identify lubrication and locking-agent requirements.

Engine coverage extends through cylinder-head removal, valve-guide and seat repair, piston-ring inspection, and crankcase separation. Bearing-selection tables support crankshaft and connecting-rod work; clutch stack-height checks and transmission assembly illustrations address plate selection, gear orientation, and the positive neutral finder.

The non-return camshaft-chain tensioner has specific resetting precautions: retightening a partly loosened tensioner can damage both the tensioner and chain. Cylinder-head tightening instructions distinguish new and reused bolts within a staged procedure.

Keihin Carburetors and KLEEN Emissions

Carburetor procedures cover service fuel-level measurement with Fuel Level Gauge 57001-1017, float adjustment, cleaning, and synchronization. Compressed air applied to an assembled carburetor can crush its floats or damage the vacuum-piston diaphragms.

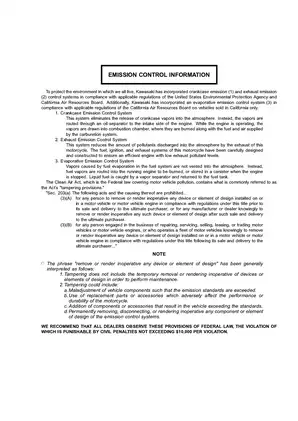

KLEEN coverage explains secondary-air injection, catalytic converters, and IC-igniter-controlled fuel-cut valves. California evaporative-emission coverage includes separator and vacuum-valve checks. The evaporative-emission diagram and cable, wire, and hose routing illustrations help prevent incorrect reconnection during reassembly.

Cooling-System Tests and Oil-Circuit Diagnosis

The Coolant Flow Chart and Engine Oil Flow Chart accompany radiator, water-pump, thermostat, oil-pump, and relief-valve procedures. Cooling-system pressure tests and oil-pressure measurements help distinguish leakage or circulation problems from component wear; water-pump mechanical-seal failure calls for pump replacement.

Brake Repair, Suspension Service, and Frame Inspection

Brake sections include caliper and master-cylinder disassembly, seal inspection, pad replacement, and bleeding. Fork work covers oil changes, seals, and bushings, with the damper-cylinder unit kept assembled. Rear-shock coverage addresses adjustment, removal, inspection, and replacement.

Wheel-bearing checks, tire fitting, drive-chain riveting, steering-bearing replacement, fairing removal, and frame inspection are also covered. Reference only — always consult a certified technician before performing service on this equipment, particularly braking and steering work.

Ignition Tests and Market-Specific Wiring Diagrams

Electrical coverage includes the Hall-type speed sensor, rare-magnet alternator, IC igniter, radiator fan, fuel pump, and starter motor. Procedures specify resistance, voltage, and peak-voltage tests, with tools such as Kawasaki Hand Tester 57001-1394.

The Ignition System Circuit and Electric Starter Circuit supplement wiring diagrams for U.S./Canada, Australia, Malaysia, and other markets. These diagrams connect component tests with wire colors and connector layouts. The troubleshooting guide groups possible causes for starting problems, overheating, shifting faults, poor braking, and battery discharge.

Selected Fuel-Level, Ignition, and Coolant Specifications

These examples are a small selection of the manual’s service specifications. The Keihin carburetor service fuel level is 4.5 ± 1 mm below the mark on the carburetor body. Ignition timing advances from 10° BTDC at 1,100 rpm to 37.5° BTDC at 5,000 rpm.

Total coolant capacity is 2.9 L, including the radiator and engine with the reserve tank filled to its full-level mark.

PDF Navigation, Diagram Detail, and Page Count

Text search and wiring-diagram detail: The PDF’s character encoding prevents normal text searching, and it has no embedded PDF bookmarks. Small wire-color labels and connector details in the wiring diagrams are readable when enlarged.

The download contains one printable, English-language PDF with 374 pages. This total includes both covers, the introductory pages, and six blank separator pages.
