Honda Models Covered & Key Technical Specifications

Model & Model Code: FourTrax 350 4x4 (TRX350FM)

Model Year: 2005

Sub-models / Variants: U.S. and Canadian versions (A/CE), both with a foot-shift five-speed transmission and reverse


  • Engine displacement: 329.1 cm³ (20.08 cu-in)

  • Fuel tank capacity: 13.9 ℓ (3.67 US gal)

  • Fuel reserve capacity: 3.1 ℓ (0.82 US gal)

  • Valve clearance: 0.15 mm (0.006 in) cold

  • Compression ratio: 8.8:1

  • Dry weight: 238 kg (525 lbs)

  • Maximum weight capacity: 220 kg (485 lbs)

Honda Manual Features & Selected Content Preview

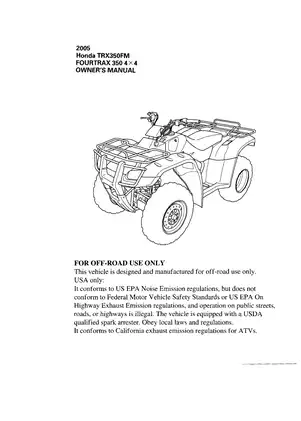

Honda's owner's manual for the 2005 TRX350FM FourTrax 350 4x4 covers operation, scheduled maintenance, and owner-level troubleshooting for U.S. and Canadian models (P/N 31HN5650).

Printable PDF with Contents and Index

Text search and navigation: PDF text search and embedded bookmarks are unavailable. The manual's contents pages and alphabetical index list the printed page numbers for sections and topics.

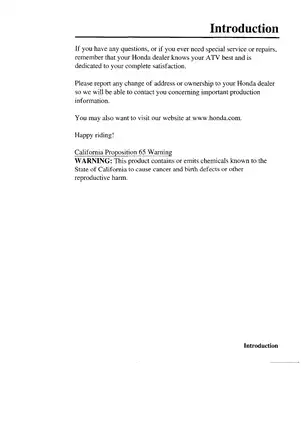

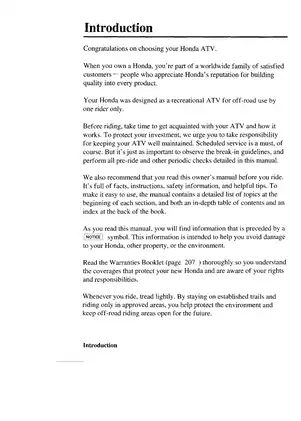

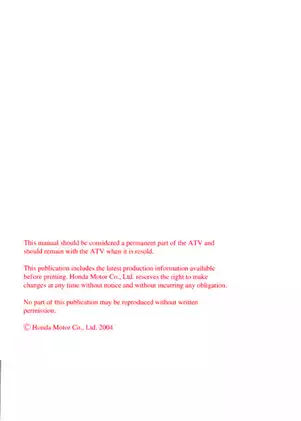

The download is one printable English-language 242-page PDF. The total includes nine opening pages, including the front cover, 228 numbered manual pages, four unnumbered Quick Reference pages, and the back cover.


Riding Controls, Routine Service, and Troubleshooting

These are selected topics from the manual. It also explains how to use the accessory socket and prepare the ATV for its break-in period.

  • Fluids and filters: Step-by-step instructions for changing the engine oil and filter, replacing rear final gear case and differential oil, and servicing the foam air cleaner.
  • Clutch and cables: Shift-activated wet multiplate clutch adjustment, reverse lock system checks and adjustment, throttle freeplay adjustment, and carburetor choke cable inspection.
  • Engine upkeep: Idle-speed adjustment, spark plug inspection and replacement, spark arrester purging, and valve-clearance specifications.
  • Brakes and chassis: Front hydraulic and rear mechanical drum brake checks, lining-clearance and control-freeplay adjustments, tire inspection, and driveshaft boot checks.
  • Battery and troubleshooting: Battery removal, storage, and charging, fuse replacement, and symptom-and-cause tables for starting and running problems.
  • Riding and loading: Pre-ride inspections, gear shifting and reverse operation, cargo and towing limits, and riding techniques for hills, obstacles, and water crossings.

The routine maintenance sections suit owners with basic mechanical skills and the necessary tools. Honda directs more demanding work to qualified mechanics.

Controls, Riding, and Vehicle Identification

The instrument-panel section distinguishes the Canadian multifunction display from the U.S. indicator setup. It explains the speedometer, odometer, tripmeter, hourmeter, and clock, along with the three-position fuel valve, choke knob, starting primer, and recoil starter.

Component location views and shift-pattern drawings support the operating instructions. The vehicle identification section shows where to find the frame and engine serial numbers and color label for parts inquiries.

Honda's riding guidance covers protective gear, load limits, and precautions for terrain where the ATV can lose traction or overturn.

Maintenance Schedule and Engine Service

The maintenance schedule distinguishes owner tasks from work requiring additional service data or dealer attention. Its notes cover dusty, wet, and muddy riding, and the maintenance record provides space to track completed work.

Oil-viscosity charts accompany the engine oil procedures. Incorrect oil filter installation can cause serious engine damage, and wringing out the foam air filter can tear it. The manual also covers servicing the air cleaner housing drain tube.

Throttle illustrations identify the cable adjuster, and the idle-speed procedure calls for a tachometer. Honda refers valve adjustment, worn clutch friction discs, and high-altitude jet installation to the separate service manual, which also covers internal engine and transmission repairs.

Drum Brakes, Tires, and Underbody Checks

Front brake illustrations show where to inspect lining thickness and reach the shoe adjusters. The checks help owners distinguish worn linings from excess clearance and recognize when lever freeplay after adjustment calls for dealer bleeding.

Rear brake coverage includes separate pedal and lever adjustments, an external shoe-wear indicator, and a water-drain check. Underbody inspections cover the engine guard, skid plates, and driveshaft boots.

The tire section distinguishes temporary and permanent repairs. Honda includes wheel removal and installation for emergencies and assigns routine wheel removal to a qualified mechanic.

Starting Problems, Electrical Checks, and Storage

The troubleshooting tables distinguish a starter that does not turn from an engine that cranks without starting. They also address poor running. Oil temperature warning checks cover restricted airflow, oil leaks, and low oil level.

Electrical coverage centers on the battery, fuses, and indicator functions. For circuit tracing, consult a service manual with wiring diagrams. The owner's manual includes transport tie-down illustrations, storage and return-to-service instructions, and reference tables for selected fastener torques and electrical ratings.

Sample Gear Oil Capacities and Cold Tire Pressures

The oil-change instructions specify separate refill quantities after draining: 2.9 US oz (85 cm³) for the rear final gear case and 8.2 US oz (241 cm³) for the differential.

The recommended cold pressure is 3.6 psi (25 kPa) for both front and rear tires, with or without cargo. The no-cargo table also lists a minimum of 3.2 psi (22 kPa) and a maximum of 4.0 psi (28 kPa).
