Chevrolet Corvette 2005–2009 Service Manual Set + Owner Manual (P/N 15865975 A)

The service chapters pair workshop procedures with separate circuit and component-location references. The Owner Manual provides operating instructions and scheduled maintenance; the general troubleshooting, code lists, service-reminder reference, and informal brake guide are separate supplements.

Coverage: Repair information centers on 2007 configurations. The earlier electrical books and the 2006 instrument-panel chapter retain their own year-specific coverage; this is a mixed-year collection rather than a complete service-manual series for every listed year.

PDF Search, Bookmarks, and Wiring Detail

Searching and diagrams: Service text and the Owner Manual support text search; many schematic labels do not. The generic and GM code-list PDFs have no searchable text. Only the Owner Manual has embedded bookmarks. Dense wiring pages require zooming to read small pin, connector, and wire-color labels.

The ZIP contains 54 printable PDFs totaling 8,245 pages. That total includes the overlapping disc-brake copy, all listed supplements, 232 section-title and figure-caption pages in the three wiring books, and three notes pages in the Owner Manual.

Engine, Driveline, and Body Repair Coverage

The following highlights are selected coverage, rather than a complete contents list. Further topics include SIR fault diagnosis and exhaust flow-control valve testing.

• Engine repair: LS2 and LS7 removal, teardown, cylinder-head repair, timing-chain service, compression testing, cylinder-leakage testing, and oil-pressure diagnosis.

• Manual transmission: Tremec diagnosis and replacement, with Z06-specific disassembly, synchronizer overhaul, bearing inspection, and shimming.

• Automatic transmission: 6L80-E solenoid/TCM testing, line-pressure checks, cooler flushing, and Service Fast Learn Adapts.

• Brake service: JL9/J55 and J56 caliper overhaul, rotor runout correction, hydraulic bleeding, and the ABS automated bleed procedure.

• Electrical troubleshooting: Wiring diagrams, connector-end views, fuse-block layouts, and ground/splice references for engine, chassis, and body circuits.

• Roof systems: Manual and power folding-top diagnosis, hydraulic-cylinder and pump replacement, adjustment, hydraulic bleeding, and removable roof-panel service.

• Suspension and steering: F55 electronic suspension diagnosis, wheel-bearing/hub replacement, power-steering testing, and hydraulic-system bleeding.

The repair chapters suit technicians comfortable with scan-tool diagnosis, precision measurement, and GM special tools; the Owner Manual addresses routine operation and owner-level maintenance.

Circuit References and Fault Diagnosis

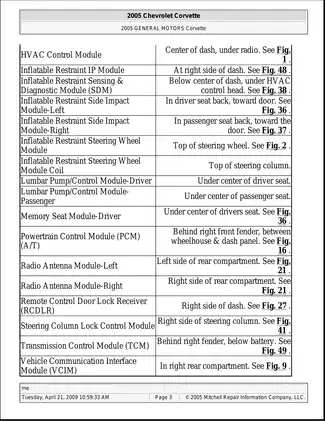

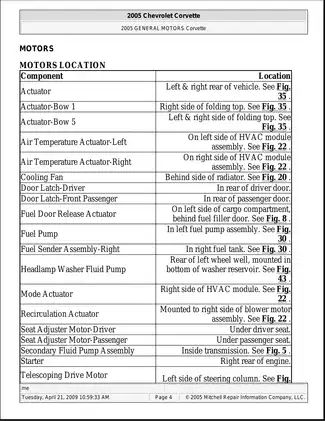

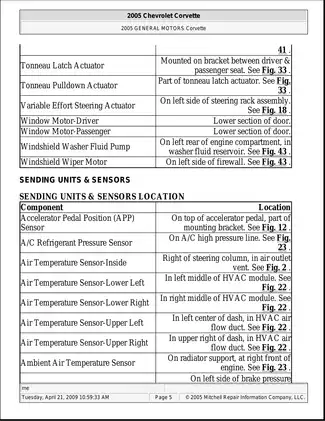

The wiring and location books let you follow a circuit to its connector, fuse, ground, or splice when investigating an open circuit or parasitic draw. The location references contain 53 numbered figures for 2005 and 76 for 2007.

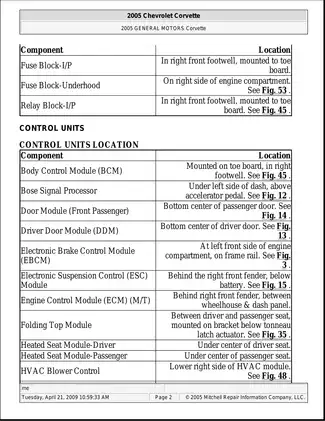

The 2005 locator distinguishes the automatic-transmission Powertrain Control Module (PCM) from the manual-transmission Engine Control Module (ECM). The 2007 reference separates engine applications and identifies Body Control Module (BCM) and Electronic Brake Control Module (EBCM) locations.

The wiring books contain 72 numbered figures for 2005, 79 for 2006, and 78 for 2007. Examples include Automatic A/C Circuit, Anti-lock Brakes Circuit, Forced Entry Circuit, and Cooling Fan Circuit.

Engine-performance drawings distinguish automatic and manual configurations in the 2005 book, and LS2/LS7 applications in the later books. Transmission drawings identify shift-solenoid circuits and the 2005 TCC PWM solenoid.

Beyond the drawings, the engine-electrical chapter provides battery-drain testing, charging-system checks, and starter diagnosis. System-specific DTC tables, scan-tool data definitions, and diagnostic repair verification support fault isolation.

Engine and Driveline Repair Depth

Internal-engine coverage extends through block, crankshaft, bearing, piston, and valve-train inspection to reassembly and prelubing. The LS7 chapter adds remote oil-tank service and an Engine Lubrication Flow diagram for its dry-sump system.

The LS7 cleaning precautions explain how chlorinated solvents can damage titanium components through stress-corrosion cracking.

Cooling-system procedures cover thermostat diagnosis, pressure-cap and leak testing, and radiator and water-pump replacement. Clutch work includes step-by-step replacement instructions, hydraulic bleeding, and pressure-plate adjustment.

Rear-axle instructions distinguish base and Z06 pinion-shim selection and side-bearing assembly. Differential replacement separates vehicles with and without RPO KNR, with additional cooler service, driveline-support overhaul, and wheel-drive-shaft joint repair.

Automatic-Transmission Testing Limits

The automatic-transmission chapter concentrates on diagnosis, testing, and related service rather than a complete internal rebuild. It includes simulated input/output speed-sensor tests and the DT-47825 Control Solenoid Test Plate procedure.

Its connector-sleeve warning explains how an incorrectly positioned test harness can permanently damage the TCM.

Chassis, Climate Control, and Body Setup

Z06 aluminum-frame thread repair receives its own procedure. Component-specific torque tables, clearances, wear limits, fluid recommendations, and electrical test values accompany the applicable service work.

HVAC instructions cover refrigerant recovery and recharging, compressor oil balancing, and actuator recalibration. Folding Top Schematics, hydraulic-hose identification, and fault charts support diagnosis of a roof that will not open or close.

Door-window adjustment and reinitialization, memory-seat calibration, and telescoping-column calibration address setup after component replacement.

Observe the manual’s electrical-isolation, SIR-disabling, and vehicle-support precautions before starting repair work.

A Preview of Engine Clearances and Tune-Up Data

Both engine-mechanical chapters list a spark plug gap of 1.02 mm (0.04 in) and camshaft end play of 0.025–0.305 mm (0.001–0.012 in).

The LS7 specification table distinguishes connecting-rod bearing clearance in production, 0.023–0.065 mm, from the service range of 0.023–0.076 mm.
