1980–1983 Honda Gold Wing GL1100 Standard, Interstate & Aspencade Service & Repair Manual

The 1980–1983 Honda Gold Wing GL1100 service manual covers the Standard, GL1100 I Interstate, and Aspencade. Procedures are based on the Standard, with differences between model years and touring versions called out in the text.

• Engine repair: Engine removal and installation, cylinder-head service, valve-guide replacement, valve-seat inspection, crankshaft and piston inspection, and oil-pump service.

• Fuel system: Carburetor disassembly and reassembly, synchronization, pilot-screw adjustment, accelerator-pump checks, and fuel-pump pressure and delivery testing.

• Cooling system: Radiator-cap and cooling-system pressure tests, thermostat inspection, radiator removal, water-pump replacement, and coolant service.

• Clutch and drivetrain: Clutch inspection, crankcase separation, shift-mechanism service, transmission-shaft inspection, and final-drive backlash and preload adjustment.

• Suspension and steering: Front-fork overhaul, rear-shock service, steering-head bearing replacement, swingarm work, and anti-dive inspection for the applicable forks.

• Brake service: Caliper and master-cylinder inspection, brake-fluid replacement, metal brake-line replacement, and bleeding procedures for the unified brake system.

• Electrical diagnosis: Ignition, charging and starter tests, instrument troubleshooting, self-canceling turn-signal checks, and wiring diagrams organized by model and year.

This manual is suited to mechanics familiar with standard motorcycle service methods; it assumes that knowledge rather than teaching basic mechanical principles.

Engine, Clutch and Final-Drive Repair

Internal engine coverage extends to crankcase disassembly, piston-ring and cylinder inspection, and main and connecting-rod bearing selection. The Main Bearing Selection and Rod Bearing Selection charts relate component codes to bearing colors, with clearance checks supporting the selection.

The service notes distinguish work possible with the engine installed from jobs requiring removal. Most clutch work can be performed in the frame, but clutch outer-drum replacement requires engine removal. These distinctions help establish the extent of disassembly before a repair begins.

Final-drive coverage goes beyond lubricant changes to seal replacement, pinion and final-gear preload checks, and backlash measurement. Tool references include the final gear retainer wrench, P/N 07910-3710000.

The timing-belt section warns that turning a camshaft with the belts removed can bend valves. Engine-removal cautions also identify the exposed vacuum-advance controller: bending its shaft can disable advance operation and require pulse-generator assembly replacement.

Carburetors, Emissions and Cooling

Carburetor procedures address the vacuum pistons, float assemblies, throttle linkage, and accelerator pump. The pilot-screw section documents the idle-drop adjustment method, while maintenance coverage includes synchronization, valve-clearance inspection, compression testing, and oil-pressure testing.

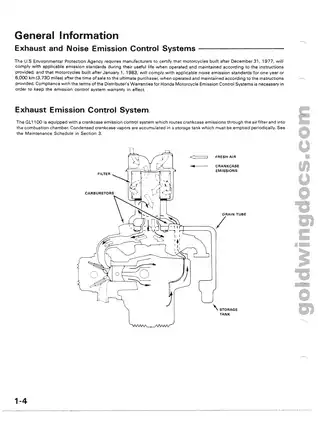

Emission-control routing shows the crankcase breather and collection tank. Cooling-system troubleshooting distinguishes thermostat, radiator-cap, fan, and water-pump faults, supported by pressure-test procedures and component inspections.

Suspension, Wheels and Unified Brakes

Fork service distinguishes the earlier seal-replacement procedure from the later fork-separation and anti-dive work. Steering-stem instructions include bearing replacement and adjustment; rear-suspension coverage includes shock service, swingarm bearings, and driveshaft-joint lubrication.

For 1983 models, the brake section explains how the foot pedal operates the right front and rear brakes while the hand lever operates the left front brake. The pressure control valve is a replacement component, not an overhaul item.

Wheel removal, bearing replacement, inspection, and balancing are covered. Tubeless tire removal, repair, and remounting are assigned to a separate Tubeless Tire Manual. Brake and air-assisted suspension work requires the vehicle-support and pressure precautions specified for the relevant procedure.

Electrical Diagnosis and Touring Equipment

Charging-system checks include battery condition, regulator/rectifier testing, and stator continuity inspection. Components can be tested on the motorcycle, while alternator service requires engine removal. Starter coverage includes relay checks, motor inspection, and starter-clutch inspection.

Instrument troubleshooting separates the earlier rear-suspension pressure-warning system from the 1983 Aspencade LCD panel and its air-pressure display. Aspencade compressor coverage distinguishes the earlier pressure-gauge arrangement from the later selector and LCD system, including pump, drier, valve, and switch checks.

Ten model/year wiring diagrams include the 1980 Standard Wiring Diagram and 1983 Aspencade Wiring Diagram, with wire-color codes and switch-continuity tables. The accessories section adds fairing and bracket removal, cable and harness routing, luggage mounting illustrations, and audio-system troubleshooting with its own wiring diagram.

A Few Fluid and Cylinder-Head Specifications

These examples are a small selection of the manual’s capacity and assembly data. Fuel capacity is 20 liters, and cooling-system capacity is 3.4 liters.

Engine oil capacity is 4.0 liters at disassembly or 3.2 liters after draining. The cylinder-head installation drawing specifies 55 N·m (40 ft-lb) for the 10 mm head bolts, with molybdenum-disulfide grease on their threads and bolt-head undersides.

PDF Search, Bookmarks and Page Coverage

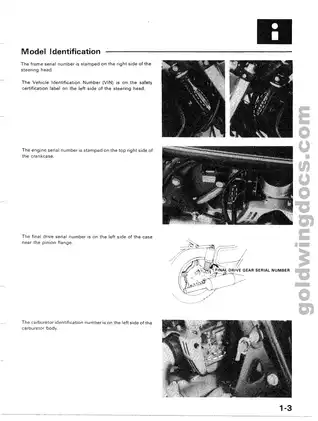

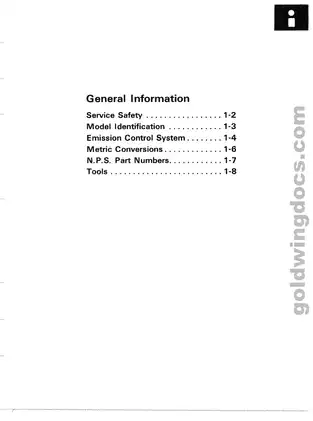

Text search and diagram detail: OCR text search works on most pages, although recognition errors can prevent matches; four pages have no text layer. Thirty embedded bookmarks link to most service sections and the individual wiring diagrams. Small wiring labels require enlargement, and some fine print remains soft.

The download contains one printable English-language PDF with 356 pages total: 355 pages across the manual’s 19 sections plus the opening “About This Manual” page, which is already included in that total.
