Jaguar S-Type 2005 Owner's Manual (P/N JJM 18 02 16 502)
238 Pages • 1 Printable PDF (English) • Download
Jaguar Models Covered & Key Technical Specifications
Models: S-Type
Sub-models / Variants: V6 gasoline engine, V8 engine (naturally aspirated and supercharged), S-Type R, Automatic transmission (six-speed J-gate), Manual transmission (five-speed), Models with navigation screen, Models with adaptive cruise control
Model Year: 2005
-
Engine oil capacity: V6: 6.5 liters (13.7 US pints); naturally aspirated V8: 6.0 liters (12.7 US pints); supercharged V8: 6.8 liters (14.4 US pints), all including the oil filter
-
Fuel tank capacity: 18.4 US gallons (69.7 liters)
-
Wheel nut torque: 92 lbf.ft (125 Nm)
-
Overall length: 192.6 inches (489.2 cm)
-
Engine oil specification: Castrol 5W-30 (API SL/EC and ILSAC GF3)
-
Battery cell type: CR2032 (key transmitter)
Jaguar Manual Features & Selected Content Preview
Jaguar's 2005 S-Type owner's handbook, P/N JJM 18 02 16 502, was published in October 2004. Coverage includes V6 gasoline engines, naturally aspirated and supercharged V8 engines, and operating information for automatic and manual transmissions. The handbook focuses on vehicle operation, owner maintenance and roadside assistance.

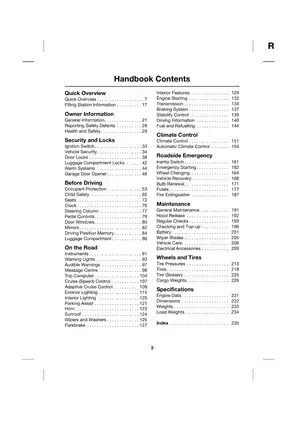

Searchable Text, Bookmarks and Page Contents
Finding controls and maintenance topics: Searchable PDF text is supported by chapter and topic bookmarks. Some parent headings organize subtopics without their own page destination. Small labels in the fuse-position drawing are best read when enlarged; the associated circuit tables support text searches.

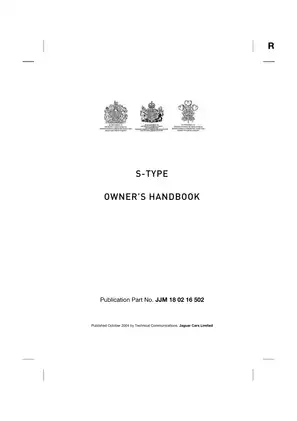

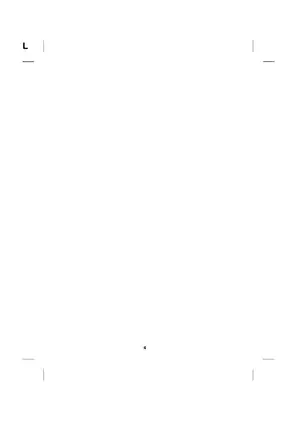

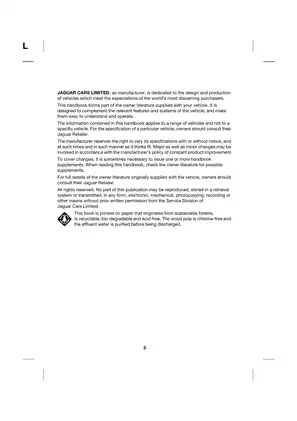

The download contains one printable 238-page PDF, including one title page, one publication-notice page and 12 otherwise blank divider pages. These pages are already included in the total.
Controls, Owner Checks and Roadside Assistance
The following is a selection of covered topics. Additional sections explain sunroof operation and folding the rear seatbacks.
-
Driver information and assistance: Instrument-panel illustrations and warning-message tables, trip-computer functions, conventional and Adaptive Cruise Control, parking assist, Anti-lock Braking System and Dynamic Stability Control operation.
-
Cabin adjustments: Driving-position memory, steering-column and pedal adjustment, dual-zone climate controls, rain-sensitive wipers and procedures for restoring window anti-trap protection.
-
Security and convenience: Anti-theft operation, key-transmitter battery replacement, emergency trunk release and HomeLink garage-door transceiver programming, including compatibility with rolling-code equipment.
-
Occupant protection: Advanced Restraints Technology System (ARTS), passenger occupancy sensing, seat-belt checks and illustrations of LATCH child-restraint attachments and top-tether anchorages.
-
Roadside procedures: Step-by-step instructions for inertia-switch reset, jump starting and wheel changing, alongside recovery information, halogen bulb replacement and fuse identification and replacement.
-
Owner maintenance: Separate V6 and V8 service-point illustrations, fluid checks and capacity tables, battery disconnection and reconnection, and tire-pressure and fitment information.
Written for S-Type owners, the handbook introduces everyday controls and routine checks without requiring workshop diagnostic training.
Cabin Controls and Driving Systems
Warnings and assistance: Message-center entries explain warning priorities and conditions such as restricted performance, transmission faults and an obstructed ACC sensor. Parking-assist drawings identify detection areas. These sections explain vehicle behavior and driver responses rather than diagnostic trouble codes or system repair.
Transmission operation: The J-gate section explains automatic and manual gear selection, Sport mode and reduced operation in limp-home mode. Manual-transmission instructions address gear selection and clutch use.
Functions after power interruption: Battery-reconnection information identifies the electric parking-brake initialization, window anti-trap reset and seat-memory recalibration that may be needed afterward. Owners can use this reference to distinguish required resets from normal control operation.
The climate chapter describes the dedicated LCD panel and independent temperature zones. Audio receives an introductory overview; detailed audio and touchscreen/navigation instructions belong to separate handbooks.
Security and Occupant Protection
Locking coverage distinguishes single-stage from two-stage unlocking and explains linking a stored driving position to a key transmitter. Replacement key and transmitter programming requires a Jaguar retailer; the included HomeLink instructions concern the garage-door transceiver.
The ARTS section describes front, thorax and curtain airbags, with passenger-occupancy information explaining the deactivation indicator. LATCH drawings show lower attachments and top-tether arrangements. Airbag servicing and repair are assigned to a Jaguar retailer.
Roadside Help and Maintenance Boundaries
Electrical reference: Fuse-box location views, a fuse-and-relay position drawing and circuit tables connect fuse locations with their ratings and protected equipment. This provides a practical reference when identifying the fuse associated with an inoperative circuit. The handbook does not supply full electrical wiring diagrams.
Lighting instructions distinguish replaceable halogen bulbs from optional HID Xenon units requiring retailer attention. Jaguar also recommends retailer replacement of cartridge fuses and relays.
Recovery and battery cautions: The recovery section identifies transmission-damage risks when an automatic model is towed beyond the permitted limits with its rear wheels on the ground. Battery precautions explain the risk of permanent instrument-cluster damage if power is disconnected while the ignition circuit remains live.
Follow the handbook's precautions concerning corrosive battery acid and explosive gases during battery handling and emergency starting.
Routine checks: Engine-bay drawings identify V6 and V8 reservoirs and dipsticks. Maintenance coverage includes lubricant requirements, fluid-level checks and wiper care, supported by tire tables, dimensions and load limits. Internal engine or transmission repair calls for separate workshop documentation.
Examples of Climate Settings and Coolant Requirements
For vehicles with the dedicated LCD climate-control panel, the AUTO operating range is 61°F to 89°F. Driver and passenger temperatures can be selected independently.
Cooling-system information specifies equal proportions of water and orange Extended Life Coolant antifreeze meeting WSS M97B44. The stated frost protection for this 50/50 mixture extends to -40°F (-40°C).
