1995-1997 Jaguar XJ6 & XJ12 Service Technical Guide (200 P.)
Technical specifications, valve clearances, and precise torque calibration for XJ6, XJ Sport, XJR, Sovereign, Daimler Six, Vanden Plas, XJ12, and Daimler Double Six. Comprehensive engine, transmission, and chassis diagnostics. PN JJM 10 15 12/50
Manual Preview

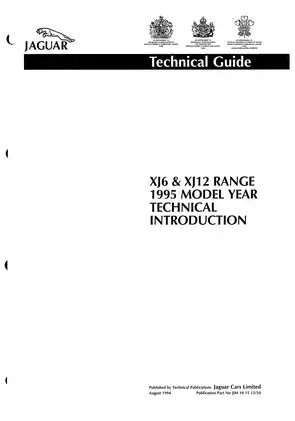

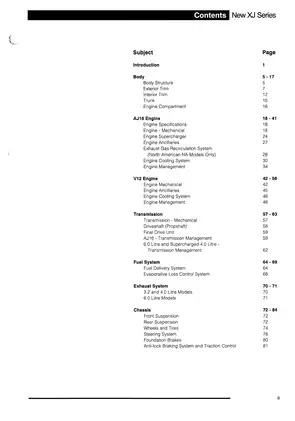

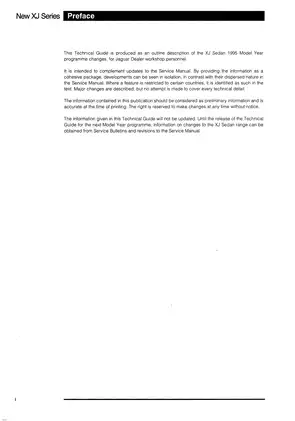

Sample pages from the 1995-1997 Jaguar XJ6 & XJ12 Service Technical Guide (200 P.) manual
Purchase & Download
Models Covered & Key Technical Specifications
Jaguar XJ6, XJ12 & XJR — 1995–1997 Precision Diagnostics & Maintenance | Technical Service Vault.
- Designated Bolt Torques: The main engine radiator mounting bracket specifies 40 to 50 N·m (29.5 to 37 lbf.ft) is calibrated to the structural clamping requirement Mapping.
- Verified Volume Data: For fuel system operation, 90 litres (23.8 US gallons) supports maximum fuel tank volume Configuration.
- Nominal Clearance Data: Valve clearance on inlet and outlet establishes 0.15–0.19 mm (0.006–0.007 in) are specified as the cold lash setting Benchmarks.
- Design Output Rating: The maximum power output of the 3.2 L AJ16 engine is designed for 219 PS (215.9 BHP; 161 kW) at 5100 rpm in the baseline specification Range.
- Engineered Processing Speed: Primary torque rating reaches 315 N·m (232.3 lbf.ft) at 4500 rpm provides the crankshaft output Sequences.
- Essential Coupling Torques: The cylinder head bolt torque specifications defines 110 to 120 N·m for proper head gasket clamping load in the assembly Baseline.
Professional Workshop Service Manual & Technical Specifications
Essential Technical Reference Manual: 1995 Jaguar XJ6 & XJ12 Service Technical Guide Field-Reference
Engineering-Metrics: Jaguar XJ6, XJ12 & XJR (1995–1997 X300) // Service-Level: Precision Diagnostics & Maintenance / Complete technical data // Engineering-Metrics: Professional workshop documentation.
| Component System | Documentation Scope | Reference Materials |
|---|---|---|
| Engine Specifications | AJ16 6-cylinder (3.2L, 4.0L NA, 4.0L SC) and V12 engine configurations | Torque specifications, power outputs, compression ratios documented |
| Transmission Systems | Manual and automatic transmission details with control modules | Fluid temperatures, shift patterns, diagnostic codes included |
| Fuel and Exhaust | Delivery systems, evaporative control, catalytic converters | Fuel tank capacity (90 liters), system pressure specifications provided |
Engineering chapters address engine and transmission systems, covering mechanical components including the supercharged 4.0 litre variant. Electrical and climate control systems, including air conditioning and heating circuits with fluid specifications, receive comprehensive attention. Suspension and braking systems, encompassing anti-lock braking and traction control integration, document their functional architecture. Security features, entertainment systems, and occupant protection apparatus, including supplementary restraint air bag deployment logic, are detailed throughout the guide. Occupant comfort systems integrating heated seats, power adjustments, and electronic memory functions represent additional covered subjects.
Reference data is included for engine management systems across different emissions standards, detailing sensor locations and control module pin configurations. This manual documents torque specifications for critical fasteners to ensure proper assembly and safe operation. Diagnostic procedures are covered for troubleshooting engine, transmission, and chassis systems using the onboard diagnostics interface. Wiring diagrams are provided for power distribution, lighting circuits, and integrated electronic control systems. Fuel system procedures are documented for component service and maintenance intervals.
The technical guide serves workshop personnel requiring knowledge of the 1995 model year XJ Sedan program changes, extended wheelbase variants, and comprehensive system updates. Component specifications across engine management, transmission control, and climate control modules enable accurate service and diagnostics. The documentation provides complete technical architecture for all major vehicle systems and subsystems.
