1998 Jaguar XJ8 / XJ8L / XJR / Vanden Plas Technical Guide (P/N JJM 18 15 12/80)

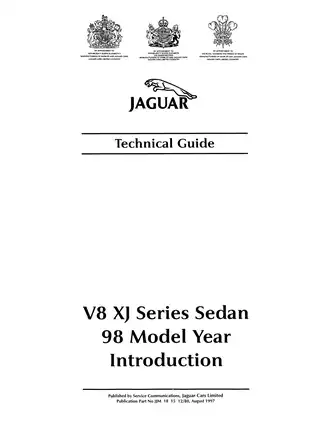

Jaguar Cars Limited’s V8 XJ Series Sedan Technical Guide, P/N JJM 18 15 12/80, August 1997, introduces the 1998 XJ8, XJ8L, XJR, and Vanden Plas. The equipment tables distinguish US, Canadian, and Mexican specifications; the XJ8L is US-only, and the XJR is excluded from the Mexican lineup.

PDF navigation and diagram detail: Embedded bookmarks link to chapters and subsections. PDF text search is unavailable. System and network diagram labels are legible, with zoom helpful for smaller references.

• AJ-V8 engines: Naturally aspirated and supercharged construction differences, valve timing diagrams, Eaton M112 supercharger operation, and engine specification tables.

• Fuel and emissions: Single- and twin-pump fuel delivery, on-board refueling vapor recovery (ORVR), evaporative emission control, and exhaust gas recirculation (EGR).

• Cooling and lubrication: Intercooler circulation, SC coolant pump and radiator changes, engine oil cooling, and cooling-fan control data.

• Transmission and driveline: 5HP24 and W5A580 installations, electronic shift control, limp-home behavior, driveshaft changes, and the 14HU final drive.

• Chassis: Front and rear suspension changes, adaptive damping, ABS hydraulic modulator integration, and Sport/Comfort variable-ratio steering rack identification.

• Electrical systems: CAN, SCP, and ISO 9141/2 network diagrams, harness layouts, fuse and relay identification, and immobilizer operating logic.

• Occupant protection: Side airbags, pyrotechnic seat belt pre-tensioners, side impact sensing modules, and single point sensor diagnostic behavior.

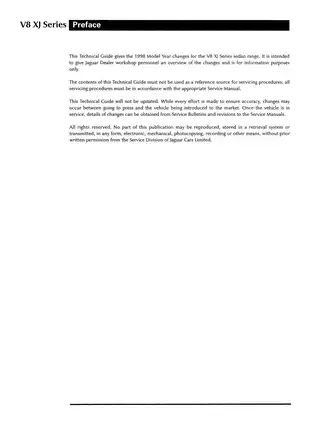

Jaguar prepared this introduction for dealer workshop personnel reviewing the model-year changes; repair and servicing procedures require the separate Service Manual.

AJ-V8 and Supercharger Differences

The engine comparison separates the NA engine’s variable valve timing from the SC engine’s fixed intake-cam sprockets. SC-specific piston, cylinder-head gasket, and timing-cover changes accompany valve-clearance, ignition, and fluid-capacity specifications.

The Supercharger System Schematic shows the Eaton M112, bypass valve actuator, and twin intercoolers. Engine Control Module (ECM) coverage explains SC coolant-pump relay monitoring and the reduced operating range of SC misfire detection, including the protective responses to certain detected faults.

Fuel Delivery, Cooling, and Lubrication

NA models use one fuel pump; SC models use two. The guide explains when the ECM brings the second pump into operation and how the ORVR vent system controls refueling. It also identifies a practical limitation: the filler-neck check valve prevents complete tank draining through a siphon tube.

The Cooling System Schematic - 4.0 Liter SC identifies the intercooler radiator, coolant pump, and dedicated fill and bleed points. Lubrication coverage explains the oil cooler and its thermostat-controlled diverter valve.

Transmission Controls and Reference Data

The W5A580 section describes the valve block, dual linear selector switch, reverse-gear selection, and limp-home operation. Its technical data lists oil type, approximate fluid capacities, and gear ratios.

The 5HP24 discussion focuses on installation and management changes, referring readers to separate AJ-V8/5HP24 and XK8 technical guides for further detail. The externally similar mode switches for the two transmissions are not interchangeable.

Body, Steering, and Climate Control

Body coverage explains revised suspension supports, fascia attachments, and high-strength-steel reinforcement for side-impact resistance. The steering section distinguishes Sport and Comfort racks by their identification plates.

Climate-control coverage describes revised refrigeration hardware, heater circulation, and Air Conditioning Control Module (A/CCM) functions, including automatic windshield and mirror heating.

Hood-latch repair: The latch fasteners form threads in a plastic housing. Incorrect reinstallation can damage those existing threads, which is why the guide specifically addresses their engagement.

Electrical Networks, Immobilizer, and SRS

Separate NA and SC network diagrams show the connections between powertrain and body electronics. Harness Layout and Fuse Box and Relay Locations drawings accompany circuit assignments, helping technicians locate the relevant module and power supply before electrical repair.

The Body Processor Module (BPM) and Security and Locking Control Module (SLCM) descriptions explain their revised lighting and body functions. Immobilizer coverage follows the Key Transponder Control Module (KTCM) exchanges with the BPM and ECM that authorize cranking, ignition, and fueling.

The guide identifies Jaguar’s Portable Diagnostic Unit (PDU) for replacement-key programming and SRS fault retrieval without providing the programming procedure. SRS coverage explains single point sensor fault logging, warning-lamp behavior, and the backup audible warning. Electrical illustrations provide system relationships and component locations rather than a complete circuit-by-circuit wiring manual.

High-pressure fuel systems and heavy drivetrain components require the applicable workshop safety precautions. The occupant-protection section also addresses handling precautions for airbags and pyrotechnic pre-tensioners.

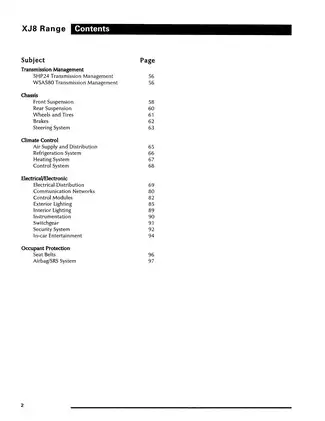

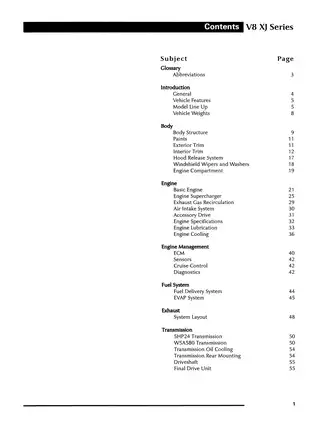

PDF Contents and Page Breakdown

Supplied as one printable English-language PDF. The 110-page total includes 102 numbered content pages, two cover/title pages, one preface page, four notes pages, and one closing publication page; these supporting pages are already included in the total.
