1985 Yamaha VMX12N/NC Service Manual Set with Supplements (P/N LIT-11616-VM-13)

This Yamaha VMX12 Service Manual Set, identified on the outer cover as LIT-11616-VM-13, combines the 1985 VMX12N/VMX12NC service manual with supplementary publications for VMX12S/SC, VMX12U/UC, VMX12E/EC, and VMX12H/HC. The supplements provide revised specifications and service information for use alongside the base manual.

• Engine repair: Engine removal and reinstallation, cylinder-head and camshaft service, crankshaft and connecting-rod inspection, bearing selection, and engine assembly procedures.

• Transmission and shaft drive: Wet-clutch and transmission inspection, middle gear service, universal-joint repair, final-drive overhaul, and gear-lash adjustment.

• Carburetion and V-Boost: Carburetor disassembly, inspection, synchronization, float-level adjustment, throttle cable cylinder service, and V-Boost adjustment.

• Cooling system: Coolant replacement, water-pump bearing and seal replacement, thermostat inspection, radiator service, and cooling-system pressure testing.

• Brakes and chassis: Caliper and master-cylinder repair, hydraulic-clutch bleeding, front-fork rebuilding, steering-head inspection, rear-shock service, and swingarm maintenance.

• Electrical diagnosis: Starting, charging, TCI ignition, fuel-pump, and V-Boost troubleshooting, supported by component tests and model-specific wiring diagrams.

Yamaha wrote the base manual primarily for dealers and qualified mechanics, assuming an existing understanding of motorcycle repair concepts and procedures.

Valve Train, Engine, and Transmission Repair

Periodic maintenance separates emissions-related inspections from general maintenance and lubrication. Valve-clearance adjustment includes intake and exhaust adjusting-pad selection charts and identifies Tappet Adjusting Tool YM-33961 for pad replacement.

The overhaul material covers valve guides and seats, piston and cylinder inspection, cam timing, and crankshaft and balancer-shaft bearing selection. Clutch and transmission sections extend to internal inspection and reassembly rather than routine external adjustments.

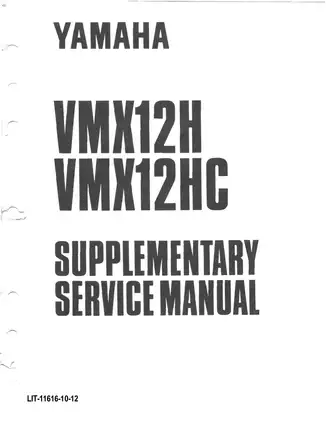

The S/SC and U/UC supplements add specification revisions, including camshaft and carburetor data. The H/HC supplement updates crankshaft, connecting-rod, and balancer-bearing information and documents screw-on oil-filter service.

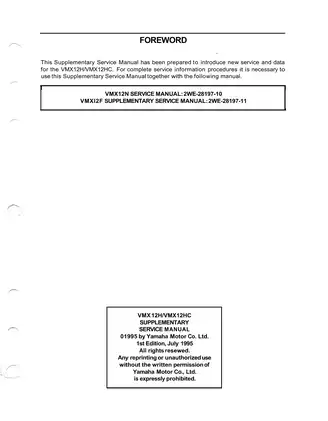

H/HC reference requirement: The H/HC foreword also calls for the separate VMX12F Supplementary Service Manual, 2WE-28197-11, which is not included in this download.

Middle Gear and Final Drive Setup

Middle gear service includes drive-pinion shim selection, bearing starting-torque checks, and exploded assembly views. Final-drive coverage adds ring-gear positioning, stopper clearance, and thrust-washer selection, with tool references such as Middle Drive Gear Holder YM-33222.

The shaft-drive troubleshooting chart distinguishes bearing rumble, gear whine, and other driveline symptoms, helping narrow the inspection before components are dismantled. The middle gear section also explains how overtightened bearing-housing bolts can reduce gear lash and damage the gears.

Carburetor Synchronization and V-Boost Diagnosis

A carburetor section view supports the inspection and adjustment material. Regional jetting tables distinguish USA, California, and European configurations, while throttle cable cylinder illustrations clarify the relationship between cable adjustment and throttle operation.

V-Boost coverage includes mechanical adjustment, system operation, a dedicated circuit diagram, and servo-motor testing. These sections help distinguish linkage or cable problems from electrical faults.

Water-Pump and Cooling-System Service

The coolant-flow diagram traces the radiator, bypass passages, thermostat, and water pump. Repair coverage includes pump bearings and mechanical seals, the coolant drain valve, cylinder-head water-jacket joints, and radiator-cap testing.

Brake, Clutch, and Fork Repair

The E/EC supplement supplies its own front-brake and front-fork material. Fork-tool listings distinguish the base manual’s seal-driver adapter YM-33964 from the E/EC adapter YM-8020, helping identify the tooling associated with each procedure.

Brake and hydraulic-clutch sections include seal inspection and bleeding procedures. Brake work, battery electrolyte, and hot coolant require the workshop precautions described in the manual.

Ignition, Fuel-Pump, and Wiring References

VMX12N/NC and VMX12E/EC wiring diagrams accompany system-specific troubleshooting charts and electrical test specifications, including pickup-coil checks. The E/EC supplement explains digital ignition control and its integrated fuel-pump control.

Cable-routing illustrations complement the electrical sections. The battery inspection material specifically warns that incorrect breather-hose routing can expose the frame to electrolyte and cause structural and cosmetic damage.

A Selection of Valve, Filter, and Cooling Specifications

These examples show a small selection of the service values contained in the publications.

For VMX12N/NC, cold valve clearances are 0.11–0.15 mm intake and 0.26–0.30 mm exhaust. Cylinder-head cover bolts are specified at 10 Nm (7.2 ft-lb).

The base manual lists 32 Nm (23 ft-lb) for the oil-filter bolt. The H/HC supplement specifies 18 Nm (13 ft-lb) for the oil filter itself, reflecting a different filter arrangement.

The base manual’s radiator-capacity specification, including all coolant routes, is 3.05 liters.

PDF Search, Bookmarks, and Publication Breakdown

Search and diagram detail: The PDF has an OCR text layer and embedded bookmarks for the base manual and all four supplements. Text search is only partially effective: some specification entries and many diagram labels are not searchable. Small wiring-diagram labels require enlargement.

Supplied as one printable, English-language 405-page PDF. The five publications account for 402 pages:

The 405-page total also includes three outer pages: a front cover, an advertising page, and a back cover. A second advertising page is already included in the base manual’s page count.
