Yamaha V-Max Service & Owner’s Manual Set, 1985–2000 (P/N LIT-11616-VM-13)

The supplements supply revisions to the service information and must be used with the earlier manuals specified in their forewords. The owner’s book covers operation, preventive maintenance, and minor repairs.

Service coverage: The M/MC publication is an owner’s manual, not an M/MC service supplement. The H/HC foreword requires VMX12F Supplementary Service Manual 2WE-28197-11, which is not included; complete H/HC service information therefore requires that publication as well.

PDF Search, Bookmarks and Wiring Detail

Search and navigation: The service PDF supports OCR text search, with recognition errors in some diagram labels. Both files have embedded bookmarks covering their chapters; the service file also has supplement bookmarks. The owner’s PDF has no text search. Small wiring-diagram labels require zooming.

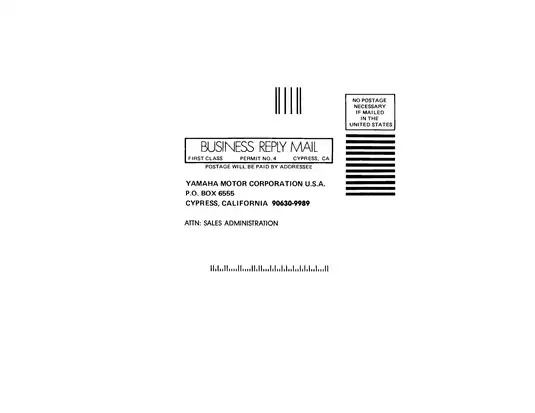

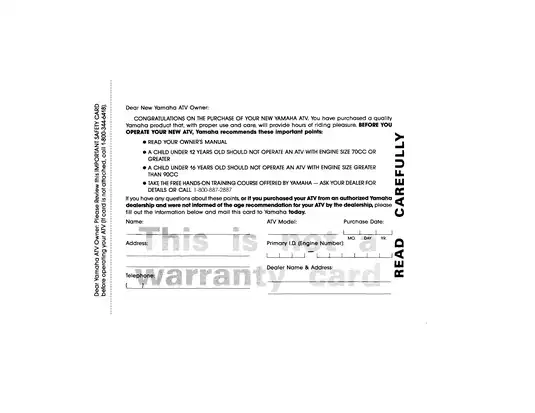

ZIP download containing two printable English PDFs: a 411-page service compilation and a 122-page owner’s manual, 533 pages total. These totals already include the covers, one promotional page, nine blank pages and three memo pages in the service file, plus a two-page unrelated safety/reply insert, three promotional pages and two blank pages in the owner’s file.

Engine, V-Boost and Chassis Service

This selection of contents highlights the main workshop areas. Additional topics include compression testing and cleaning and storage guidance.

• Engine repair: Step-by-step engine removal and remounting, crankcase disassembly, cylinder-head and valve work, cam timing, transmission inspection, clutch repair, and middle-gear adjustment.

• Carburetion and V-Boost: Carburetor removal, overhaul and synchronization, throttle-cable cylinder adjustment, V-Boost cable and valve settings, and servomotor testing.

• Cooling system: Water-pump bearing and seal replacement, thermostat inspection, coolant drain-valve service, radiator removal, and cooling-system pressure checks.

• Brakes and chassis: Wheel and bearing service, caliper and master-cylinder repair, brake and hydraulic-clutch bleeding, front-fork overhaul, steering-head service, swingarm inspection, and rear-shock replacement.

• Shaft and final drive: Troubleshooting charts, gear-lash measurement, shim selection, bearing inspection, final-drive disassembly and reassembly, and driveshaft removal and installation.

• Electrical diagnosis: Circuit diagrams and fault charts for starting, charging, ignition, lighting, signals, cooling fan, fuel pump, and V-Boost systems.

• Owner operation and maintenance: Pre-ride checks, cold- and warm-engine starting, load-based suspension settings, maintenance schedules, wheel procedures, and starting and overheating troubleshooting charts.

The owner’s book is suited to riders carrying out the checks, preventive maintenance, and minor repairs Yamaha assigns to owners. The service material was written primarily for Yamaha dealers and qualified mechanics with an understanding of motorcycle repair and the specified tools.

Supplement and Regional Differences

The identification tables and regional specifications help match carburetor, ignition, chassis, and electrical data to the correct build.

The S/SC and U/UC supplements mainly revise identification and specifications. E/EC adds updated brake information, dedicated front-fork removal through installation procedures, revised fork tools, a digital ignition-system description, and model-specific circuit and wiring diagrams.

H/HC adds oil-service information, revised crankshaft, connecting-rod and balancer inspection data, plus middle-gear and shaft-drive illustrations. Its regional tables distinguish USA, California, and EUR specifications.

Engine Inspection and Repair References

Internal engine coverage includes pistons and rings, crankshaft and connecting-rod bearings, the balancer shaft, oil pump, transmission gears, and shift components. Bearing-selection charts, valve-pad selection tables, component torque tables, and inspection limits accompany the procedures.

The manual identifies two specific repair traps: hammering the middle-gear U-joint can distort its collapsible collar and alter starting torque, while an incorrect tightening sequence during camshaft-clearance inspection can bend or damage the No. 3 cam caps.

V-Boost and Electrical Fault Tracing

The V-Boost troubleshooting charts separate mechanical cable or butterfly-valve problems from servomotor and control-unit faults. This gives the mechanic a way to investigate a failed key-on sweep beyond simply replacing the control unit.

Electrical coverage includes starter-motor inspection, interlock and relay tests, charging-system checks, ignition-component resistance tests, and oil-level gauge testing. The E/EC supplement explains the digital ignition system and its fuel-pump control functions.

Tools, Diagrams and Workshop Data

Named tools include the YM-33961 tappet adjusting tool and YU-08030 vacuum gauge. Final-drive work calls out the YM-01229 shaft holder and YM-01230 gear-lash measurement tool; ignition testing references the YU-33260 Electro Tester.

The H/HC supplement lists oil-filter wrench YU-38411 for US and Canadian service, with 90890-01426 for other markets.

Illustrations include the carburetor section view, four lubrication diagrams, N/NC and E/EC circuit and wiring diagrams, V-Boost circuit and operation charts, the shaft-drive troubleshooting chart, and cable and canister routing views. Exploded assembly drawings accompany the major disassembly sections.

Owner Checks and Service Boundaries

The owner’s manual explains fuel- and oil-level circuit checks, the speedometer and trip meter, tachometer, coolant-temperature gauge, V-Boost self-check, and sidestand/clutch interlock.

Its maintenance chapter covers oil and filter changes, final-drive oil, coolant, air-filter care, brake checks, battery service, fuses, bulbs, and wheel removal and installation. Yamaha assigns carburetor synchronization, valve-clearance work, V-Boost adjustment, and other specialized operations to dealer-level service.

Observe Yamaha’s support, fluid, and temperature precautions during brake, hydraulic-clutch, cooling, wheel, and suspension work. Work beyond the owner’s documented scope belongs with a qualified motorcycle mechanic.

Preview of Valve-Clearance and Thermostat Test Data

The N/NC base manual specifies cold valve clearances of 0.11–0.15 mm for intake valves and 0.26–0.30 mm for exhaust valves, with pad-selection charts supporting adjustment.

Its thermostat inspection checks for opening at 80–84°C (176–183°F), alongside the illustrated bench-test procedure.
