1992–1997 Honda CR125R Service Manual (P/N 61KZ405)

This Honda CR125R service manual (P/N 61KZ405) covers the 1992–1997 models, with factory procedures for engine, chassis, and electrical repair. System-specific troubleshooting and inspection limits support fault diagnosis and component assessment at the workbench.

Text Search, Section Bookmarks, and Wiring Detail

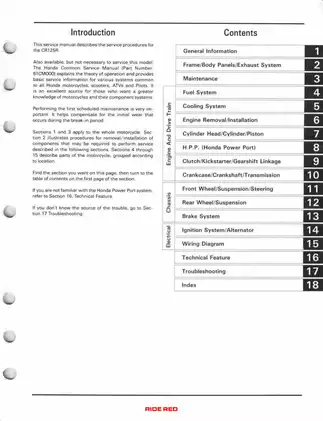

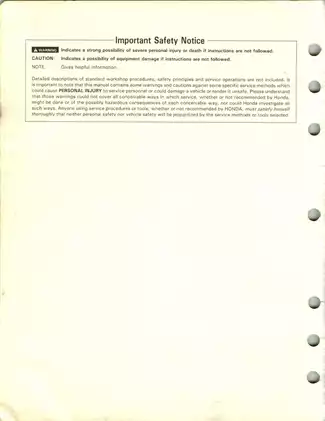

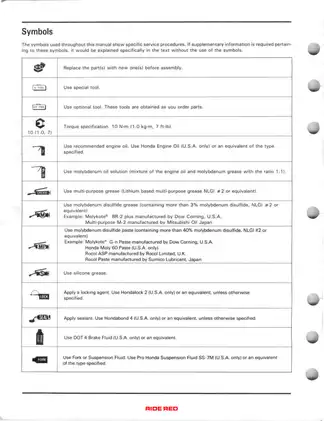

Search and diagram detail: An embedded OCR text layer supports searches across the service sections, although recognition errors can affect matches. Bookmarks open the contents and numbered sections. The cover and opening safety notice have no searchable text; small wiring color codes are readable with zoom.

One printable, English-language, 226-page PDF, including the cover, three introductory pages, and ten memo pages.

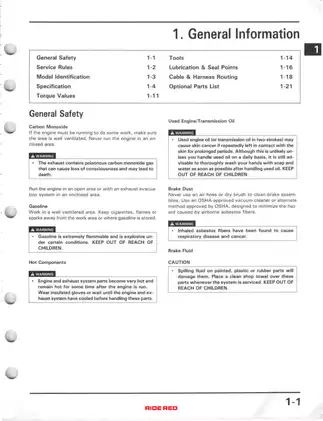

Engine, H.P.P., and Chassis Service

The following is a selection of covered work; further topics include silencer repacking and wheel-spoke assembly.

• Engine and drivetrain: Top-end inspection, crankshaft and transmission service, clutch removal and installation, and kickstarter and gearshift-linkage repair.

• H.P.P. system: Exhaust-valve decarbonizing, valve adjustment, drive-shaft bearing replacement, and governor/valve-linkage inspection and installation.

• Fuel system: Carburetor disassembly and reassembly, temperature/altitude tuning charts, reed-valve service, and air-filter maintenance.

• Cooling system: Coolant replacement, radiator removal and installation, and water-pump bearing and seal replacement.

• Wheels and suspension: Wheel-bearing replacement, steering-stem service, fork overhaul, rear-shock bladder service, and swingarm/shock-linkage bearing replacement.

• Hydraulic brakes: Fluid replacement and bleeding, pad replacement, and front/rear master-cylinder and caliper service.

• Ignition and alternator: No-spark troubleshooting, CDI circuit checks, ignition-coil testing, flywheel removal, and a system wiring diagram.

This manual suits mechanics who already know standard workshop practices and have the measuring equipment and special tools needed for internal engine and suspension service.

Engine Teardown and H.P.P. Diagnosis

Engine access: Step-by-step instructions cover crankcase separation and reassembly, crankshaft removal and installation, and transmission shaft assembly. The manual distinguishes work possible with the engine installed from crankshaft, transmission, shift-fork, and shift-drum service that requires engine removal.

Tool lists identify the crankcase puller 07937-4300000 and clutch center holder 07724-0050001, helping establish equipment requirements before teardown.

Top-end inspection: Cylinder/piston selection uses matched A/B size codes, with measurement tables for the piston, ring, pin, and connecting-rod small end. The cylinder-installation cautions explain how rotating the cylinder can snag and break the piston ring.

H.P.P. troubleshooting: Carbon buildup and incomplete exhaust-valve movement are linked to poor low- or high-speed performance. Governor/Valve Linkage procedures and Technical Feature illustrations connect exhaust-valve inspection with governor and linkage checks during power-loss diagnosis.

Carburetor Tuning and Cooling Repairs

Fuel-system adjustments: The Jet Needle/Air Screw Chart and temperature/altitude correction chart accompany jet selection and mixture adjustment. Reed-valve inspection and carburetor assembly drawings support intake-system service.

Water-pump service: Coverage extends to bearing removal, water-seal replacement, and reassembly. Radiator and coolant service include air-bleeding procedures.

Suspension Overhaul and Hydraulic Brakes

Fork procedures cover seals, bushings, damping components, and oil-level setup. Rear-shock coverage includes bladder replacement, damper-rod service, and bleeding, alongside swingarm and Pro-Link bearing work. Brake chapters describe front/rear master-cylinder and caliper disassembly and reassembly.

Overtightened fork pinch bolts can deform the fork tubes; the manual flags this during installation.

Use a stable work stand and a well-ventilated workspace, and follow the rear-shock precautions for stored nitrogen pressure and protective equipment.

Ignition Tests and Service References

Electrical diagnosis: The Ignition System/Alternator section combines a no-spark flowchart with CDI connector checks, coil-resistance tables, pulse-generator tests, and flywheel service. The Wiring Diagram identifies the stop switch, CDI unit, ignition coil, and alternator circuits.

Reassembly references: Cable & Harness Routing drawings and Crankcase Bearing/Oil Seal Locations support component installation. Lubrication & Seal Points tables identify specified materials.

The Competition Maintenance Schedule organizes checks by races and running hours. Standard fastener torques and component-specific specifications provide references for the related service work.

A Preview of Top-End Limits and Service Settings

Top-end tables list a cylinder-head warpage service limit of 0.05 mm and a standard cylinder-to-piston clearance of 0.035–0.050 mm for the matched cylinder/piston sizes.

Transmission-oil reference capacities are 0.57 liter after draining and 0.65 liter after disassembly, with a separate oil-level check.

Clutch plate warpage has a 0.15 mm service limit. Ignition maintenance specifies a 0.5–0.6 mm spark plug gap, with separate coil-resistance specifications for electrical testing.
