CASE 580E Super Loader Backhoe Service Manual, 1985 (P/N 8-41701)
1,357 Pages • Printable PDF • 103.01 MB • Download
Case Models Covered & Key Technical Specifications
Model: 580E (580 Super E)
Model Year: 1985
Sub-models / Variants: 2WD, 4WD
-
Engine: 4 Cylinder, 4 Stroke Cycle, Valve-In-Head; 4-390 (naturally aspirated), 4T-390 (turbocharged)
-
Piston Displacement: 3.92 Liters
-
Rated Engine Speed: 2305 to 2385 RPM
-
Engine Idle Speed: 850 to 900 RPM
-
Engine Oil Pressure: 42 to 54 PSI (290 to 372 kPa), with engine warm at rated engine speed
-
Fuel Injection System: CAV injection pump; Bosch 17 mm injectors, new opening pressure: 3190 to 3310 PSI / 220 to 228 Bar
-
Cooling System Capacity (with heater): 18.9 quarts (17.9 liters)
-
Hydraulic Reservoir Capacity: 12.5 gallons (47.3 liters)
-
Transmission / Drivetrain: Power shuttle with torque converter; transaxle; transfer gear box on 4WD machines
-
Transmission / Power Shuttle Oil Capacity: Transaxle: 20 quarts (18.9 liters); power shuttle and torque converter combined: approximately 8 quarts (7.6 liters)
-
Cylinder Head Bolt Torque: 93 lb ft (126 Nm), final stage of the three-stage tightening sequence
-
Engine Serial Break: Prior to Engine Serial No. 44117591 / Engine Serial No. 44117591 and After — compression-ratio specifications
-
Transmission Serial Break: Prior to Transmission Serial No. 16270319 / Transmission Serial No. 16270319 and After — transaxle, 4WD transfer gear box, and differential-brake procedures for turbocharged machines
Case Manual Features & Selected Content Preview

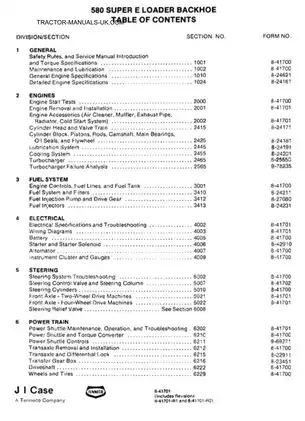

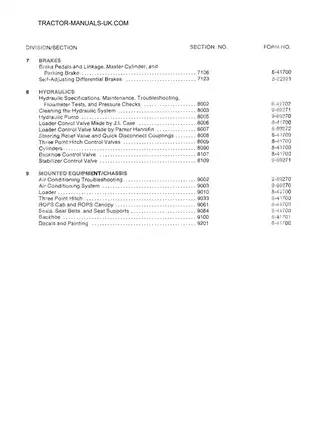

J.I. Case factory service manual for the CASE 580 Super E (580E) Loader Backhoe, P/N 8-41701, incorporating revisions 8-41701-R1 and 8-41701-R2. It combines machine-identification and maintenance references with factory repair, overhaul, adjustment, and diagnostic procedures.
PDF Bookmarks, Search, and Diagram Detail
Section navigation and wiring detail: Embedded bookmarks open the contents and numbered service sections. Text search is not available for the technical manual pages. Small wire and terminal numbers in the chassis wiring diagrams can remain difficult to distinguish when enlarged; accompanying circuit tables identify wire numbers, colors, and connections.
Supplied as one English-language, printable 1,357-page PDF, including one additional cover page within that total.
Engine Overhaul, Drivetrain Testing, and Hydraulic Repair
The following highlights are selected contents, rather than a complete table of contents. Further topics include ether-injection starting-system service and decal identification.
-
Engine repair: Engine removal, internal overhaul, lubrication and cooling-system repair, injection-pump timing, injector testing, and turbocharger service for 4-390 and 4T-390 engines.
-
Power shuttle and torque converter: Pressure testing, removal, internal disassembly, clutch and charging-pump inspection, reassembly, and operational checks.
-
Transaxle, axles, and brakes: Differential-lock repair, transfer-gearbox service, separate 2WD and 4WD front-axle procedures, and serial-specific differential-brake work.
-
Hydraulic systems: Flowmeter tests, relief-valve checks, pump diagnosis, system cleaning, cylinder service, and separate J.I. Case and Parker Hannifin loader-control-valve procedures.
-
Electrical diagnosis: Voltage-drop tests, charging and starting troubleshooting, chassis and ROPS wiring diagrams, and instrument-cluster circuits.
-
Steering repair: Steering-control-valve and steering-column overhaul, steering-cylinder repair, and steering relief-valve testing.
-
Attachments and chassis: Loader and backhoe removal, swing-tower and extendable-dipper service, three-point-hitch equipment, ROPS cab and canopy work, seats, and air conditioning.
This manual is suited to mechanics familiar with heavy-equipment repair and equipped for component lifting, precision measurement, and hydraulic pressure testing.
Engine, Fuel System, and Turbocharger
Cylinder head and block: Step-by-step procedures cover valve-guide and valve-seat replacement, valve-contact dye-pattern diagnosis, rocker-arm adjustment, block reconditioning, crankshaft and main-bearing work, and camshaft service.
The engine-removal chapter treats the engine, torque converter, and power shuttle as a combined assembly; a separate chapter covers power-shuttle removal without removing the engine. Front-engine-support centering and torque-converter and hydraulic stall tests are also included.
Fuel-system work: Injection timing references identify the CAS-1745 dial indicator, CAS-1690 engine turn-over tool, and CAS-1691 gear puller. Cylinder-head tooling includes the CAS-10240 valve spring compressor, and injector procedures cover opening-pressure, leakage, and spray checks.
The cylinder-head section warns that an injector rotating in its bore can damage the head.
Turbocharger diagnosis: Failure-analysis illustrations distinguish coked housings, scored shafts and bearings, foreign-object damage, and lubrication failures. They connect damage patterns with dirty oil, restricted oil return, excessive heat, or loose compressor hardware, helping identify causes that replacement alone would leave unresolved.
Power Shuttle, Transaxle, and Brake Variants
Pressure-gauge check sheets separate power-shuttle clutch-circuit and cooling-circuit results before teardown. Internal repair extends to the flex plate, forward clutch, charging pump, pinion cage, and output-shaft assemblies.
Power-shuttle installation cautions address torque-converter spline and hub-tang alignment; forcing a misaligned assembly risks damage to the mating drive components.
Turbocharged-machine coverage: The transaxle/differential-lock and self-adjusting differential-brake chapters are expressly identified for machines equipped with turbocharged engines. Their procedures distinguish hardware before transmission serial 16270319 from 16270319 and after, including changes affecting the 4WD transfer gearbox.
Differential bearing preload, ring-and-pinion backlash, brake hydraulic cylinders, actuators, housings, and separate 2WD/4WD hand-brake arrangements receive detailed treatment. Matching the component serial number to these sections helps keep early and later hardware and procedures from being mixed.
Hydraulic Circuits and Contamination Control
Flowmeter tests distinguish the loader and steering sections of the pump, loader circuits and the main relief valve, and backhoe circuits. Hand-pump tests address individual circuit relief valves.
The system-cleaning chapter distinguishes microscopic from visible contamination and documents the CAS-10162A portable filter and CAS-10508 fitting kit. Backhoe and stabilizer control valves and three-point-hitch controls have their own service material.
Circuit references include the Hydraulic Diagram for Loader, separate backhoe diagrams for foot-swing and hand-swing controls, and three-point-hitch hydraulic diagrams. These show the attachment configurations alongside the related troubleshooting and test procedures.
Electrical Drawings and Steering Components
The Wiring Diagram for Chassis and Wiring Diagram for ROPS Cab distinguish magnetic-switch and relay configurations. The Diagram of Instrument Cluster is supported by component identification and circuit information.
Steering chapters extend beyond fault charts to control-valve internals, steering-column components, cylinder repair, and relief-valve service. Front-axle instructions separate two-wheel-drive and four-wheel-drive assemblies.
Loader, Backhoe, Cab, and Shop References
Attachment procedures cover antirollback and return-to-dig linkage, swing-tower pivot bushings and bearing washers, and extendable-dipper wear strips and guide blocks. Air-conditioning material includes a system diagram, pressure-temperature troubleshooting charts, compressor service, and cab-component work.
Exploded views support the air cleaner, radiator, power shuttle, front axle, driveshaft, loader, seat suspension, three-point hitch, and backhoe assemblies. The identification reference locates machine and component serial plates.
Maintenance charts and fluid references include heater and non-heater capacities. Component tables supply torque specifications, clutch and gear clearances, bearing preload, backlash, wear limits, electrical test data, and tire and wheel information. Some routine service entries refer to the operator’s manual; this publication’s focus is workshop repair and testing.

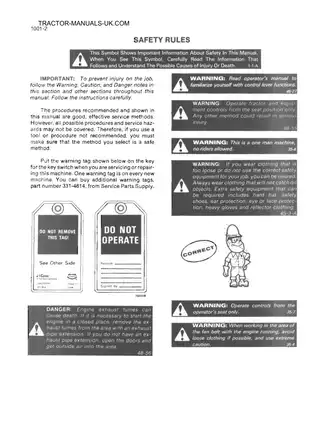

For hydraulic and attachment work, the safety material addresses attachment lowering or lift-cylinder support, engine shutdown, and release of trapped pressure before hydraulic lines are opened.
Examples of Valve-Clearance and Relief-Pressure Specifications
The engine specifications list cold valve-tappet clearances of 0.508 mm for exhaust valves and 0.254 mm for intake valves, alongside the valve-train service procedures.
Hydraulic specifications give a 2,400–2,500 psi loader main-relief pressure range at full throttle, with separate procedures for pressure checks and adjustment.
