Jeep Cherokee XJ 1996 Factory Service Manual

This factory service manual download for the 1996 Jeep Cherokee XJ SE, Sport, and Country covers two- and four-door bodies, 2WD/4WD, and left- and right-hand-drive configurations. Detailed engine repair covers the 2.5L and 4.0L MPI gasoline engines; separate sections address 2.5L turbo-diesel systems.

Some chapters refer to the 1997 XJ service manual. Match the documented engine, drivetrain, and electrical configuration to the vehicle before selecting service procedures.

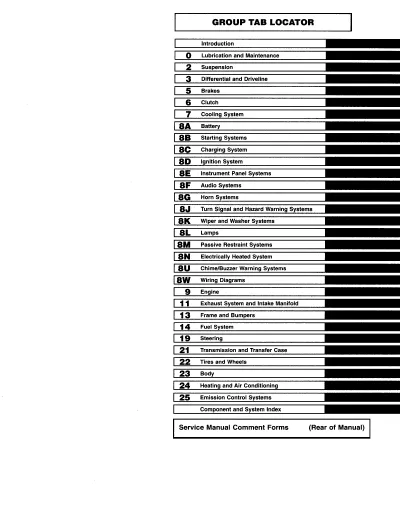

PDF Search, Bookmarks, and Chapter Files

Search and diagram detail: PDF text search is available across the chapter files. The engine PDF contains a partly usable bookmark tree with numerous missing or incorrect destinations; the other files have no embedded bookmarks. Small wiring labels are readable when enlarged.

The ZIP contains 37 printable English PDFs: a 10-page introduction and 36 chapter files totaling 1,714 pages. The 1,724-page total includes 38 blank separator pages; the wiring chapter accounts for 472 pages.

Engine Overhaul, Drivetrain Service, and Electrical Diagnosis

The following selected coverage highlights outline major workshop tasks rather than reproduce the complete contents. Other topics include tire vibration diagnosis and windshield-wiper service.

• Engine repair: Step-by-step procedures for engine removal, cylinder-head and valve service, piston and bearing fitting, timing-chain work, oil pumps, and rear main seals.

• Transmission repair: AX5 and AX15 internal disassembly and reassembly, plus 30RH and AW-4 automatic-transmission testing, valve-body service, and overhaul procedures.

• Transfer cases and axles: NV231 Command-Trac and NV242 Selec-Trac diagnosis, teardown, and linkage adjustment; 181 FBI front, 194 RBI rear, and 8-1/4 rear axle service.

• Steering, suspension, and brakes: Steering-pump testing, gear overhaul, wheel alignment, suspension service, disc/drum brake repair, and DRB-assisted ABS hydraulic bleeding.

• Fuel and engine controls: Gasoline pump, injector, regulator, and PCM checks; diesel injection-pump timing, injector testing, air bleeding, and glow-plug diagnosis.

• Cooling and climate control: Cooling-system pressure and thermostat tests, water-pump service, and R-134a A/C performance diagnosis, leak testing, recovery, evacuation, and charging.

• Electrical and body systems: Wiring diagrams, connector pin-outs, splice and harness locations, starting and charging tests, ignition service, and body-component removal and installation.

The rebuild procedures and reliance on DRB scan equipment, measuring tools, pullers, installers, and refrigerant equipment make this manual suited to professional technicians and experienced, well-equipped owners.

Gasoline Engine Diagnosis and Internal Repair

The Engine Performance Diagnosis Chart, compression tests, cylinder-leakage tests, and oil-pressure checks help distinguish cylinder-sealing problems from lubrication faults before teardown.

Internal service includes camshaft work, cylinder-block and cylinder-head inspection, valve service, and component-specific fitting specifications for both gasoline engines. Timing-cover procedures identify Alignment and Seal Installation Tool 6139.

Transmission, Transfer-Case, and Axle Work

The automatic-transmission sections distinguish road, stall, time-lag, solenoid, and hydraulic-pressure tests. Repair coverage extends to clutch and band assemblies, valve bodies, planetary gearsets, and torque converters; 30RH hydraulic-flow schematics support circuit diagnosis.

Propeller-shaft coverage includes runout, joint-angle measurement, and single- and double-Cardan joint repair. Axle setup addresses Trac-Lok testing, pinion depth, bearing preload, backlash, and Gear Tooth Contact Patterns.

Tool references include Pinion Depth Tool Set 6774, Trac-Lok Tool Set 6960, and Spreader W-129-B. The axle procedures warn that incorrect pinion-yoke tightening can damage the collapsible spacer or bearings.

Clutch service adds diagnostic charts, runout checks, release and pilot bearings, and hydraulic-linkage replacement.

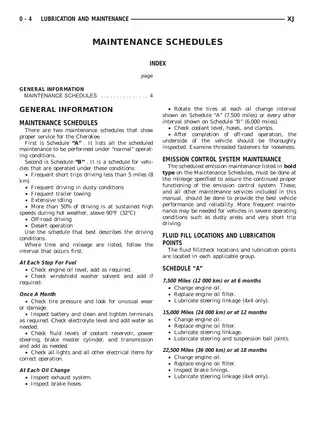

Maintenance Schedules and Cooling Diagnosis

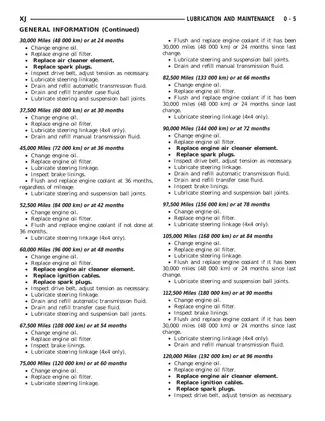

Schedule A covers normal transportation. Schedule B addresses short trips, dust, towing, extended idling, sustained hot-weather driving, and off-road or desert operation. Separate metric schedules cover diesel engine maintenance.

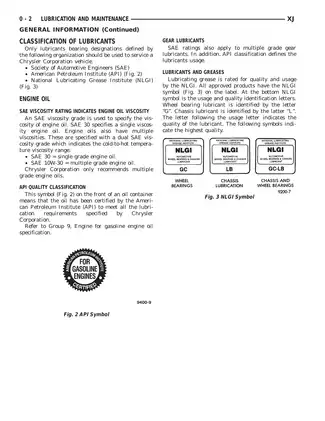

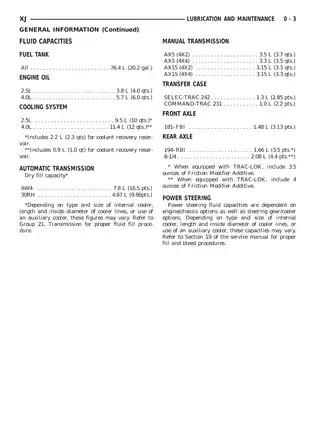

Fluid tables distinguish transmission and transfer-case types, axle lubricants, and Trac-Lok additive requirements. Nominal capacities are accompanied by level-check and filling procedures.

Cooling coverage includes radiator, thermostat, fan-drive, and water-pump service, with Cooling System Pressure Tester 7700-A identified. Belt-routing illustrations include Models with 2.5L Engine—With A/C; incorrect routing can reverse water-pump rotation and overheat the engine.

Gasoline Fuel Delivery and Diesel Scope

Gasoline procedures cover pump capacity and amperage, pressure leak-down, injectors, rails, regulators, and quick-connect fittings. PCM input/output descriptions and EVAP/OBD monitor information accompany the tests, with Fuel Pressure Test Kit 5069 specified.

Diesel coverage includes the water separator, fuel heater, high-pressure pump and lines, injector testing, pump timing, glow-plug and ECM checks, and LHD/RHD turbocharger-manifold service. Gasoline exhaust sections address leak diagnosis, pipes, catalytic converters, mufflers, hangers, and oxygen-sensor handling.

Diesel coverage does not include a full internal mechanical engine-overhaul chapter. Engine-control diagnosis refers to the separate 1997 ZJ/ZG 2.5L Diesel Powertrain Diagnostic Procedures manual, which is not included in this download.

Steering, ABS, and Climate-Control Service

Recirculating-ball steering-gear procedures include internal service and system bleeding. The three-channel all-wheel ABS section distinguishes individual front-wheel control from shared rear-wheel control and describes HCU service.

A/C repair extends beyond charging to compressor-clutch work, evaporator and heater-core replacement, and vacuum-control diagnosis.

Support the vehicle at the specified lifting points, use safety stands, relieve fuel pressure before opening fuel-system connections, and have refrigerant recovered by qualified personnel before A/C lines are opened.

Wiring References and Diagnostic Limits

The electrical chapters map power and grounds, fuel/ignition and transmission controls, ABS, airbags, lighting, trailer tow, instruments, HVAC, and accessories. 8W-30 Fuel/Ignition Systems, 8W-80 Connector Pin-Outs, and 8W-90 Connector Locations connect circuit information with connector and harness identification.

Separate sections cover Remote Keyless Entry, overhead-console calibration, glass, doors, liftgate, seats, trim, bumpers, and frame service.

Some PCM, ABS, airbag, speed-control, Remote Keyless Entry, cluster, charging, and HVAC fault diagnosis requires separate Powertrain, Chassis, or other Diagnostic Procedures manuals. The included component tests, DTC lists, monitor descriptions, and wiring do not replace those additional diagnostic publications.

Selected Piston-Fit and Crankshaft Inspection Data

Piston fit: The 2.5L engine tables specify piston-to-bore clearance of 0.033–0.053 mm, with a preferred fit of 0.033–0.038 mm.

Crankshaft inspection: The 4.0L specifications give crankshaft end play of 0.038–0.165 mm alongside journal dimensions and bearing-clearance data.
