Jeep 1988 Cherokee, Comanche, Wagoneer & Wrangler Service Manual Set
1,492 Pages • ZIP Download: 2 Printable PDFs • 22.51 MB
Jeep Models Covered & Key Technical Specifications
Models & Model Codes: Cherokee (XJ), Comanche (MJ), Wagoneer (XJ), Wrangler (YJ)
Sub-models / Variants: 2.5L 4-Cylinder TBI (001H in the Cherokee/Wagoneer maintenance guide), 4.0L 6-Cylinder MPFI (001M in the Cherokee/Wagoneer maintenance guide), 4.2L 6-Cylinder 2-Bbl, Automatic Transmission (Aisin Warner AW4 4-speed for Cherokee, Comanche, and Wagoneer), Manual Transmission (Cherokee, Comanche, and Wagoneer: Aisin AX4 4-speed or AX5 5-speed. Wrangler: Aisin AX5 5-speed or Peugeot BA 10/5 5-speed), A/C equipped, Power Steering equipped
Model Year: 1988
-
Engine displacement: 2.5L, 4.0L, 4.2L
-
Fuel system: TBI (2.5L), MPFI (4.0L), 2-Bbl Carburetor (4.2L)
-

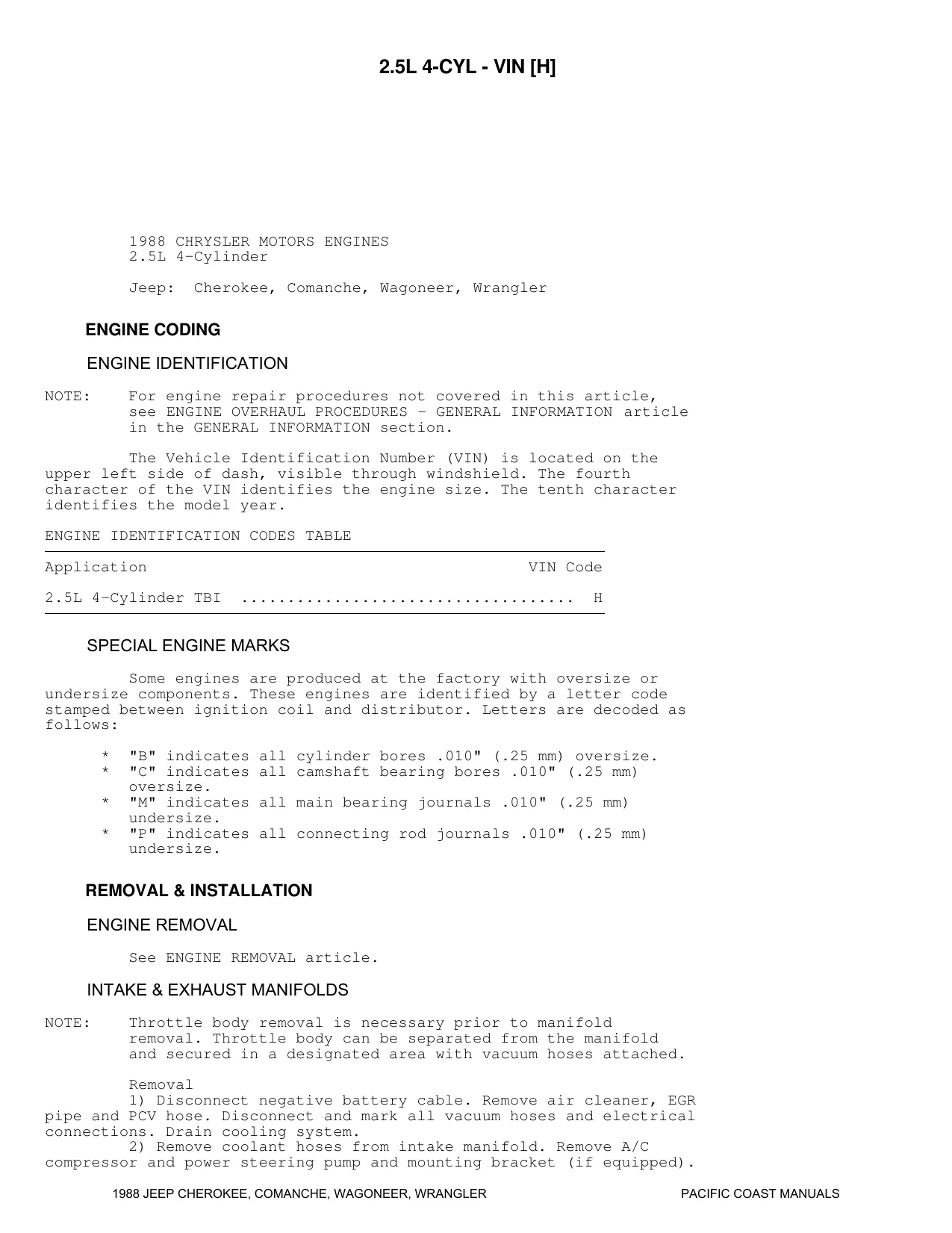

Engine configuration: 4-cylinder (2.5L, VIN H), 6-cylinder (4.0L, VIN M and 4.2L, VIN C). VIN character 4 identifies the engine.
-
Compression ratio: 9.2:1
-
Crankcase capacity: 4 qts (2.5L), 5 qts (4.2L), with oil filter change
-
Oil pressure: 2.5L: 13 psi at 600 RPM and 37–75 psi at 1600 RPM. 4.0L/4.2L: minimum 13 psi at 600 RPM and 37–75 psi above 1600 RPM.
Jeep Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| 1988 Jeep Service Manual Compilation — Cherokee, Comanche, Wagoneer, and Wrangler | 1,380 |
| ATSG Jeep AW-4 Service Information — AW4-equipped Cherokee, Comanche, and Wagoneer applications | 112 |
Use the Jeep volume for vehicle-side diagnosis and service. The ATSG booklet takes AW4 work from preliminary checks through internal inspection and bench assembly.
For the 1988 models in this set, AW4 coverage applies to equipped Cherokee, Comanche, and Wagoneer vehicles. Wrangler coverage is in the Jeep volume. Manual gearbox coverage is limited to removal, installation, and servicing. The full-vehicle wiring section covers Cherokee and Wagoneer, with separate system diagrams for Comanche and Wrangler elsewhere in the volume.
Finding Procedures and Reading Diagrams
Text search, bookmarks, and diagram detail: The Jeep volume has searchable text and chapter bookmarks. Wiring labels inside the diagrams are outside the text search. Zoom makes most labels in the checked diagrams readable, though some small diagnostic connector numbers remain faint. The ATSG booklet has a printed index and readable terminal diagrams at higher zoom, with no embedded text search or PDF bookmarks.

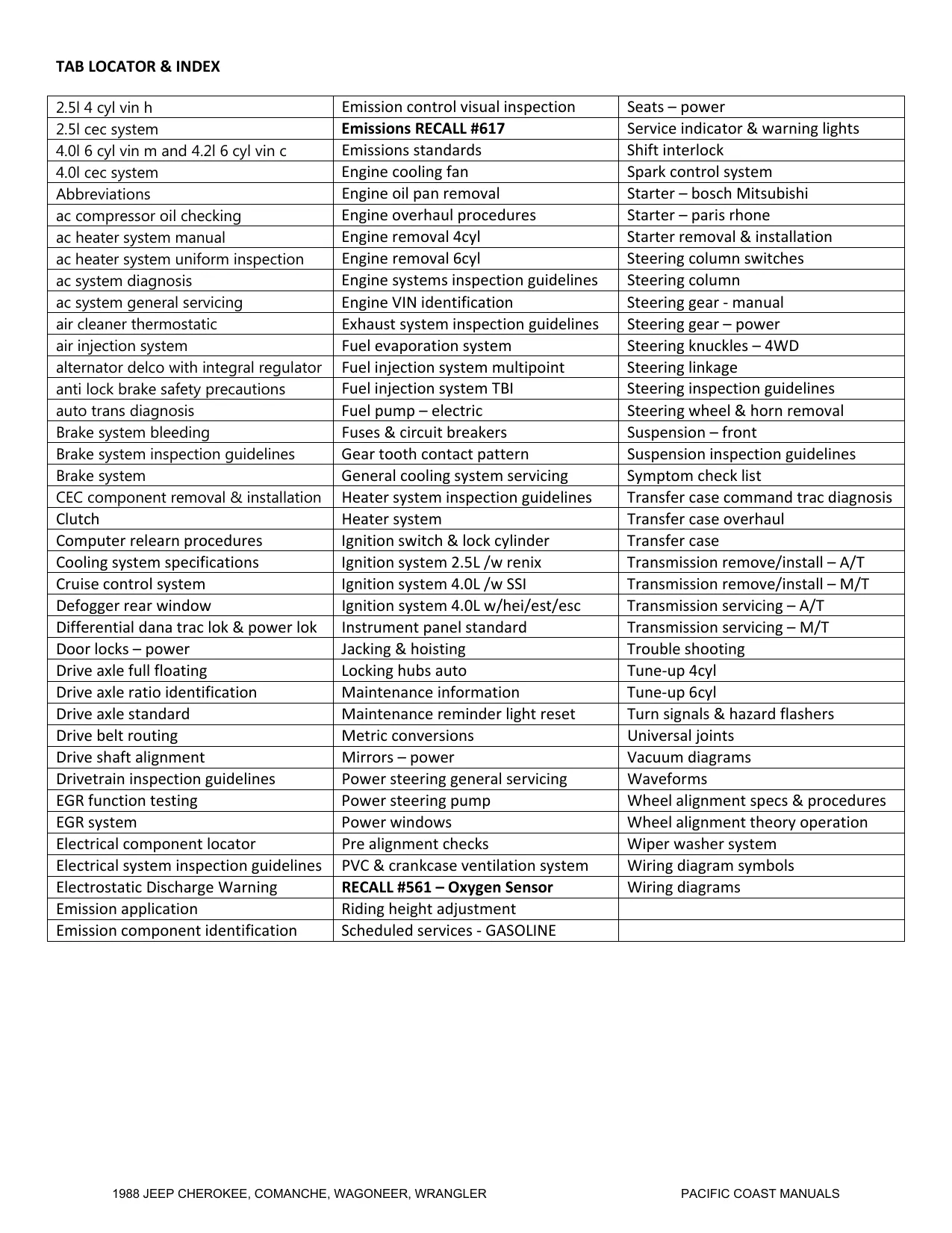

The ZIP contains 1,492 pages across two printable PDFs. The Jeep volume’s count includes its cover, index, seven pages with only a footer, and two emissions recall sections totaling 11 pages. The ATSG count includes its introduction and index.
Engine, Transmission, and Chassis Service
These are selected workshop topics from the two publications. Other sections cover cruise-control diagnosis and rear-window defogger testing.
-

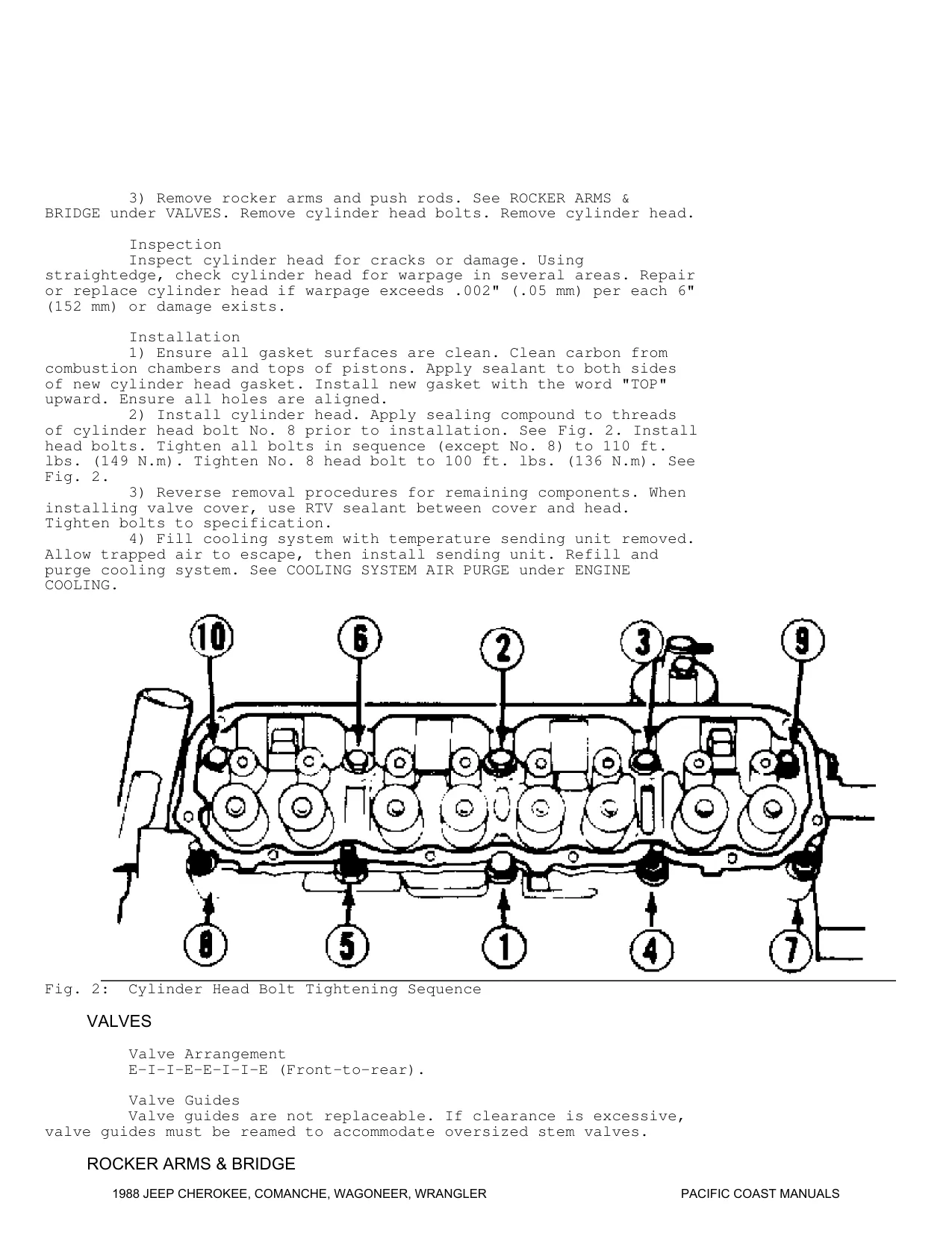

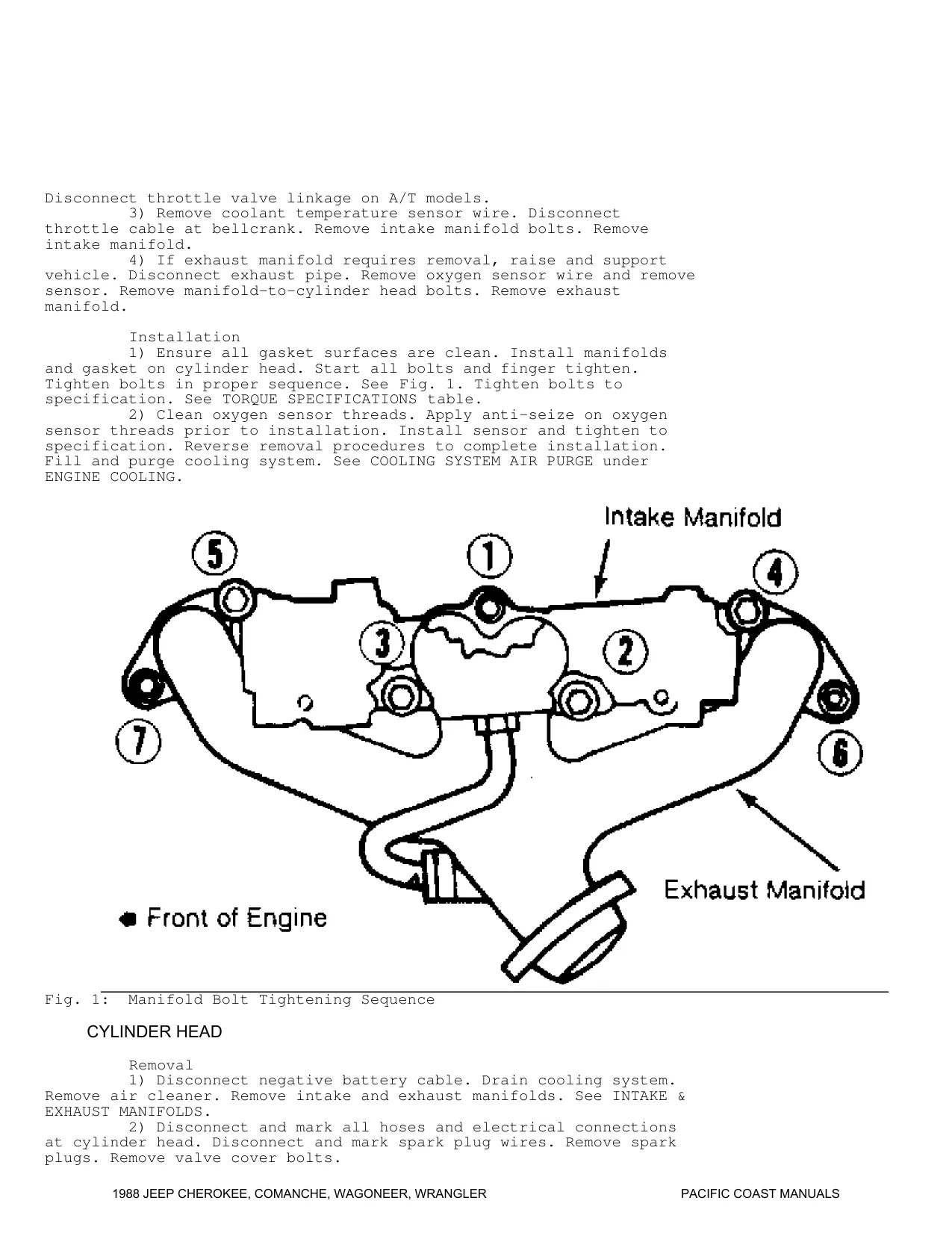

Engine overhaul: Four- and six-cylinder engine removal, cylinder-head and valvetrain repair, timing component service, and piston, crankshaft, and oil pump inspection.
-
Fuel and emissions controls: TBI and MPFI diagnosis with ECU pinouts, MAP and throttle-position sensor tests, injector and relay checks, and vacuum routing diagrams.
-
AW4 automatic transmission: Manual-shift, stall, time-lag, and road tests, plus transmission and torque converter removal, subassembly inspection, and valve body overhaul.
-
Transfer cases and axles: Command-Trac vacuum diagnosis, NP207/231 and NP/NV242 overhaul, Dana differential service, driveshaft phasing and runout checks, and universal joint repair.
-
Brakes and hydraulic clutch: Disc and drum service, caliper and wheel cylinder repair, master cylinder overhaul, parking brake service, and hydraulic bleeding procedures.
-
Steering and front suspension: Power steering pressure checks, pump and steering gear repair, 4WD knuckle and ball joint service, ride-height checks, and wheel alignment.
The set is suited to technicians and experienced Jeep owners familiar with workshop gauges and electrical testing. The AW4 bench procedures assume transmission overhaul experience.
Engine Controls and Mechanical Checks
The dedicated TBI computerized emissions control chapter is labeled for Cherokee and Comanche. A separate Renix TBI chapter covers all four models and includes a Wrangler-specific wiring diagram. The MPFI chapter covers Cherokee, Comanche, and Wagoneer, with a Cherokee engine control schematic. The 4.2L section covers the two-barrel carbureted engine.
Mechanical chapters provide bearing clearances, wear limits, and component torque tables. Tool references include J-21884 for hydraulic lifter service and J-21719-01 for vibration damper removal.
AW4 Diagnostics and Driveline Repair
The Jeep volume includes TCU connector views and fault charts for solenoids, the speed sensor, the gear-select switch, and the throttle-position circuit. Some AW4 diagrams are labeled for later model years. The ATSG preliminary check chart helps separate an electrical control fault from a hydraulic or mechanical fault before teardown.
The booklet also includes a neutral switch terminal test chart, a pressure gauge hookup illustration, and overhaul procedures for the oil pump, overdrive unit, clutch packs, planetary sets, and accumulators. For axle work, the Jeep volume covers standard and full-floating assemblies, Dana Trac-Lok and Power-Lok differentials, and gear-tooth contact patterns.
Brake, Steering, and Electrical References
The brake section includes the Comanche height-sensing proportioning valve and cautions against honing a Bearingized master cylinder bore. The AW4 assembly section cautions against forcing the oil pump into place, which can damage the stator-shaft sealing rings.
The Jeep volume also covers steering columns, track bars, wheel bearings, A/C and heater diagnosis, charging and starting systems, and scheduled maintenance. Electrical component locators cover Cherokee, Comanche, and Wagoneer. The full-vehicle wiring section includes an A/C and heater schematic for Cherokee and Wagoneer.
Brake hydraulics, refrigerant service, vehicle lifting, and AW4 stall or pressure testing require the specified shop equipment and safeguards.
Fuel and AW4 Pressure Test Examples
For the 4.0L MPFI engine, the fuel rail check calls for about 31 psi with the engine running and the regulator vacuum hose connected, and about 39 psi with the hose disconnected.
The AW4 booklet lists 53–61 psi in Drive and 73–87 psi in Reverse at curb idle with the transmission fluid at normal operating temperature. Its diagnostic chart distinguishes low pressure in Reverse alone from low pressure in both ranges.
