1999–2006 Yamaha XV1600A Road Star Service Manual (P/N LIT-11616-12-56)

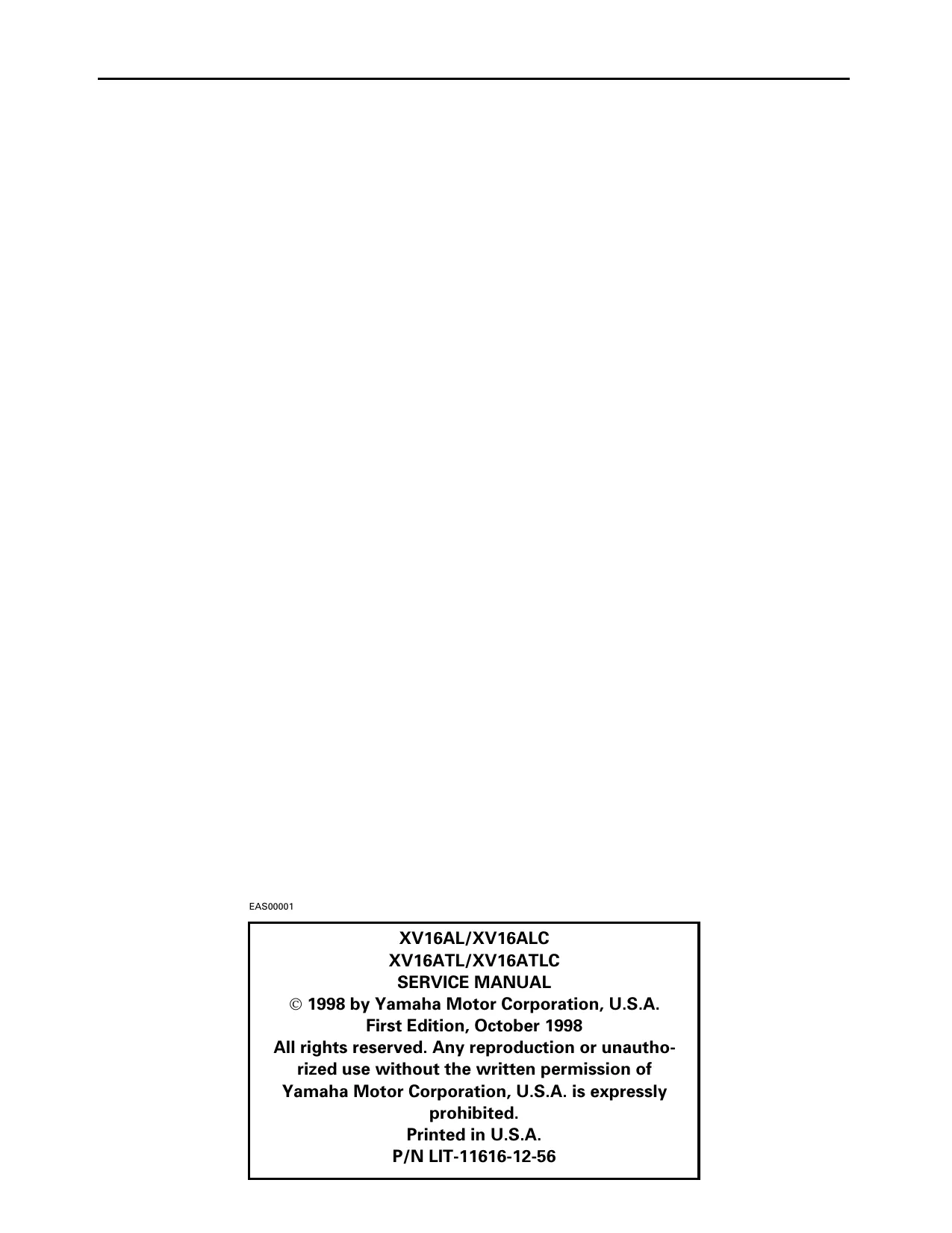

• Document set: A 522-page PDF set — a 449-page Yamaha service manual, P/N LIT-11616-12-56, cover code 4WM-28197-E0, First Edition, October 1998; plus a 73-page parts catalog, document code 2A5JA-700E1, First Edition, July 2001.
• Exact model and variant coverage: The service manual is for XV16AL/XV16ALC and XV16ATL/XV16ATLC models, with California-specific emission and carburetor references. XV16AT sections also cover the windshield, backrest, saddlebags, passenger footrests, and related stays. The separate parts catalog is specific to the Australian XV1600AP, model code 5JA9, production code 010.
• Engine and drivetrain repair: Covers engine removal and installation, hydraulic valve-lifter and push-rod service, camshaft and automatic-decompression work, top-end inspection, clutch and starter-clutch repair, transfer-gear and oil-pump service, crankshaft and connecting-rod checks, and transmission teardown and assembly.
• Chassis and brake service: Includes wheel and brake-disc repair, static wheel balancing, master-cylinder and caliper overhaul, hydraulic brake bleeding, front-fork and steering-head service, rear suspension and swingarm work, and drive-belt and drive-pulley procedures.
• Carburetion and electrical diagnosis: Details Mikuni BSR40 carburetor teardown and assembly, fuel-level adjustment, throttle-position-sensor testing, fuel-pump and fuel-cock checks, air-induction service, and circuit-based fault tracing for ignition, electric starting, charging, lighting, signaling, fuel-pump, carburetor-heating, and self-diagnosis systems.
• Factory reference material: Provides component-specific torque tables, fluid and lubricant data, inspection limits, clearance specifications, electrical test values, engine and transfer oil-flow diagrams, cable-routing drawings, circuit diagrams, connector and component-location views, and the complete U.S./Canada wiring diagram.

Factory Repair Coverage

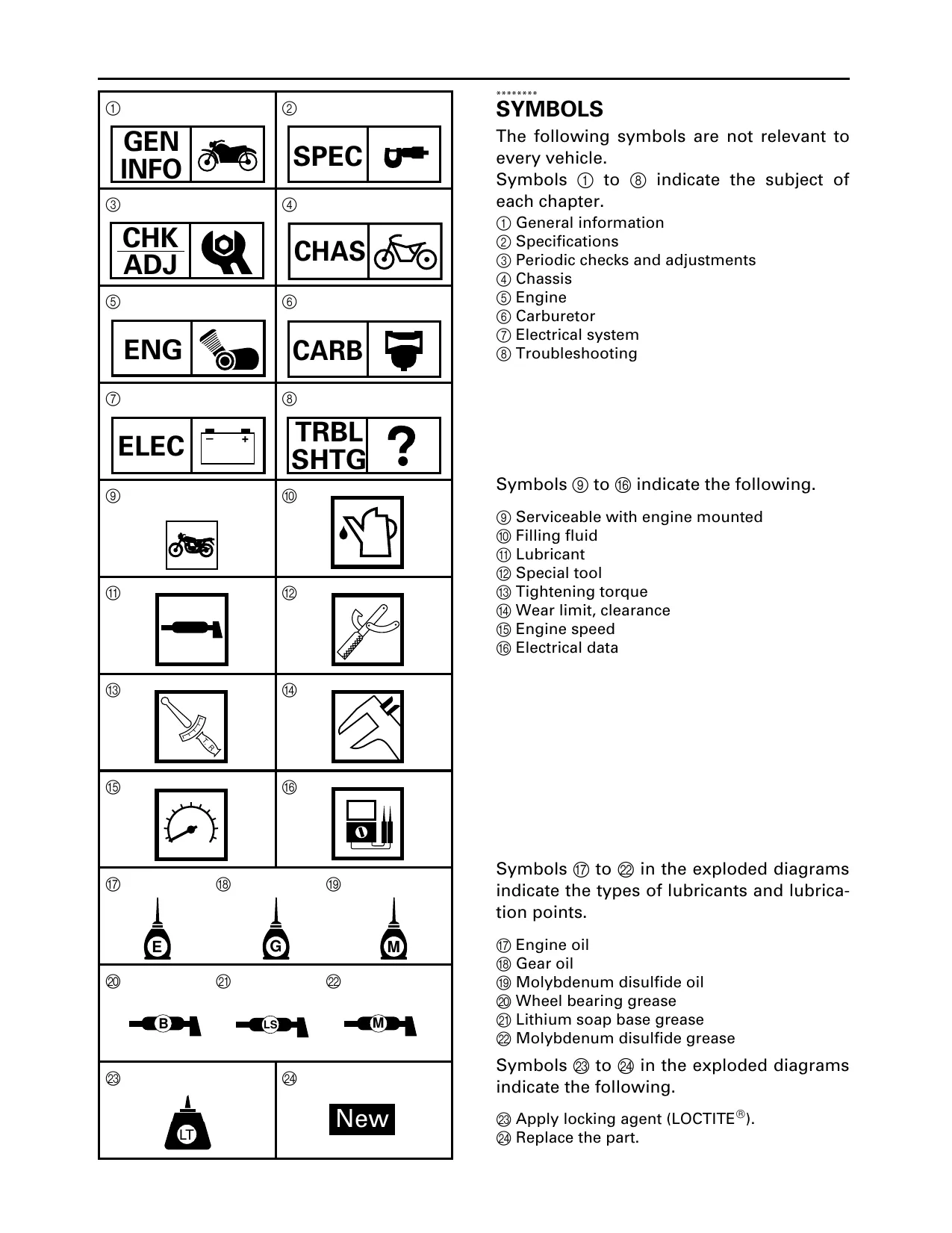

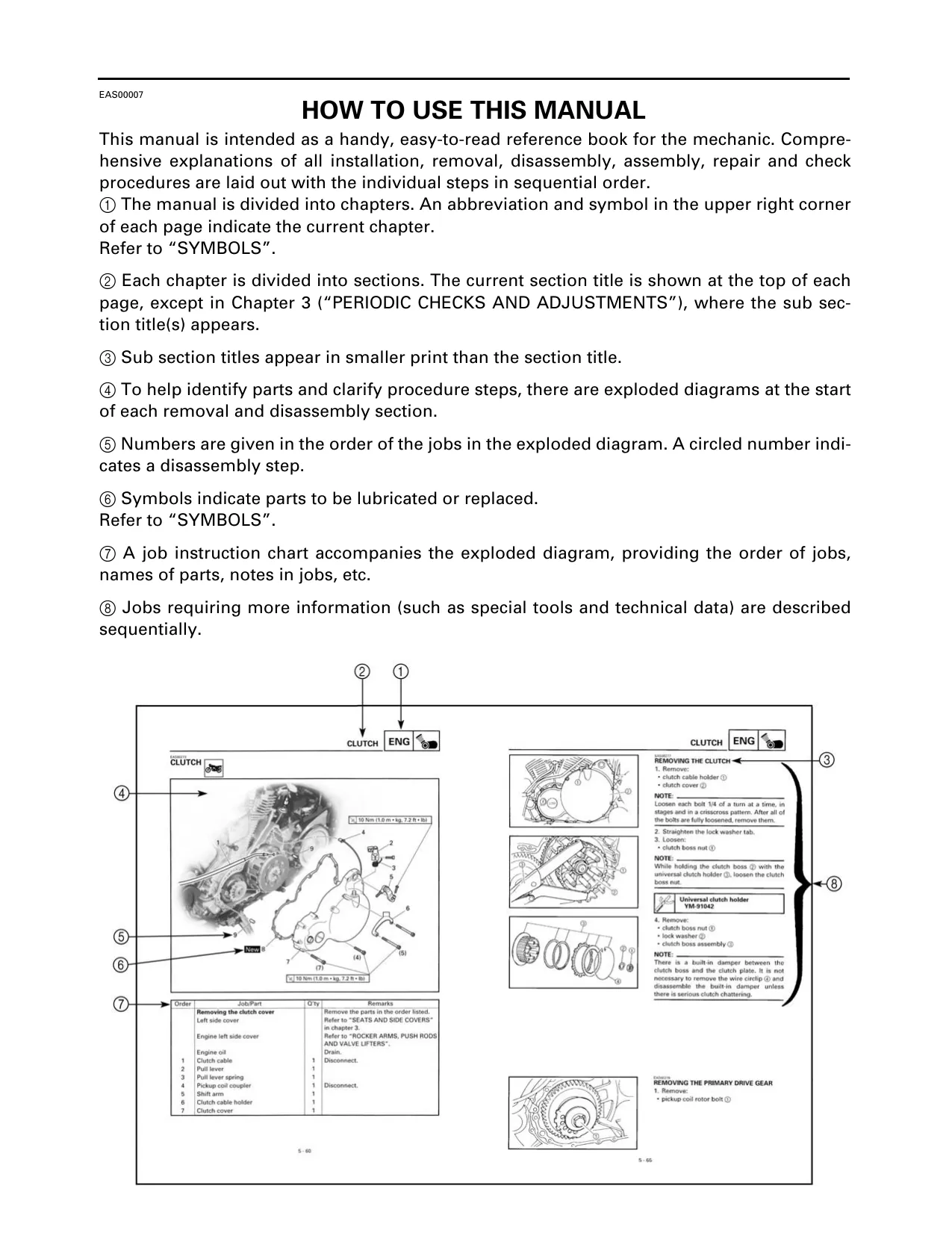

Yamaha lays out the service manual around exploded job diagrams, ordered work charts, inspection criteria, and assembly notes. Periodic-service procedures include compression testing, ignition-timing checks with a timing light, engine-oil-pressure measurement, valve-clearance inspection and correction, drive-belt adjustment, steering-head adjustment, brake-system bleeding, battery charging, fuse checks, and combination-meter functions.

The engine chapters go well past tune-up work. Top-end repair includes rocker arms, push rods, hydraulic valve lifters and lifter bleeding, camshafts, the decompression mechanism, cylinder heads, valves, cylinders, pistons, and rings. Bottom-end and drivetrain sections cover the clutch, generator and starter clutch, transfer gear case, crankcase, lubrication pumps, crankshaft, connecting rods, shift forks, shift drum, and transmission gears. Related pages supply bearing-clearance methods, tightening sequences, lubrication points, wear criteria, and assembly checks.

Chassis, Fuel, and Electrical Systems

Wheel sections cover bearings, brake discs, the rear-wheel drive hub and pulley, and static balance. The brake chapters go through pad replacement, master-cylinder and caliper disassembly, inspection, reassembly, installation, and final bleeding. Separate repair sections handle fork cartridges and seals, handlebar and steering-stem components, suspension links, swingarm bearings, the rear shock absorber, drive belt, and drive pulley.

Carburetion coverage includes internal inspection and reassembly, float-chamber fuel-level measurement, throttle position sensor adjustment, fuel-pump and fuel-cock checks, carburetor-joint installation, and the air-injection and air-cutoff-valve system. The specification pages distinguish the standard and California carburetor identification marks, helping prevent parts or adjustment data from being applied to the wrong variant.

Electrical diagnosis is organized by circuit. The ignition, starting, charging, lighting, signaling, fuel-pump, and carburetor-heating sections each include a circuit diagram and troubleshooting sequence. Connector and component-location views support continuity and test-value checks. The built-in self-diagnosis section covers the throttle position sensor, speed sensor, decompression solenoid, and fuel-level meter circuits, with indicator-light fault patterns and follow-up test charts.

Diagrams, Tools, and Parts Identification

Named visual references include the engine-oil lubrication chart, engine-oil flow diagrams, transfer-gear oil-flow diagrams, cable-routing drawings, fuel-pump circuit-operation diagram, and the complete U.S./Canada wiring diagram. The special-tool section identifies equipment for major repair work, including the YM-01080-A flywheel puller, YM-03170 belt-tension gauge, YM-91042 universal clutch holder, YU-33223 compression gauge with YU-33223-3 adapter, and 90890-03153 oil-pressure gauge.

The XV1600AP (5JA9) Australian parts catalog adds exploded plates and ordering tables for the engine, clutch, transmission, middle drive, chassis, suspension, brakes, generator, lighting, meter, switches, and electrical assemblies, followed by a numerical part-number index. Its illustrations are intended for locating and ordering parts rather than for assembly; the service manual remains the repair reference.

The manual also flags assembly-specific repair traps. Connecting rods and big-end bearings must remain in their original positions to preserve the required clearance and prevent engine damage. In the brake system, incorrect or mixed fluid can deteriorate rubber seals, cause leakage, and reduce braking performance. Brake work, secure motorcycle support, and the nitrogen-charged rear shock absorber require the workshop safety procedures stated in the manual.
