1981 Yamaha XS1100H / XS1100SH Eleven Owner's Manual (P/N 11626-02-40)

• Yamaha XS1100H / XS1100SH Owner's Manual, with cover codes LIT-11626-02-40 and 4R0-28199-10, plus model-specific H and SH operating, maintenance, and specification content.
• 53 PDF pages total; the final PDF page is blank. The scan reaches manual page 96 but omits numbered pages 87-88 and 93-95; both separate wiring sheets are included.
• Owner-level procedures cover engine oil and filter replacement, middle and final gear oil service, spark plug and air filter inspection, clutch adjustments, cable lubrication, battery care, headlight service, and fuses.
• Chassis work includes front fork oil replacement and air-pressure setup, rear shock preload and damping adjustment, brake checks, steering and wheel-bearing inspection, and model-specific front and rear wheel removal.
• Periodic emission-control and general maintenance schedules are backed by a component torque table, capacity and lubricant data, tire and load charts, and a basic fuel-compression-ignition troubleshooting chart.
• Separate XS1100H and XS1100SH wiring diagrams identify the charging, ignition, starting cut-off, lighting, warning, relay, connector, and handlebar-switch circuits.

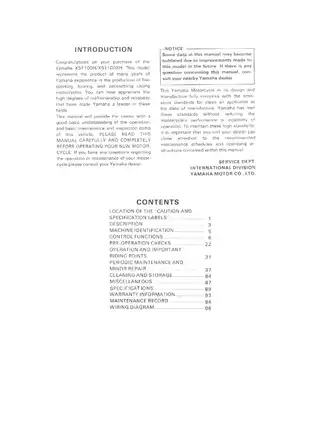

This Yamaha owner's manual was written to give the owner a basic understanding of operation, preventive maintenance, inspection, and minor repair. It is suited to an owner already comfortable with routine motorcycle service and torque-wrench use; Yamaha directs unfamiliar owners, specialized emission work, and several brake tasks to a dealer or other qualified mechanic.

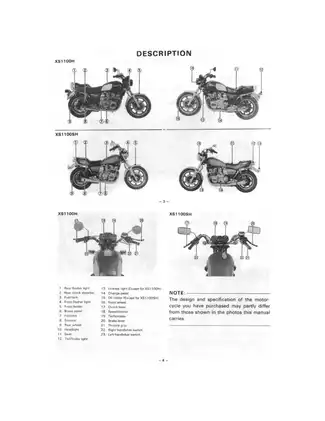

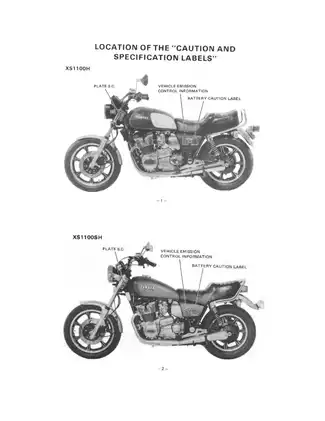

Model and Equipment Coverage

Coverage is model-specific, not generic. The specification tables identify engine model 4R1 for the XS1100H and 4R0 for the XS1100SH, then distinguish tank capacity, rear tire, dimensions, weights, front fork oil quantity, and lighting and indicator equipment. The control chapters also separate the H fuel gauge from the SH low-fuel warning, along with running-light arrangements, petcock functions, side covers, brake-pad inspection, and front-axle hardware.

Operational Guidance and Maintenance Schedules

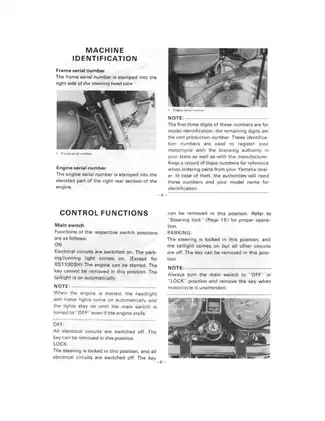

Operating material covers the frame and engine identification locations, dual vacuum fuel petcocks and PRIME/RESERVE use, cold-start and starting-circuit cut-off functions, five-speed shifting, break-in, pre-ride checks, tire loading, steering and helmet locks, the auxiliary DC terminal, and the automatic emergency stop switch. Tubeless tires and aluminum wheels, cleaning, and long-term storage have their own sections.

Maintenance and Minor Repair

The repair information stays at owner level but goes well beyond a controls booklet. The engine oil and filter section shows correct O-ring placement and post-service pressure and leak checks. A dual-ended tool-kit gauge is used for middle and final gear oil levels, while clutch coverage includes both cable free play and the mechanism adjuster.

Suspension pages describe fork oil replacement, model-specific fill data, air-pressure checking, and rear-shock spring and damping combinations. The optional fork air-check gauge is identified as P/N 2X4-2811A-00. Brake coverage includes lever and pedal adjustment, pad wear indicators, fluid-level inspection, and the brake-light switch. Separate illustrated wheel-removal procedures account for the H and SH front-axle arrangements.

Repair Scope and Electrical Reference

This is not the separate Yamaha Service Manual. It contains only a limited torque table and no internal engine, transmission, carburetor, or final-drive overhaul. Valve-clearance checks and carburetor synchronization appear in the maintenance schedule, but adjustment procedures and specifications are not supplied; carburetor work is assigned to qualified personnel with specialized data and equipment. Brake-fluid replacement is likewise identified as trained-service work, and tire changes refer to a separate Tubeless Tire and Wheel Manual.

The electrical reference includes a color-code chart and the two model-specific wiring diagrams. Labeled examples include the A.C. generator/regulator/rectifier charging path, ignition unit and pickup coil, starter relay and starting-circuit cut-off switch, reserve-lighting and headlight-failure circuits, and connector blocks for the main and handlebar switches. The troubleshooting chart narrows basic no-start complaints through fuel, compression, ignition, and battery checks; it is not a workshop component-test manual.

The manual also flags two easy-to-miss repair hazards: fork oil on disc-brake parts can damage rubber components and reduce braking, while operating a brake control with a wheel removed can force the pads closed. Brake, wheel, and suspension work requires secure support and qualified service whenever the task exceeds the owner-level procedures shown here.
