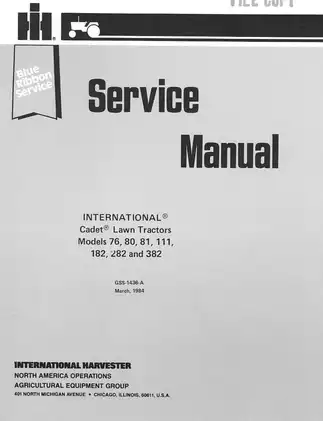

1984 International Cadet 76, 80, 81, 111, 182, 282 & 382 Lawn Tractor Service & Repair Manual (P/N GSS-1436-A)

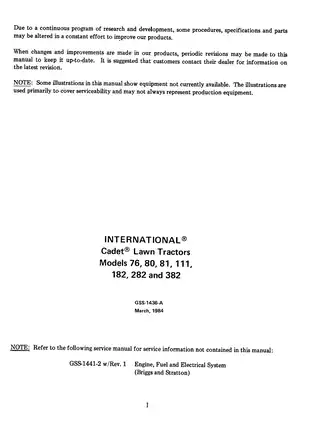

This 1984 International Harvester service and repair manual, publication GSS-1436-A, covers Cadet 76, 80, 81, 111, 182, 282 and 382 lawn tractors, with documented Spt. 76 and 382H variants. It is supplied with GSS-1441-2 w/Rev. 1, the Briggs & Stratton one-cylinder Engine, Fuel and Electrical Systems manual.

• Engine repair: Engine removal and installation, horizontal- and vertical-crankshaft disassembly, internal inspection, valve service, synchro-balanced engine assembly, and overhaul specifications.

• Transaxles and differentials: Removal, teardown, inspection and reassembly for 3-speed and 5-speed units, plus hydrostatic drive service and control-linkage adjustment.

• Steering and brakes: Steering assembly repair, shaft bushing replacement, front axle and steering knuckle inspection, and early- and late-type disc brake service.

• Mower deck: Deck removal, spindle and bearing service, blade inspection and sharpening, drive-belt installation, and front-to-rear and side-to-side leveling.

• Fuel and governors: Carburetor identification and overhaul, mechanical governor adjustment, and air vane governor spring and linkage service.

• Electrical diagnosis: Wiring diagrams, a safety-interlock troubleshooting chart, ignition and charging tests, starter motor inspection, and recoil starter repair.

Suited to mechanics and experienced owners comfortable with engine measurements and electrical testing; the starter-armature procedures call for equipment such as a growler.

Engine Overhaul and Carburetor Applications

The companion volume covers cylinder resizing, piston and ring inspection, valve and seat reconditioning, crankshaft checks, and synchro-balanced engine assembly. Wear limits, component torque tables, the Bolt Type Identification Chart with IH types and SAE grades, and metric conversion tables support those procedures.

Carburetor selection: The application chart assigns Flo-Jet I carburetors to the listed Cadet engines. Pulsa-Jet I, II and III, Flo-Jet II, and Vacu-Jet repair sections address other engine applications in the companion volume. Carburetor illustrations and cutaway views distinguish their construction.

Transaxle, Brake and Mower Repairs

The 5-speed transaxle procedures apply to Model 182 from S/N 72880 and Model 382 Gear Drive from S/N 70001. Gear assembly layouts show the shifter, chain, countershaft and differential components; separate sections address earlier disc brake assemblies and the 382H brake arrangement.

Hydrostatic scope: The input shaft, bearing and oil seal can be serviced with the transmission in the tractor. Other hydrostatic transmission service is limited to outer seals and the reservoir; the drive housing and differential have separate removal, inspection and reassembly procedures.

Spindle revisions: Mower instructions identify changes to pulley shims and wave springs by tractor serial number. The manual warns that insufficient lubrication of the spindle braking surfaces can cause aggressive braking and component damage.

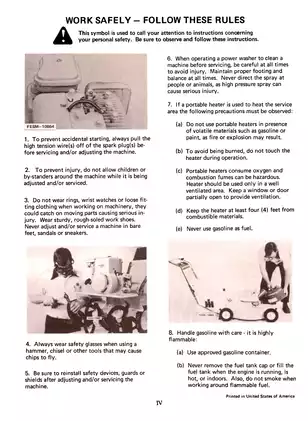

Follow the manual’s precautions for accidental engine starting, rotating blades and supporting the raised tractor during service.

Starting, Charging and Safety Circuits

Model 76 wiring diagrams distinguish recoil-only, combined recoil/electric, and electric-only configurations. The interlock testing chart for recoil and combined-start versions helps separate switch-loop faults from control-module faults during diagnosis.

Later wiring diagrams show seat switches from S/N 73929 and no-mower-in-reverse switches from S/N 76667. Single-circuit and dual-circuit alternator tests address stator, diode and rectifier faults.

Ignition and starter testing: Armature Air Gap illustrations accompany ignition adjustments, and spark testing references Briggs & Stratton tool 19051. The 12-volt DC starter section includes performance checks, growler testing and brush inspection. Its handling cautions explain how clamping or striking certain starter housings can crack their ceramic magnets.

The companion volume also covers recoil starter clutches, vertical pull starters, and the nickel-cadmium starting system for 92,000-series engines. These sections serve the broader engine applications identified in that volume.

A Preview of Valve and Ignition Settings

These valve and ignition settings are a small selection of the specifications in the companion engine manual.

For its listed Briggs & Stratton engines, cold valve clearance is 0.005–0.007 in. at the intake and 0.009–0.011 in. at the exhaust.

For 170,000-, 190,000-, 191,000- and 253,000-series engines equipped with a two-leg armature, the specified armature air gap is 0.010–0.014 in.

PDF Navigation and Included Publications

Text search and diagram detail: The PDF is partially searchable through an OCR text layer, with recognition errors and some wiring and ignition pages lacking searchable text. Bookmarks link both manuals, the main tractor sections and the engine contents. Small labels in electrical illustrations require zooming.

A single printable 172-page PDF contains the Cadet manual (73 pages), the Briggs & Stratton manual (98 pages), and one supplementary front page. Both manuals’ front and back covers are already included in these totals.
