1984–2003 Yamaha XT600EB Owner's Manual (P/N 3-7168-1869-0)

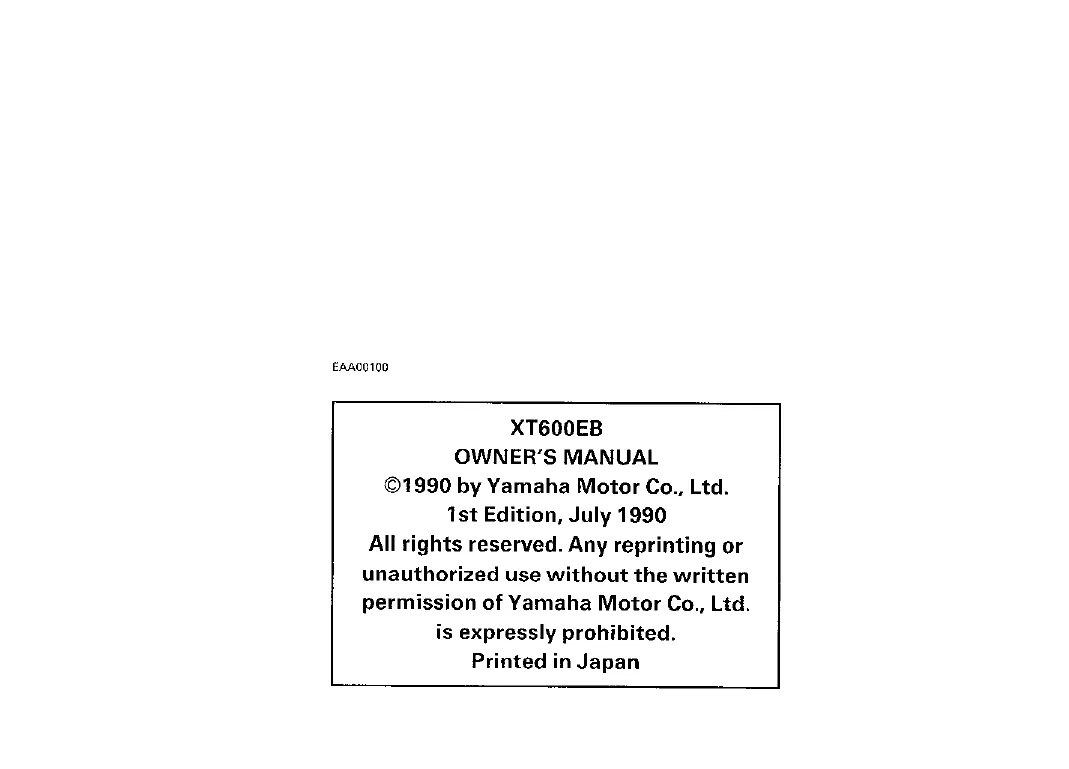

• 201 PDF pages across two documents: a 103-page English Yamaha XT600EB Owner's Manual, P/N 3WR-28199-21, 1st Edition, July 1990, plus a 98-page German-language Bucheli XT600E repair manual, ISBN 3-7168-1869-0, covering the XT600E from model year 1990.
• Engine and drivetrain repair coverage includes engine removal and installation, cylinder-head and valve service, camshaft and timing-chain setup, piston and cylinder inspection, crankcase separation, crankshaft measurement, and five-speed transmission repair.
• Fuel and lubrication procedures break down the mechanically operated primary carburetor and vacuum-operated secondary carburetor, along with dry-sump oil service, filter and strainer work, oil-pump inspection, and lubrication-system diagnosis.
• Starting, charging, and ignition sections provide starter-motor and relay tests, starter-clutch service, generator and pickup-coil checks, regulator/rectifier diagnosis, ignition testing, and the related electrical specifications.
• Brake, steering, and suspension work covers hydraulic disc-brake bleeding and overhaul, front-fork disassembly, steering-head bearing service, Monocross linkage and swingarm repair, wheel bearings, and suspension adjustment.
• Twelve exploded assembly drawings cover systems such as the carburetors, starter motor, magneto, clutch, transmission, and front fork. The set also supplies a complete XT600E wiring schematic, cable and hose routing plans, and dry-sump oil-flow diagrams.

What the Two Manuals Document

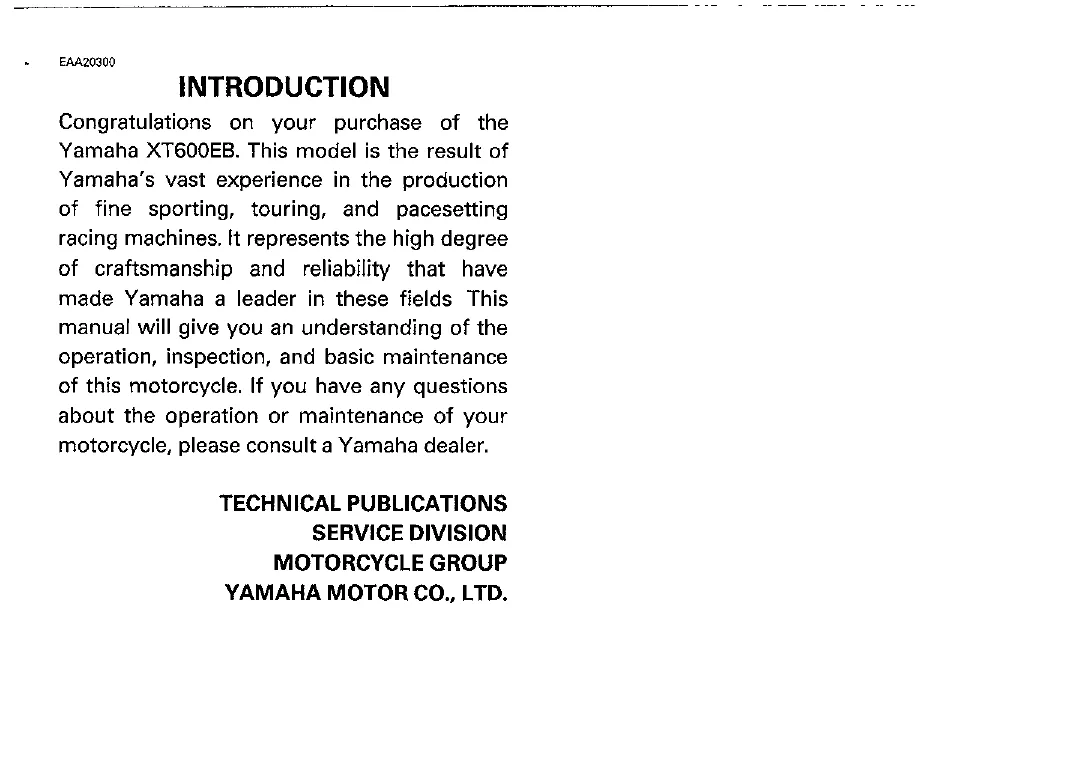

These publications serve two different purposes. The Yamaha owner's manual explains operation, inspection, scheduled maintenance, and minor service for the XT600EB, while the Bucheli book provides substantially deeper German-language repair coverage for the XT600E from 1990. The set is suited to experienced home mechanics who can work from metric specifications and use precision measuring equipment; hydraulic brake work, pressed assemblies, and specialized machining still require the appropriate training and shop equipment.

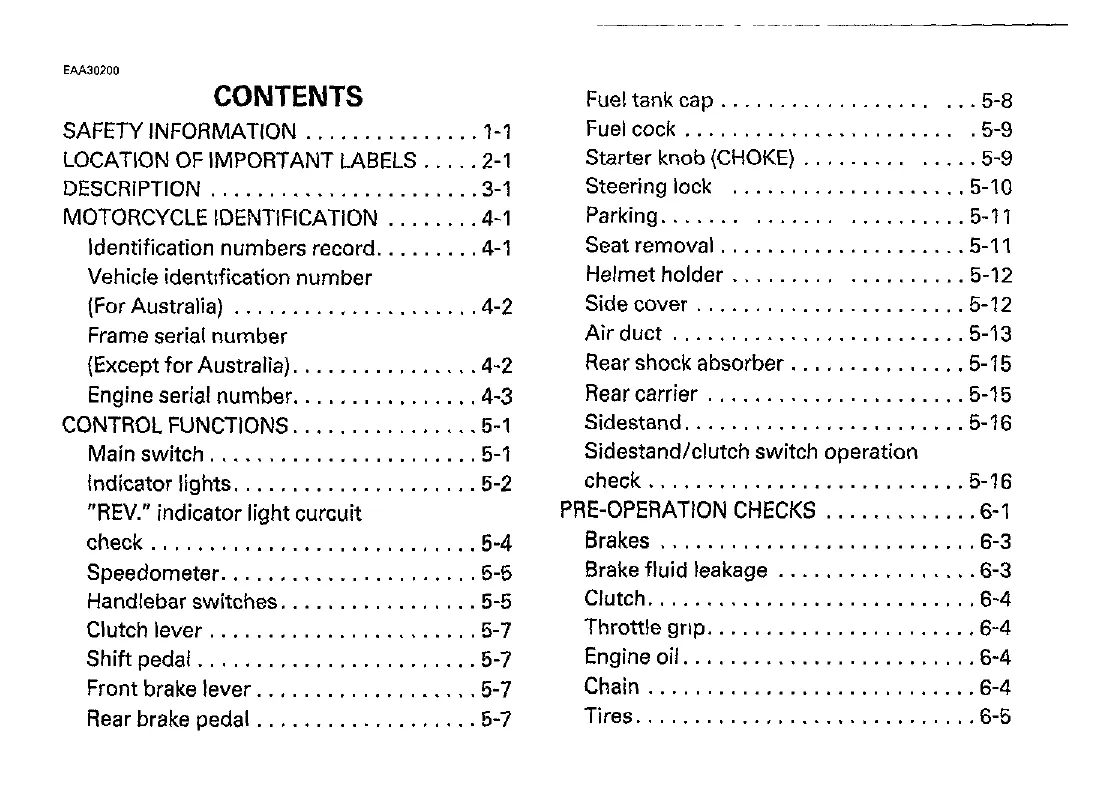

The Yamaha manual identifies the motorcycle as XT600EB and lists the engine model as 3WR2. Control coverage extends from the main switch, fuel cock, choke, steering lock, and adjustable rear shock to the REV indicator and sidestand/clutch starting-interlock circuits. Pre-operation checks address the brakes, tires, wheels, engine oil, drive chain, fasteners, lights, switches, and fuel system.

Operating material covers cold and warm starting, shifting, engine warm-up, break-in, and parking. The maintenance section contains one factory maintenance and lubrication chart with break-in, six-month, and annual checkpoints rather than three separate schedules. Owner-level service chapters address the dry-sump oil and filter system, air filter, carburetor idle speed, throttle and clutch cables, spark plug, brake pads and fluid, drive chain, suspension pivots, steering, wheel bearings, battery, fuse, headlight, and wheel removal. A fuel-compression-ignition troubleshooting chart, cleaning and storage instructions, specification tables, an Australian noise-control section, and a wiring diagram complete the Yamaha publication.

The owner's manual is limited to operation, preventive maintenance, and minor repair. Internal engine and transmission work belongs to the accompanying Bucheli repair manual.

Workshop Repair Depth

The Bucheli manual begins with system-based fault isolation for lubrication pressure, fuel delivery, compression, clutch and shifting, steering, brakes, suspension, battery charging, ignition, starter operation, and engine temperature. Its repair chapters then move through removal, disassembly, inspection, measurement, and reassembly.

The carburetor chapter distinguishes the directly actuated primary slide from the vacuum-controlled secondary carburetor and covers jet circuits, diaphragms, float and fuel-level inspection, and linkage alignment. Its specification tables separate carburetor identification marks 3TB00, 3UW00 for Germany, and 3UX00 for Switzerland; the maintenance text also identifies a 3WS Austrian setting and a German 20 kW configuration.

General model data identifies model code 3TB1, VIN prefix JYA3TB, and starting frame and engine number 3TB-000101. Because the Yamaha owner's manual carries the different 3WR2 engine designation, the motorcycle's model code should be matched before repair procedures or specifications are applied. This set should not be treated as blanket coverage for every 1984-2003 XT600 variant.

Engine repair material includes post-overhaul startup checks and inspection limits for the camshaft, rocker arms, valves and guides, cylinder, piston and rings, oil pump, clutch, gearbox, and crankshaft. The tool section calls for torque wrenches, pullers, a dial indicator, micrometers, a valve-spring compressor, electrical meters, and other workshop equipment. Valve-guide and seat work, pressed gearbox assemblies, and certain bearing operations are directed to an equipped specialist or Yamaha shop.

The repair text also identifies model-specific damage risks. Driving out the piston pin with a punch can bend the connecting rod, while cleaning calibrated carburetor jets with wire or a needle can damage their metering passages. Hydraulic brake service demands prior experience, and the nitrogen-charged rear shock is not intended for owner disassembly.

Specification and Diagram Highlights

Reference tables provide component-specific torque values, capacities and approved fluids, compression data, carburetor settings, electrical resistance and charging-output tests, bearing and shaft limits, brake wear specifications, suspension data, and engine inspection clearances. Brake-fluid guidance is circuit-specific: DOT #4 is specified for the rear system, while the front-brake material also permits DOT #3 where DOT #4 is unavailable.
