John Deere Models Covered & Key Technical Specifications

Models: 655 (engine 3TN66UJ), 755 (engine 3TNA72UJ), 756 (engine 3TNA72UJ), 855 (engine 3TN75RJ), 856 (engine 3TN75RJ), 955 (engine 3TN84RJ)

Model Years: 1986–1996 (1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996)

Fuel pump and layout change: Late 855: S/N 615001—999,999 and 1990 model S/N 10,001—; mechanical fuel-transfer pump and switched fuel-tank/battery locations. All 955 tractors use the mechanical pump and revised layout.

Alternator installation — engine S/N: 655: 025201 and below; 755/756: 030103 and below; 855/856 and 955: 009848 and below.

855 alternator clearance change: Engine S/N CH3033A010453 and above have the factory-modified mounting tab.

PTO inertia-brake housing replacement: Spacer M801959 is required when replacing housing AM875949 with AM876998 on 655 housings below S/N 610730 and 755/756 or 855/856 housings below S/N 827729.

Late-model or retrofit hitch specifications: 755/756: SN 180250—; 855/856: SN 180450—; 955: SN 180525—.


  • Engine: 3-cylinder diesel, displacement from 40.2 cu. in. (658 cm³) to 87.3 cu. in. (1430 cm³)

  • Horsepower: 16 HP to 33 HP (11.9 kW to 24.6 kW)

  • PTO Horsepower: 10.6 HP to 27 HP (8.1 kW to 20.1 kW)

  • Transmission Type: Hydrostatic 2-range with infinite speeds

  • Hydraulic System: Open center with 2050 psi or 2500 psi working pressure

  • Electrical System: 12-volt, with 475 to 491 Cold Cranking Amps

  • Final Drive: Planetary

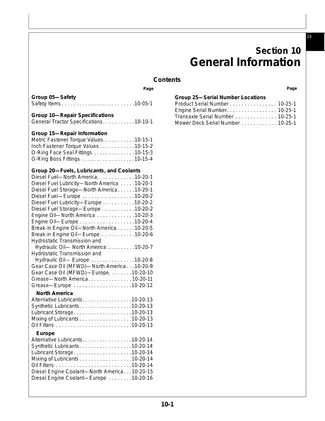

John Deere Manual Features & Selected Content Preview

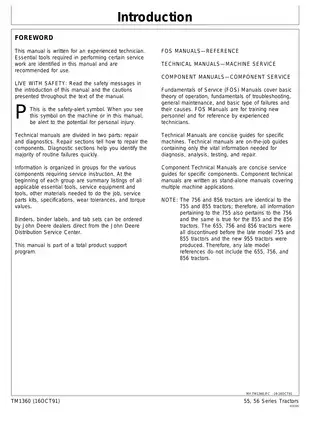

John Deere Technical Manual P/N TM1360, June 1996, covers the 655, 755, 756, 855, 856, and 955 Compact Utility Tractors. The manual directs users to the 755 information for the 756 and the 855 information for the 856. Late-model references exclude the discontinued 655, 756, and 856.

PDF Search, Bookmarks, and Diagram Detail

Text access and drawing detail: The main text supports PDF search, but several large diagram sheets do not. Embedded bookmarks cover the major sections, although some entries have no working destination or land on the wrong page. Small wiring and hydraulic schematic labels require zooming.

The ZIP contains one printable PDF with 570 pages total, including the original cover, introductory material, blank/notes pages, and 22 additional enlarged diagram panels.


Diesel Systems, Hydrostatic Drive, and Tractor Diagnostics

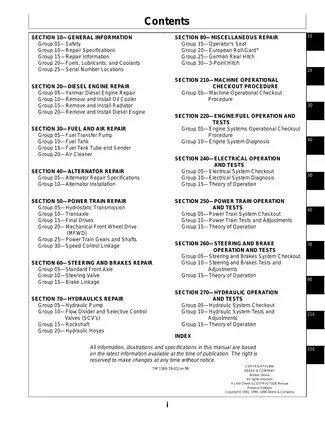

These selected coverage highlights outline the main workshop areas. Additional topics include regional operator’s-seat assemblies and three-point center-link and adjustable lift-link repair.

  • Engine and cooling: Engine removal and installation, radiator and oil-cooler service, compression testing, cooling-system checks, and radiator-cap testing.

  • Fuel and air systems: Fuel-tank and sender removal, electric and mechanical transfer-pump tests, injection-system bleeding, model-specific pump timing, and air-cleaner service.

  • Hydrostatic transmission: Removal, internal disassembly and reassembly, center-section inspection, charge-pump service, hydraulic bleeding, and neutral-return adjustment.

  • Transaxle and PTO: Differential and range-shift repair, PTO clutch and inertia-brake work, rear and mid-PTO shafts, reduction gearing, and final drives.

  • Axles, steering, and brakes: Standard and MFWD axle repair, spindle-gear-case overhaul, differential setup, end-play and toe-in adjustment, steering-valve overhaul, and brake-disc service.

  • Hydraulics and hitch: Hydraulic-pump, flow-divider, regenerative/float SCV, and rockshaft repair, with pressure, flow, leakage, and control-valve tests.

  • Electrical troubleshooting: Starting, charging, preheat, fuel-shutoff, lighting, gauge, and PTO safety tests, supported by wiring schematics and component-location views.

Written for experienced technicians, this manual assumes familiarity with the tractor and its systems, with the specified lifting and diagnostic equipment available for the work involved.

Engine, Fuel, and Cooling Scope

Component-manual requirement: Complete internal Series 220 diesel-engine repair requires the separate CTM3, dated 10AUG93 or later, which is not included. Internal alternator repair also refers to component-manual procedures; this file provides alternator specifications, installation information, and machine-side electrical tests.

Fuel-system diagnosis separates electric transfer pumps from the mechanical arrangement used on late 855 and all 955 tractors. The listed equipment includes the JDG-356 fuel-pump pressure kit. Compression testing uses JDG472 adapters for the 655/755/756 and JDG560 adapters for the 855/856/955.

The air-cleaner instructions explain a specific service hazard: tapping an element against a hard surface can dent the mesh and allow vibration to wear a hole through the filter paper.

Hydrostatic and Transaxle Repair Details

The step-by-step procedures extend into the hydrostatic rotating assemblies and center section. Transaxle coverage includes the oil-supply system, differential-lock mechanism, range-shift components, MFWD gear case, and PTO assemblies.

Production differences: Early hydrostatic output gears use a cap-screw arrangement; later units use a castle nut and cotter pin associated with driveshaft kit AM118962. The PTO inertia-brake notes identify replacement housing AM876998, earlier housing AM875949, and spacer M801959 for the affected earlier housings. These distinctions help match replacement parts and assembly procedures to the installed hardware.

Diagnostic charts address one-direction-only travel, no movement, weak drive, overheating, and failure to reach full speed. They lead into charge-pressure and flow tests, transmission relief testing, and control-linkage adjustments.

Steering, Brakes, and Hydraulic Fault Isolation

Steering tests distinguish cylinder leakage from steering-valve leakage. Brake procedures cover linkage installation, disc repair, and master/park and turn-brake free-play adjustment.

Hydraulic diagnosis includes relief-pressure tests with and without SCVs, transaxle lubrication pressure, PTO clutch engagement pressure, and rockshaft leakage. The pump-flow test warns that fully closing the flowrater control valve can damage the hydraulic pump.

Miscellaneous repair also includes European Roll-Gard and German rear-hitch information. Mower-deck spindle and gearbox overhaul chapters are not included in this PDF.

Before repair work, lower mounted equipment, relieve hydraulic pressure, support the tractor securely on level ground, and use the specified lifting and test equipment.

Operational Checks and Electrical Build Differences

The machine operational checkout supports annual inspections and trade-in assessment, then directs the technician to system-specific diagnosis. This connects an overall condition check with the detailed tests needed to investigate a fault.

Seven harness-specific electrical schematic sets distinguish early, late, North American, and European configurations. Harness-change notes identify differences in grounding, fuel-tank/battery placement, and regional connections before circuit testing. Dedicated routines cover the seat switch, PTO magnet, and time-delay control module.

Cross Sections and Factory Test Equipment

Reference drawings include the Hydrostatic Transmission Cross Section, Transaxle Cross Section, and PTO Clutch Cross Section. The MFWD Cross-Sectional View, Steering Valve Cross Section, and Hydraulic System Schematic support axle, steering, and hydraulic work.

Tool references include the JDG282 temperature gauge, JTO5469 flowmeter, and JTO5738/JTO1765 hydraulic fitting kits. Group-opening tables collect essential Service-Gard tools, torque values, wear tolerances, service materials, and test specifications.

Preview of Driveshaft Torque and Cooling Capacity

The driveshaft installation instructions specify 49 N·m for the engine-side cap screws and 60 N·m for the driveshaft-coupler bolts at the hydrostatic input.

For the 855/856, the cooling-system capacity is listed as 4.8 U.S. qt. (4.5 L). The capacity tables distinguish coolant from crankcase, transmission/hydraulic, and MFWD gear-case quantities.
