1997–2002 Yamaha Snowmobile Mountain Max 600, V-Max SX600, Venture VT600, VX700SX Service Manual

This service and repair manual covers the listed 1997–2002 Yamaha Mountain Max, V-Max and Venture three-cylinder snowmobiles. Maintenance, troubleshooting and assembly-specific repair chapters include model-dependent specifications and illustrated inspection procedures.

Searchable Text, Chapter Bookmarks and Wiring Detail

Search and navigation: Searchable PDF text is available across the main chapters and wiring labels. Embedded bookmarks open the main sections and many subsections, although the “Primary Sheave Assembly” bookmark has no working destination. Small wiring labels and color codes are best read with zoom.

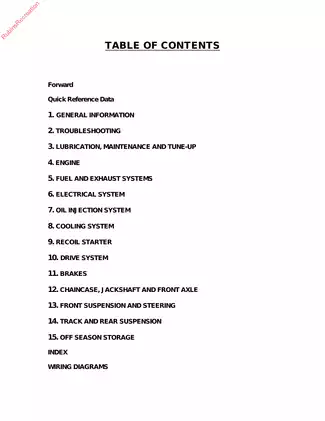

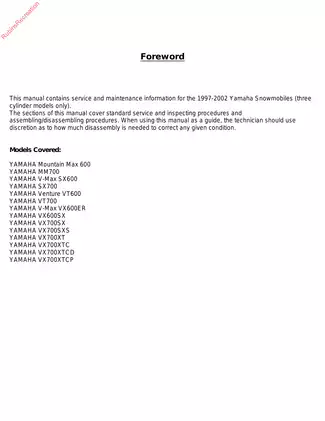

Supplied as one printable, English-language, 280-page PDF. The total includes three preliminary pages—cover, contents and foreword—plus the Quick Reference Data, index and wiring diagrams.

Triple-Engine, Clutch and Chassis Service

These selected topics show the manual’s repair coverage rather than reproduce its full contents. Further sections cover recoil starter repair and preparation for off-season storage.

• Engine repair: Engine removal and installation, top-end service, piston and ring inspection, reed-valve checks, crankcase separation and crankshaft inspection.

• Fuel and exhaust: Carburetor disassembly, throttle synchronization, fuel-level adjustment, pulse-pump inspection, carburetor heating-system service and exhaust repair.

• Lubrication and cooling: Yamaha Autolube pump service and bleeding, coolant replacement, water-pump inspection, hose replacement and heat-exchanger service.

• Drive system: Primary and secondary sheave service, drive-belt height and alignment checks, and high-altitude clutch and chaincase gearing tables.

• Chaincase and shafts: Separate procedures for reverse and non-reverse chaincases, jackshaft bearing inspection, front axle removal and drive-sprocket replacement.

• Brakes and suspension: Caliper and master-cylinder overhaul, hydraulic bleeding, steering adjustment, slide rail suspension overhaul and track inspection.

• Electrical diagnosis: CDI, charging and lighting tests, starter-motor service, switch continuity checks, throttle override testing and wiring diagrams.

This manual suits owners comfortable with workshop tools and technicians servicing these sleds; major engine disassembly requires considerable mechanical ability.

Engine Inspection and Repair Planning

The engine chapter distinguishes top-end work that can be performed in the frame from crankcase and crankshaft work requiring engine removal. Inspection limits help determine whether pistons, cylinders, bearings and related components need service or replacement.

Crankshaft pressing and alignment are referred to a qualified dealer or engine specialist. The removal and preliminary disassembly information can help an owner plan which work to complete before handing the assembly over for specialist repair.

The piston inspection section warns that wire-brushing the skirts or ring lands removes aluminum, increases piston clearance and reduces support for the rings.

Carburetor Setup, Fuel Delivery and Autolube

Separate Mikuni TM31 and TM33 specifications support carburetor inspection and adjustment. Throttle synchronization, float height and actual fuel-level checks are described separately from temperature- and altitude-dependent jetting.

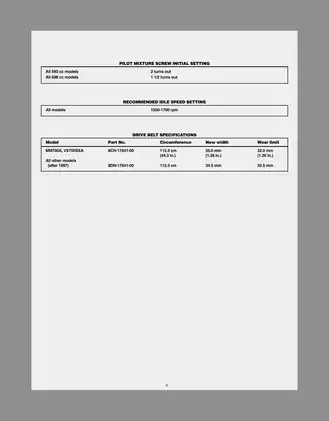

The maintenance chapter’s 18 tables cover service schedules, lubricants, tuning data and related settings. High-altitude clutch and sprocket tables accompany the carburetor jetting information.

Fuel-pump coverage includes inspection and replacement as a unit. Exhaust procedures address removal, cleaning and dent repair. The Carburetor Heater System diagram shows how the carburetors connect to the engine cooling circuit, while the Autolube chapter covers the oil pump, hoses and bleeding.

Sheaves, Chaincase and Suspension

Primary sheave service identifies the Yamaha YS-01880 holder and YS-01881-1 and YS-01882-1 pullers. Illustrated procedures cover weights, rollers and bushings; separation of the spider from the fixed sheave is referred to a dealer with the required tools.

The Primary Sheave and Chaincase (With Reverse) exploded views support component identification during disassembly. Front axle sprocket replacement requires a press. The jackshaft and front axle bearing lock-collar notes identify Torx setscrews and warn that an Allen wrench can damage their heads.

Chassis coverage includes ski pressure, shock spring preload, steering alignment, slide rail wear strips and track clips. Suspension overhaul is covered, but the shock damper housings are not to be disassembled.

Electrical Fault Isolation and Brake Service

Symptom-based troubleshooting separates ignition, fuel-delivery and power-train problems before component replacement. Electrical sections include coil resistance tests, starter inspection, switch continuity diagrams and Yamaha Throttle Override System checks.

The Without Electric Starter and Equipped With Electric Starter wiring diagrams distinguish the electrical configurations, including the starter relay and optional passenger grip warmers.

Brake procedures cover caliper pistons and seals, master-cylinder inspection, the mechanical parking brake and hydraulic bleeding. Review the manual’s chassis and electrical safety warnings before diagnostic work, especially around the rotating drive belt and track.

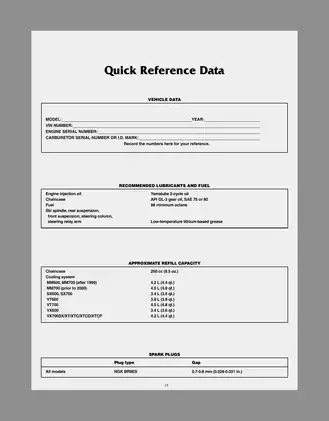

A Preview of Charging and Track Specifications

For electric-start models, the charging-system test specifies 13.3–14.3 volts at 3000 rpm. The AC lighting-system specification is a minimum of 11 volts at 3000 rpm.

Track-tension inspection specifies 25–30 mm (0.98–1.18 in.) of deflection with the track clear of the ground and a 10 kg (22 lb.) pull applied near the middle of the track slider.
