John Deere 5103/5203/5303 Tractor Technical Manual, 2002 (P/N TM4829)

John Deere Technical Manual P/N TM4829, English edition dated 18NOV02, covers repair, operation, testing, and adjustment of the 5103, 5203, and 5303 tractors.

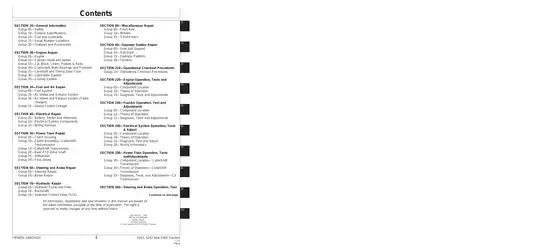

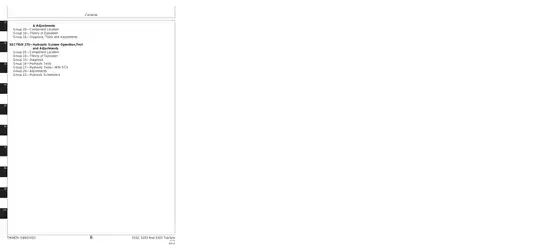

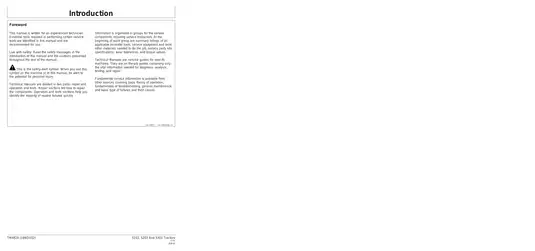

Searchable Text, Bookmarks, and PDF Contents

Search and diagram detail: Body text is searchable, and embedded bookmarks provide access to service groups and individual procedures. Some image-based figure labels are outside text search. Small connector numbers and wire codes in the wide electrical schematics are readable when enlarged.

The ZIP download contains one printable, 876-page PDF. This total includes the original cover, foreword, contents, index, and section-ending blank pages.

Engine, Drivetrain, and Tractor-System Service

The following selected coverage highlights summarize the main workshop areas. Additional topics include sealant application guidance and engine break-in procedures.

• Engine repair: Engine removal and installation, cylinder-head and valve work, liners, pistons, connecting rods, crankshaft bearings, camshaft, timing gears, lubrication, and cooling-system service.

• Fuel and air systems: Fuel-tank, filter, and primer-pump service; speed-control linkage repair; and Schwitzer turbocharger removal, inspection, installation, prelubrication, and boost-pressure testing.

• Clutch and drivetrain: Tractor splitting, dual-clutch overhaul and finger adjustment, CollarShift transmission disassembly, gear and range shafts, rear PTO drive, differential setup, and planetary final drives.

• Hydraulics: Tandem gear-pump repair, pickup screen and filter/manifold service, rockshaft linkage, relief valves, float SCV overhaul, flow and leakage testing, and position/draft-control adjustment.

• Electrical diagnosis: Starting, charging, lighting, gauges, PTO warning, safety switches, relays, and trailer-outlet circuits, supported by wiring schematics, component locations, connector service, and test-point charts.

• Steering and brakes: Steering-valve and cylinder repair, hydraulic wet-disk brake inspection, brake-valve overhaul, bleeding, steering leakage tests, and toe-in adjustment.

• Axle and operator station: 2WD front-axle repair, spindle bushings, wheel bearings, three-point hitch links, seat support, ROLL-GARD, operator platforms, and fenders.

This manual is written for experienced technicians and assumes established service knowledge, suitable measuring equipment, and the tools specified for the work.

From Operational Checkout to Fault Diagnosis

Separate repair and operation-and-test sections support both fault finding and component work. The operational checkout provides a starting point for examining engine, fuel, electrical, hydraulic, clutch, transmission, differential-lock, brake, steering, rockshaft, and SCV functions before choosing a repair section.

Engine symptoms: Diagnostic charts address hard starting, irregular running, smoke, low power, excess fuel or oil consumption, low oil pressure, and cooling faults. Dedicated procedures cover compression, cooling-system pressure, radiator-cap pressure, injection timing, valve clearance, and turbocharger boost.

Tractor-system faults: Directed tests distinguish clutch drag or slip, shifting and PTO problems, steering loss, brake leak-down, slow hydraulics, pump noise, rockshaft drift, and SCV leakage. This organization connects a reported symptom with the relevant checks rather than treating component replacement as the starting point.

Service groups identify applicable tools, equipment, materials, service kits, inspection limits, and tightening data alongside the associated work.

3029 Engine Variants and Component-Manual Requirements

The engine sections distinguish the naturally aspirated 3029D used in the 5103 and 5203 from the turbocharged 3029T used in the 5303. Differences include injection timing, piston-pin dimensions, and straight versus tapered connecting-rod pin ends.

Step-by-step procedures extend into cylinder-head disassembly, liner installation, piston and connecting-rod assembly, crankshaft inspection, timing-gear installation, and final assembly.

Supplementary references: The cover identifies CTM125 for complete 3029 engine service and CTM77 for alternator and starting-motor service. The engine and fuel-system chapters also contain CTM8 references, including injection-pump, nozzle, and governor repair. These component manuals are separate publications and are not included in this download.

Front-plate gasket compatibility: The timing-gear section distinguishes earlier and later engine oil-groove castings. It explains why the later gasket suits both designs while the earlier gasket does not fit the revised cylinder-block design.

CollarShift Configuration and 2WD Axle Work

The drivetrain procedures address separate traction and PTO clutch controls, transmission shaft assemblies, differential cone-point and backlash adjustment, and final-drive bearing setup.

Ground-speed tables distinguish 5103/5203 tractors with 14.9-28 rear tires from the 5303 with 16.9-28 rear tires. Front-axle repair procedures specifically cover the 2WD axle. Related tractor sections describe hydrostatic steering and Category II hitch controls.

The clutch instructions identify possible clutch-disk and shaft-spline damage from misalignment. Installation sections also warn that drawing the engine, clutch housing, transmission, or differential housings together with fasteners can damage the mating assemblies.

Follow the manual’s tractor-support, lifting, electrical-isolation, and hydraulic-pressure precautions when working on heavy assemblies or pressurized systems.

Workshop Drawings and Specified Tools

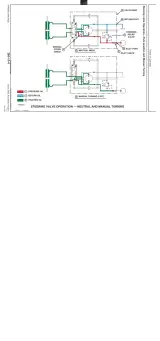

Illustrated references include the Cylinder Head—Exploded View, Schwitzer Turbocharger Cut-Away View, and Brake Valve Cross Section. Drivetrain and diagnostic graphics include CollarShift Transmission—Gear Shift Power Flow, Starting System Operation—Normal, and hydraulic circuit-symbol sheets.

Connector locations, wire-color identification, exploded assemblies, and electrical test-point drawings supplement these views.

Engine and clutch tools: Listed equipment includes the JDE83 flywheel turning tool with JDE81-4 timing pin, JD-254A gear timing tool, JDG1337 clutch repair fixture, and JDG1375 clutch-finger height gauge.

Electrical and hydraulic equipment: The manual identifies the JDG155 electrical repair tool kit and hydraulic test equipment including the JT05469 flowmeter and JT05473 pressure gauge. Reference data covers fluids, pressures, flow, electrical measurements, clearances, wear limits, clutch-disk inspection, and component torque specifications.

Selected Connecting-Rod Inspection Clearances

For the straight pin-end 3029D connecting rod, specified piston-pin-to-bushing oil clearance is 0.010–0.042 mm. The tapered pin-end 3029T specification is 0.007–0.043 mm.

The inspection section lists a 0.10 mm wear tolerance for both versions and provides separate bushing-bore and piston-pin dimensions for each engine type.
