Hyundai Elantra HD 2.0L 2007–2010 Service Manual Set

The year-specific files bring together the applicable mechanical procedures, electrical information, and diagnostic data. Selecting the matching year's file helps avoid treating changed connector assignments or fault criteria as interchangeable.

Coverage limits: The 2010 file includes the A4CF2 DTC table but omits the separate code-by-code troubleshooting chapters provided in the earlier files. Internal automatic-transaxle disassembly and valve-body disassembly/reassembly refer to a separate A4CF2 overhaul manual, which is not included.

Searchable Service Text and Wiring Diagram Detail

Search, bookmarks, and diagram labels: All four PDFs have searchable service text and system-level bookmarks. Labels embedded in diagram images are not consistently searchable. Small wiring labels require zooming, and some remain soft or difficult to read at higher magnification.

The ZIP contains 7,579 pages across four printable English PDFs and is 272.84 MB. A short text note and a legacy PDF-reader installer are also bundled.

Engine, Drivetrain, and Vehicle-System Service

These selected topics illustrate the workshop coverage rather than reproduce the full contents. Other examples include sunroof leak troubleshooting and immobilizer key registration.

• Engine repair: Step-by-step procedures for timing-belt replacement, valve-clearance adjustment, cylinder-head and cylinder-block work, engine removal, and cooling and lubrication service.

• Automatic transaxle: ATF inspection and replacement, torque-converter stall testing, hydraulic-pressure testing, transaxle removal and installation, shift-cable adjustment, and control-component service.

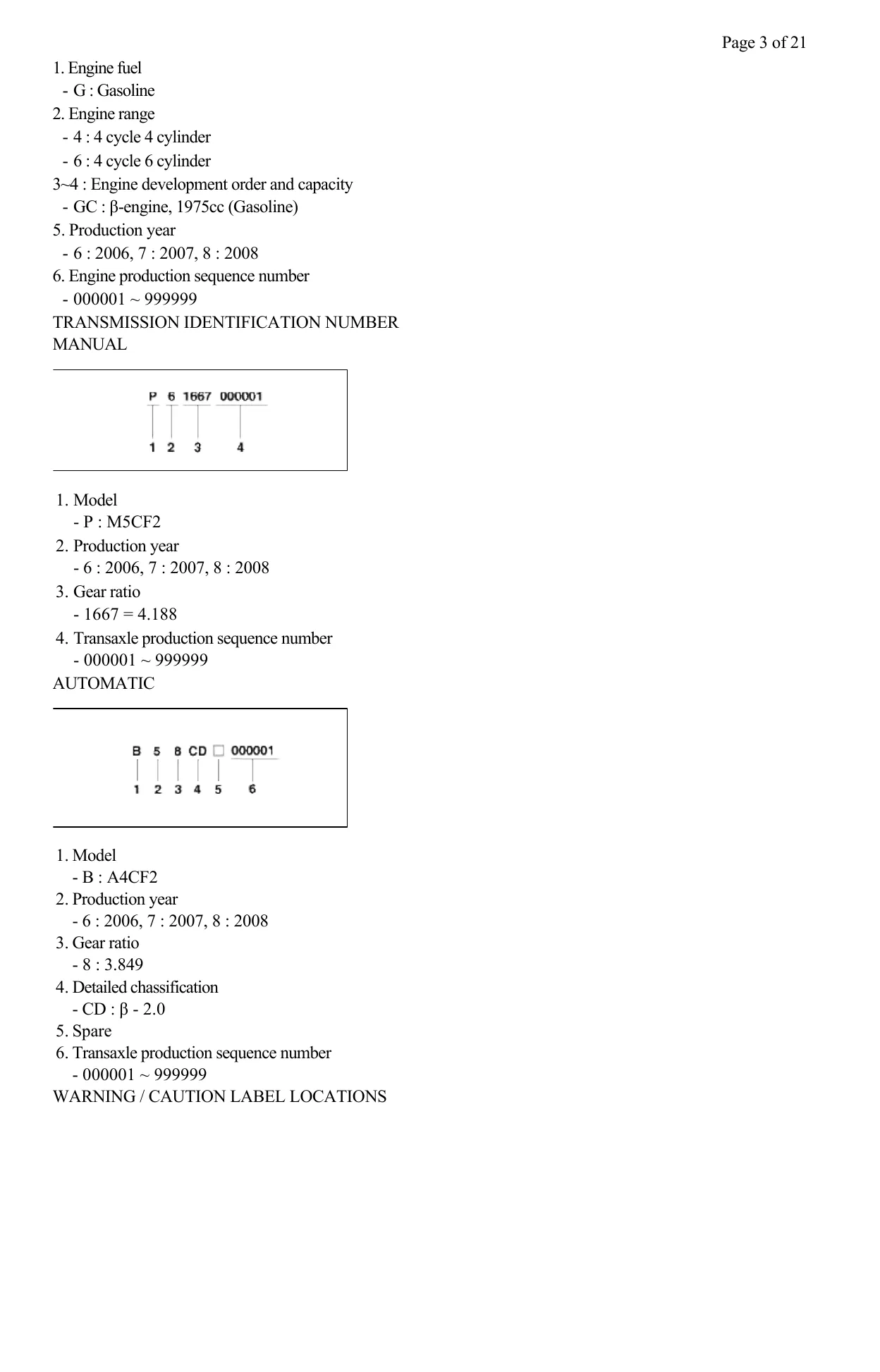

• Manual transaxle and clutch: M5CF2 removal and installation, shift-control service, clutch-cover and disc inspection, and clutch hydraulic-system repair.

• Fuel and engine management: Fuel-pressure testing, pump and injector service, CVVT control checks, sensor testing, and model-year-specific engine fault diagnosis.

• Brakes and chassis: Disc and drum brake service, ABS and stability-control diagnosis, electric power steering, driveshafts, wheel hubs, suspension components, and wheel alignment.

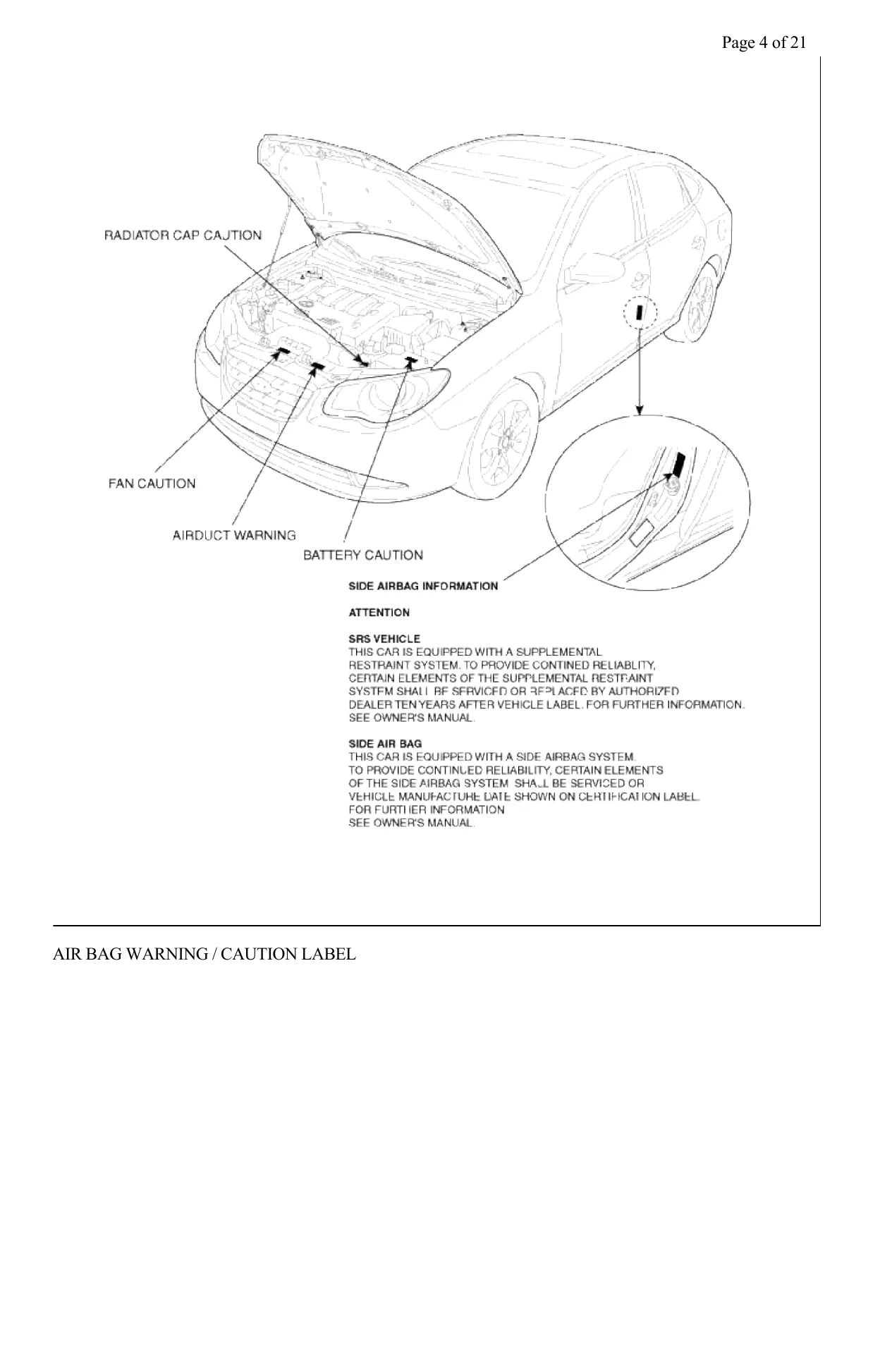

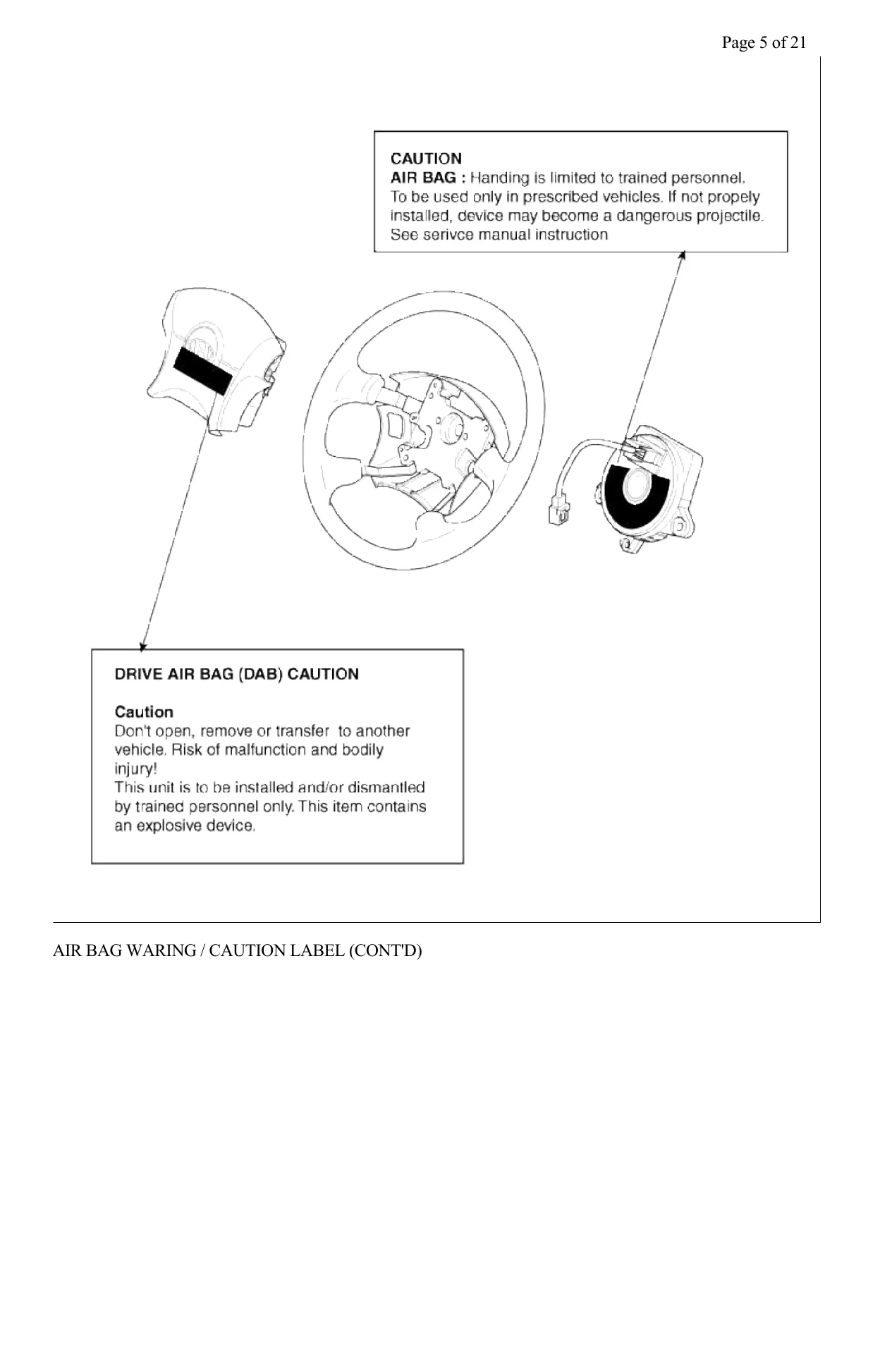

• Electrical and restraints: Starting and charging-system tests, body-control circuits, connector information, airbag-system service, and occupant-classification components.

• Climate control and body: Refrigerant recovery and evacuation, compressor service, heater and blower repair, actuator checks, and interior and exterior component removal.

The procedures suit technicians and experienced DIY owners equipped for scan-tool diagnosis, electrical testing, hydraulic-pressure checks, and supported drivetrain removal. Airbag work has separate training requirements.

Engine Inspection, Timing, and Internal Repair

The engine chapters extend from compression testing and mechanical-lash-adjuster inspection to cylinder-head disassembly, valve inspection, piston and connecting-rod work, and crankshaft-bearing selection. Timing-belt procedures include tension adjustment and timing-mark illustrations.

Cooling-system coverage includes coolant refilling and bleeding, water-pump replacement, thermostat inspection, and radiator service. Lubrication procedures address the oil pump, oil screen, oil pan, and related sealing work.

A4CF2 Construction and Hydraulic Diagnosis

The construction material explains the ultra-flat torque converter and long-travel damper clutch, parachoid oil pump, hydraulic centrifugal pressure-balance pistons, variable line-pressure control, and disc return spring. Operating descriptions cover the underdrive, overdrive, and reverse clutches; low/reverse and second brakes; one-way clutch; dual planetary gearsets; and cam-type parking mechanism.

Hydraulic illustrations include the N/P circuit, D-range first-through-fourth circuits, Reverse and Low circuits, and a hydraulic-circuit structure view. The pressure-port layout, standard hydraulic-pressure chart, friction-element application chart, and stall-test diagnosis table connect operating symptoms with the affected hydraulic or mechanical elements.

Two exploded component views identify 69 numbered parts, including the converter housing, transfer gears, differential, valve body, speed sensors, accumulator, and clutch/brake assemblies.

Electronic Control and Model-Year Diagnostics

The automatic-transaxle information describes the PCM-integrated Siemens TCM, CAN communication with the ECM and instrument cluster, flexible printed-circuit harness, PCSV-A through PCSV-D, on/off solenoid, and VFS line-pressure solenoid.

The 2007 A4CF2 section has a 24-code table and 22 fault-isolation chapters. Its P0716 and P0742 entries differ from the later 23-code table, which includes P0721; the 2008 and 2009 files also supply their corresponding diagnostic chapters.

Depending on the fault, these chapters provide circuit schematics, signal waveforms, scan-tool readings, actuator checks, terminal inspections, power and signal-circuit tests, component tests, and repair verification. These connections help distinguish harness or connector faults from a failed sensor, solenoid, or control module.

Engine-control diagrams, ABS circuit diagrams, EPS schematics, and body-control wiring extend electrical diagnosis beyond the transmission. The later files also contain TPMS service information.

Removal Equipment and Repair Cautions

A4CF2 removal and installation reference the 09200-38001 engine support fixture and 09624-38000 crossmember supporter. Hydraulic-pressure testing lists tools 09452-21500 and 09452-21000. Shift-control procedures include cable adjustment and the Hi-Scan Pro value reset following automatic-transaxle replacement.

The solenoid procedures flag O-ring damage during installation, which can compromise sealing. The ATF-level discussion explains how underfilling or overfilling can introduce air or foam, disrupt hydraulic pressure, and affect clutch and brake operation.

Transaxle removal requires secure engine and crossmember support. Stall and pressure tests involve vehicle restraint and hot-fluid precautions.

Clutch, Chassis, and Climate-Control Work

The manual-transaxle material covers oil-level inspection, lubricant requirements, differential oil seals, and shift-control components. Separate clutch procedures address the master cylinder, release cylinder, pedal, cover, and disc.

Chassis chapters distinguish conventional brake service from ABS and stability-control diagnosis. They also cover steering-column and steering-gear removal, front struts, rear suspension arms, hub and driveshaft work, and alignment checks.

The climate-control sections address refrigerant service equipment, compressor oil, condenser and receiver/drier replacement, heater-unit removal, and temperature, mode, and intake actuators. Body-electrical sections include lighting, windows, locks, wipers, and immobilizer functions.

Valve-Clearance and Transaxle Torque Preview

For the 2007 2.0L engine, the cold valve-clearance specifications are 0.20 mm intake and 0.28 mm exhaust at a coolant temperature of 20°C.

The 2007 A4CF2 torque table specifies 35–45 Nm for the oil drain plug and 130–140 Nm for the differential drive gear.
