Jaguar EPOCHLOCK 056/055 Serger Sewing Machine Service Manual
Service and repair guide for Jaguar EPOCHLOCK models 056 and 055. Documents operation, maintenance, and troubleshooting procedures. Includes diagrams and part lists. PN 82170.
Manual Preview

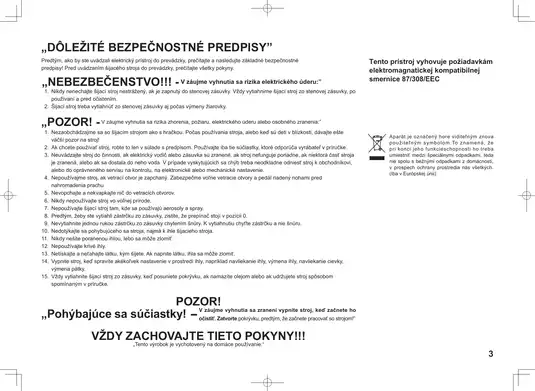

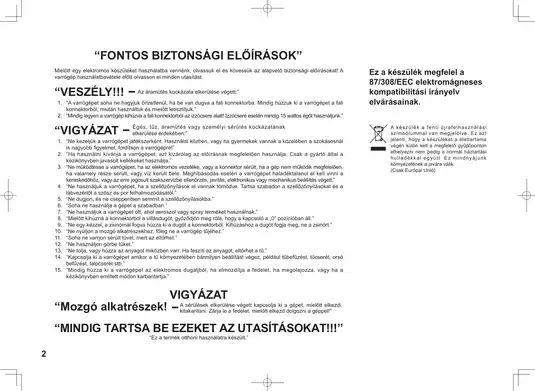

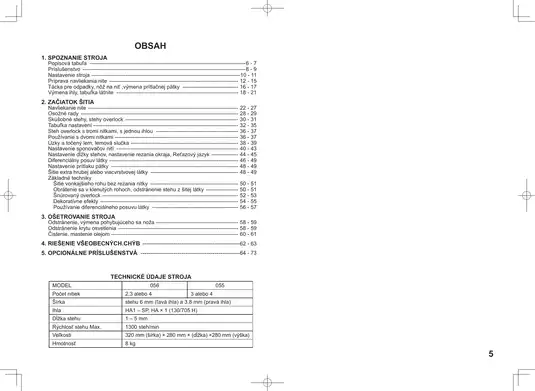

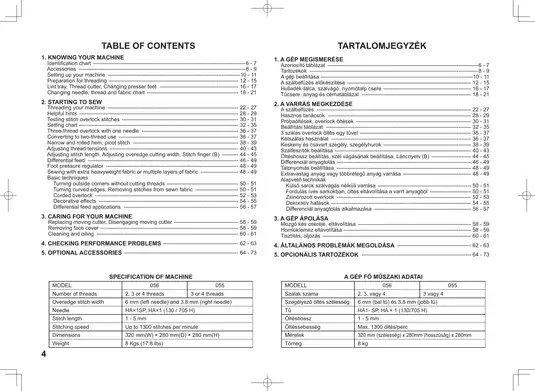

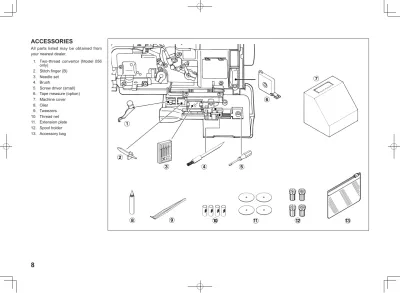

Sample pages from the Jaguar EPOCHLOCK 056/055 Serger Sewing Machine Service Manual manual
Purchase & Download
Models Covered & Key Technical Specifications
Jaguar EPOCHLOCK 056/055 Serger Sewing Machine User Manual & Service Guide Documentation-Set
| User Manual & Service Guide: Jaguar EPOCHLOCK 056/055 // System-Identifier: Serger Sewing Machine / Household Logic // Maintenance-Category: User Manual & Service Guide. | Identifier | Technical-Path | Architecture |
|---|---|---|---|
| Machine Model | EPOCHLOCK 056/055 | Serger Sewing Machine | |
| Threading Sequence | Lower Looper - Upper Looper - Needle | Threading Process | |
| Stitch Length Control | 1-5 mm | Stitch Adjustment | |
| Stitching Speed | Up to 1300 stitches per minute | Maximum Throughput | |
| Dimensions | 320 mm(W) x 280 mm(D) x 280 mm(H) | Machine Footprint | |
| Weight | 8 Kgs (17.6 lbs) | Unit Mass |
Document Overview
This comprehensive manual details the operation, maintenance, and repair of the Jaguar EPOCHLOCK 056/055 Serger Sewing Machine. It covers essential procedures for proper usage and upkeep, ensuring optimal performance and longevity of the machine. The document is organized into sections that systematically guide users through various aspects of the machine's functionality.
Introduction to the Machine
This section provides an identification chart and lists all accessories included with the machine. It also covers the initial setup procedures, including preparing the machine for threading, foot control connection, power/light switch operation, opening the front cover, and working table.
Starting to Sew
Detailed instructions on threading the machine are provided, along with helpful hints for a smooth sewing experience. This includes guidance on testing stitch overlock stitches, setting up different stitch types, adjusting thread tensions, stitch length, and overedge cutting width.
Caring for Your Machine
This part of the manual outlines the procedures for cleaning and oiling the machine to keep it in optimal working condition. It also details how to replace the moving cutter, disengage it, and remove the face cover. Regular maintenance is emphasized to ensure the machine's longevity.
Troubleshooting Common Issues
A section dedicated to checking and resolving performance problems is included. It lists probable causes for common issues such as irregular stitches, breaking needles, puckering, wavering, skipped stitches, and breaking threads, along with suggested corrections.
Optional Accessories and Features
Information on optional accessories like the blind hem foot, elasticator, piping foot, gathering/shirring foot, and needle threader is provided. These accessories enhance the machine's versatility and allow for specialized applications.
Technical Specifications
The manual concludes with a detailed specification table for the machine, including model numbers, number of threads, needle types, stitch length, dimensions, and weight. This section offers a quick reference for the machine's technical capabilities.
Professional Workshop Service Manual & Technical Specifications
Jaguar EPOCHLOCK 056/055 Serger Sewing Machine Manual: Operation, Maintenance & Repair
Calibration-Scope: Covers a range of sewing machine models and functions. // System-Identifier: Serger Sewing Machine / Household Use Logic // Maintenance-Category: Operational Guide & Service Documentation.
| Identifier | Technical-Path | Architecture |
|---|---|---|
| Model Numbers | 056, 055 | EPOCHLOCK Serger Series |
| Manual Type | Instruction Manual / Service Manual | Sewing Machine Documentation |
| Language | English, Hungarian, Slovak | Multilingual Support |
| Page Count | 75 Pages | Document Volume |
| File Size | 5.62806 MB | Digital Document Size |
This comprehensive manual provides detailed guidance for the operation, maintenance, and repair of the Jaguar EPOCHLOCK 056/055 Serger Sewing Machine. It is designed to assist both new and experienced users in understanding and utilizing the full capabilities of their machine. The document begins with essential safety instructions to ensure safe operation. It then proceeds to introduce the user to the various parts of the machine through clear identification charts and diagrams.
The manual systematically covers starting procedures, including threading the machine and performing test stitches. It details various sewing techniques, such as narrow and rolled hems, picot stitch, corded overlock, and decorative effects, explaining how to achieve professional-looking results. Special attention is given to differential feed applications for minimizing puckering and wavering, and for creating gathers. The document also includes a section on caring for the machine, which outlines cleaning and oiling procedures to maintain its performance.
Troubleshooting common problems is made easy with a dedicated section that lists potential issues, their probable causes, and recommended corrections. Furthermore, the manual describes optional accessories that can enhance the machine's functionality, such as blind hem feet, elasticators, and various specialized presser feet. The technical specifications of the machine are also provided for reference.
Proper threading is crucial for optimal stitch quality, and the manual offers step-by-step instructions for threading different parts of the machine, including the lower looper, upper looper, and needles. It also covers the use of a needle threader for convenience. Adjusting thread tensions and stitch length are explained in detail to ensure the best stitch formation for various fabrics and applications. The manual emphasizes the importance of using the correct needle, thread, and fabric combinations as outlined in the provided charts.
