Brother MFC-7420/7820N & DCP-7010/7020/7025 Service Manual 2004 (P/NSM-FAX036)

• 326-page PDF, dated December 2004 and marked with Brother document code SM-FAX036 (1). Coverage includes MFC-7420 and MFC-7820N for U.S./Canada, Europe, and Asia/Pacific; DCP-7020 for U.S./Canada; DCP-7010 for Europe and Asia/Pacific; and DCP-7025 for Europe.
• Maps disassembly and reassembly through a single factory access flowchart covering ADF/CIS assemblies, the paper path, fixing and laser units, PCB/power systems, motors, solenoids, and sensors.
• Adds model-specific PCB access, connector handling, detailed harness-routing views, lubrication points, and a component-specific screw tightening torque table.
• Details main-PCB replacement setup: flash-ROM firmware loading, EEPROM initialization and destination customization, panel and sensor checks, CIS white-level/scan-area acquisition, serial-number entry, and laser-scanner adjustment-value input.
• Provides maintenance-mode tests for the ADF, LCD, control panel, sensors, print quality, paper feed/eject operation, scan start/end positions, equipment logs, error codes, firmware switches, received-fax transfer, and transmission-log output.
• Includes cause/check/remedy charts for paper feed, power, main motor, high voltage, fixing, laser, and main PCB faults, plus 24 labeled image-defect paths, incorrect printout, MFC-7820N network, control-panel, and fax troubleshooting.
• Supplies a full PCB wiring diagram and region-specific NCU and power-supply circuit diagrams with connector, pin, and signal identification for electrical fault tracing.

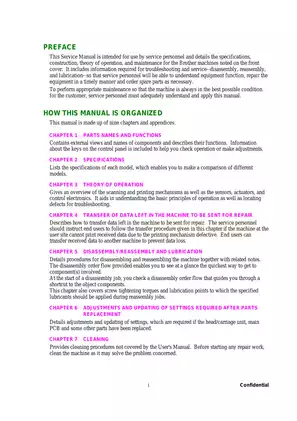

Brother wrote this factory service manual for service personnel. It assumes familiarity with maintenance mode, electrical testing, mechanical assemblies, and PC-based Brother service tools. The focus is fault isolation, component-level repair, reassembly, and settings restoration after parts replacement; it is not a beginner repair guide.

Regional Builds and Model Differences

The specification tables separate the regional and feature builds. The MFC-7420 is a 16 MB, GDI-based G3 machine, while the MFC-7820N combines 32 MB memory, Super G3 faxing, PCL 6/BR-Script 3 support, and standard 10/100Base-TX Ethernet. The DCP-7010 and DCP-7020 use the 16 MB GDI configuration; the European DCP-7025 uses the 32 MB PCL 6/BR-Script 3 configuration. ADF procedures apply to both MFC units and the DCP-7020/7025, while the DCP-7010 is the non-ADF build.

Regional electrical differences are identified where they matter. The Machine Components diagram distinguishes the 8-pin U.S., 9-pin Canadian, and 12-pin European NCU connections. Appendix 6 provides separate NCU circuit sheets for each MFC model in U.S./Canadian and European form, plus the U.S./Canadian 100 V and European 200 V power-supply PCB circuits. It is not a universal circuit-diagram set for every Asia/Pacific board version.

Repair Setup, Service Tests, and Fault Isolation

After main PCB replacement, the setup sequence covers update-data loading, EEPROM initialization and customization, panel and sensor verification, CIS white-level and scanner-area setup, serial-number restoration, and laser-scanner adjustment-value input. The serial-number appendix decodes production year/month fields and identifies the X- and Y-delay fields on the laser-unit label. Firmware and ID operations require an update file, BHL2-Maintenance Printer driver, FILEDG32.exe, and brmainte.EXE; the procedures are in the PDF, but those service files are not included.

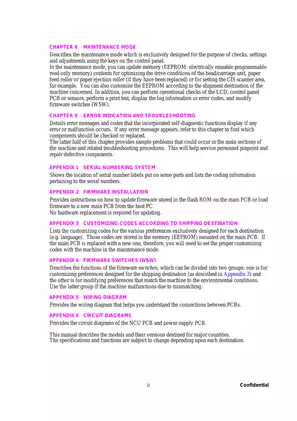

Maintenance mode goes beyond simple error display. It can print scanning-compensation data and firmware-switch settings, test the ADF and paper path, check the LCD/control-panel PCB and up to nine sensors, set scan start/end positions, acquire CIS reference data, and display lifetime logs. Those logs include jam history, drum and toner changes, page counts, the last ten machine errors, and the last three communications errors. The firmware-switch appendix covers 51 groups for dial/PABX behavior, tone detection, fax protocol and modem settings, scanning, USB behavior, and regional or environmental configuration; non-fax applicability is marked at selector level.

Troubleshooting is arranged as diagnostic tables with probable cause, check, result, and remedy columns. It covers LCD machine errors and fax communication codes before moving into paper-feed faults, power and drive failures, fixing and laser faults, print defects, networking, the control panel, and fax operation. Routine drum-unit and toner-cartridge cleaning is referred to the separate User's Guide rather than repeated here. Appendix 3 likewise explains EEPROM destination customization and shows U.S./Canada examples, but it does not provide a full country-by-country code matrix.

Drawings and Repair Cautions

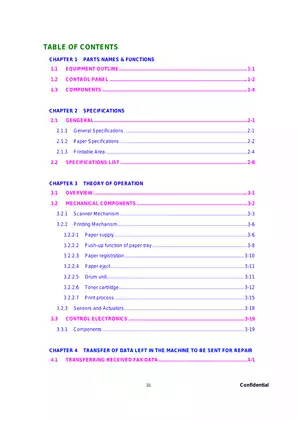

Named technical views include the Machine Components control-electronics map, Scanner Mechanism and CIS-drive view, Paper Supply/Paper Registration path, Print Process diagram, Disassembly Flowchart, and the full Wiring Diagram with its NCU and power-supply circuit sheets. The fixing-unit section warns that the separation claws can damage the heat roller during removal and shows the required halogen-heater and thermistor orientations for reassembly. It also cautions that an incorrect four-digit destination code will make the machine malfunction.

Disconnect AC power and the telephone line before PCB or internal repair work, and allow the fixing unit to cool before handling it; the manual identifies both hazardous-voltage and hot-surface areas.
