Brother PR600 Embroidery Machine Service Manual 2003 (P/N PR600SM)

• October 2003 service manual for the Brother PR600 embroidery system, supplied as a 295-page PDF covering disassembly, assembly, adjustment, electronic troubleshooting, and maintenance.

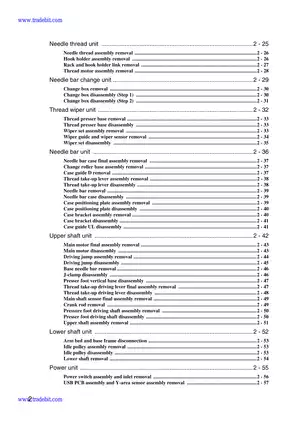

• Needle bar and shaft repair covers removal and reassembly of the needle bar case, upper and lower shaft units, and needle bar change box.
• X/Y feed-unit procedures cover carriage bearings, guide shafts, and drive belts, with belt-tension adjustment, hoop-sensor calibration, and XY-guide origin adjustment.
• Thread cutting and handling coverage includes cutter, picker, and wiper disassembly, movable-knife origin adjustment, cutter-knife engagement testing, and automatic needle-threader alignment.
• Main board and panel board test modes support motor and sensor checks, touch-panel calibration, and media-interface testing.
• Symptom-based troubleshooting charts address no-power/no-display conditions, thread breakage detection failures, encoder errors, and abnormal hoop movement.

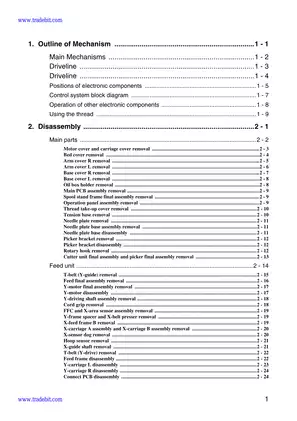

Mechanical and Electrical System Breakdown

The driveline illustrations trace the relationship between the upper shaft, needle bar crank rod assembly, and pulley system, including the lower-shaft drive to the rotary hook assembly. Separate disassembly and assembly chapters take repair work down to the change camshaft, differential gears, thread take-up levers, and presser-foot drive—not just removal of covers.

Exploded Feed unit and Needle bar unit views show how the assemblies fit together. Reassembly pages provide fastener identification, component-specific torque tables, lubrication notes, and cross-references to final adjustments. The driving jump assembly also has a positioning-pin setup procedure.

The upper-shaft instructions flag the encoder as vulnerable to contact damage. Cutter/picker installation has a separate caution for the picker link, which can bend as it passes through the arm bed.

On the electronics side, Positions of electronic components locates the Main PCB and Power PCB, including power-board assemblies designated 100 and 200. The Control system block diagram connects these boards to automated needle threading, hoop identification, and thread-quantity sensing for upper and lower thread breakage detection.

Diagnostic Tests & PCB Replacement

A/D and sensor-test screens document supply monitoring, frame-sensor readings, encoder states, and main-shaft angle. Main-board replacement requires picker over-pulse setup and frame-sensor adjustment. A separate barcode reference explains needle-bar selection when adjustment data displays “NO DATA.”

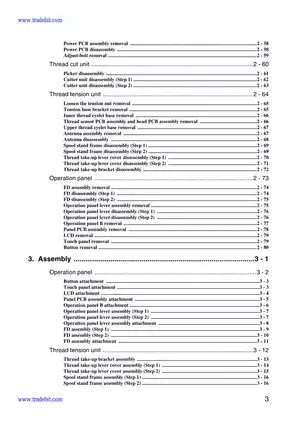

Operation-panel repair extends to the LCD, backlight inverter, switch PCB, and floppy disk drive. The test menus cover embroidery-card and CompactFlash slots, along with USB communication. Electrical troubleshooting uses connector and pin checks, voltage and resistance measurements, and substitution of known-good assemblies rather than component-level PCB repair.

Adjustment Data, Wiring & Maintenance

The Adjustment flow chart identifies interdependent settings for the needle bar mechanism, presser foot, and threader. It explains why later settings need to be revisited after an earlier adjustment changes. Supporting data covers mechanical clearances, belt-deflection tests, and cutting-knife engagement loads.

Special Instructions of Wiring covers lead-wire routing, grounding points, protective sheets, and connector orientation. The X Feed FFC views document flat-cable positioning through the moving carriage; operation-panel pages address inverter-lead trapping and shielding placement.

Maintenance separates daily owner cleaning and oiling from scheduled dealer work and an industrial-use needle-bar lubrication schedule. The charts identify lubrication points and materials, including MOLYKOTE EM-30L and FBK OIL RO 100, with checks for belt tension and lower-shaft thrust play.

Exploded repair views are included, but this publication is not a separate parts catalog. Movie icons refer to the CD-ROM edition; video files are not included in this PDF.

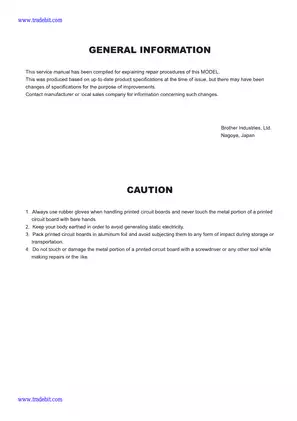

Safety Notice: Because adjusting synchronized mechanical timing and handling high-voltage circuit boards carries inherent risks of personal injury or permanent machine damage, always ensure strict workshop safety protocols are followed. If you lack proper mechanical or electrical training, consult a qualified technician before attempting internal power supply repairs or deep disassembly of the feed unit.
